• Model NO.：DFQ-100W
• Drilling Way：Rotary
• Type：Four Wheels
• Voltage：380V
• Warranty：1 Year, 1year After The Machine Leaves Factory
• Motor Power：24kw
• Transport Package：Standard; Wooden Cases
• Specification：3200*1770*2050 mm
• Trademark：DEFY
• Origin：Henan, China
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DFQ-100W Drilling Way Rotary Type Four Wheels Voltage 380V Warranty 1 Year, 1year After The Machine Leaves Factory Motor Power 24kw Transport Package Standard; Wooden Cases Specification 3200*1770*2050 mm Trademark DEFY Origin Henan, China Production Capacity 50 Sets Per Month

Product Description

Small pneumatic & hydraulic mini portable drill rigs for mining



 Application:

It is widely used for water well drilling,geothermal air conditioning project and other boreholes,

especially applicable to mountain area and rock formation water engineering.

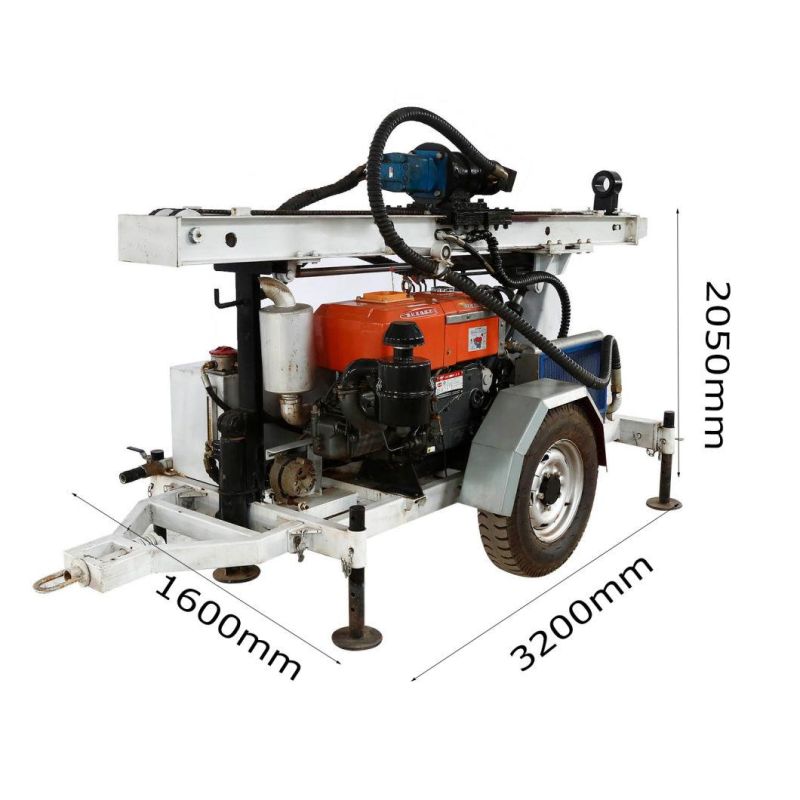

 Model DFQ-100W Trailer Mounted Water Well Drilling Rig

*100m drill depth

*DTH drill rools,Fastest drilling rig for Rocky areas

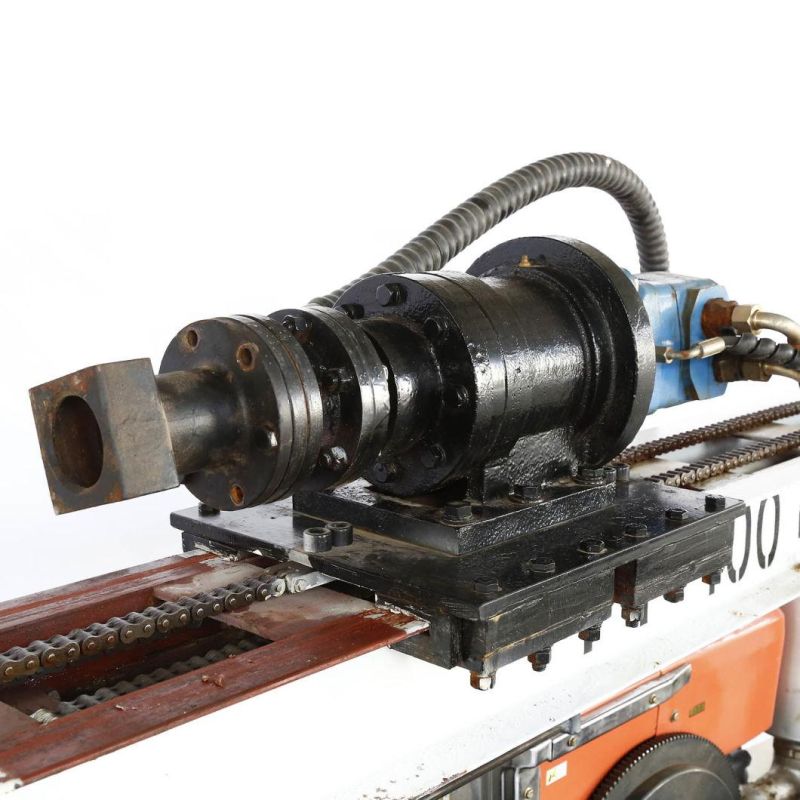

*Top drive,Fully Hydraulic drilling

*Can work with both Mud pump and Air compressor

Features of DFQ-100W drilling machine with 2 wheels
1. Fully hydraulic controlling system,highly automated,high working efficiency,saving labor force.

2. Powerful cylinder,strong propulsion and lifting force for drilling deep holes.

3. Innovative embedded idler pulley structure,carriage stroke is increased to handle the drill pipes more easily.

4. Centralized control of the hydraulic control console, convenient to operate.

5. Chassis can be wheels,crawler or truck,as per your need.

6. Hammer rotary drilling method,making it more easily and efficiently to drill Rock ground.


Product Parameters

Item	Parameter
Drilling caliber	100m
Max. drilling depth	105-150mm
Diameter of drill pipe	Φ60,Φ63.5
Gas consumption	15-18 m³/min
Power	24Kw/2300rpm
Walking speed	0-1.5 Km/h
Leg cylinder stroke	600 mm
Propulsion	5.0 tonf
Lifting force	8.5 tonf
Speed of spindle	Fast 135 rpmSlow 91 rpm
Rotary torque	1050N.m
Weight	2200 Kg
Dimension	3200*1770*2050 mm







Other related Model

Model	Movement	Borehole Diameter	Drilling Depth
DFQ-100	Crawler	105~150mm	100m
DFQ-100W	Wheel trailer	105~150mm	100m
DFQ-150	Crawler	105~203mm	150m
DFQ-150W	Wheel trailer	105~203mm	150m
DFQ-200	Crawler	105~203mm	200m
DFQ-200W	Wheel trailer	105~203mm	200m
DFQ-250	Crawler	105~254mm	250m
DFQ-300	Crawler	115~305mm	300m
DFQ-400	Crawler	115~400mm	400m

DFQ Series Working Site



Service from Zhengzhou Defy Company



* One year quality guarantee



*Spare Parts are available at factory price



* Quick response by professional engineers and sales team



* Face-to-face training in clients' worksite or FREE training in our factory.





Remarks:Our engineer will help to create a complete set of water drilling machine and drilling tools to ensure your direct use when shipping to your site. For more details, please kindly send us an inquiry or contact our sales people by instant messenger. Thank you for your time.
