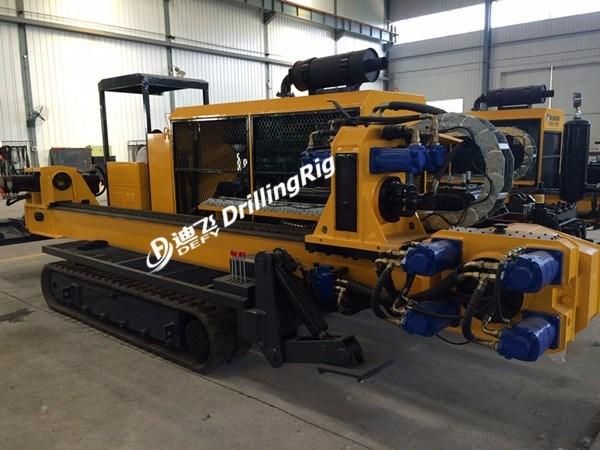

Underground Cable Laying Machine Dfhd-35

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
  • Condition：New
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：>150m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Type：Crawler

Base Info

  • Model NO.：DFHD-35
  • Power of Engine：Cummins 6CTA8.3-C215 160kw
  • Max. Push Capacity：350kn
  • Max. Pull Capacity：350kn
  • Rated Torque：13500n.M
  • Push/Pull System：Rack and Pinion
  • Feeding Stroke：3500 mm
  • Pressure of Hydraulic System：20MPa
  • Traveling Speed：2-2.6 Km,H
  • Dimension (L*W*H)：6000*2250*2400mm
  • Weight：10t
  • Transport Package：Standard Export Package
  • Trademark：DEFY
  • Origin：Henan, China
  • Production Capacity：100 Sets Per Month

Description

Spindle RPMLower 0-48r/minHigh 0-96r/minPush/pull systemRack and pinion6m/min, 12m/min, 24m/minFeeding Stroke3500 mmDiameter of Guide HoleΦ130mmDrilling Angle8°20°Pressure of hydraulic system20MpaTraveling speed2-2.6 km/hDimension (L*W*H)6000*2250*2400mmWeight10t 4. Our Services
Pre-sales service:
Inquiry and consulting support
Sample testing support

After sales service
View our Factory.
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
