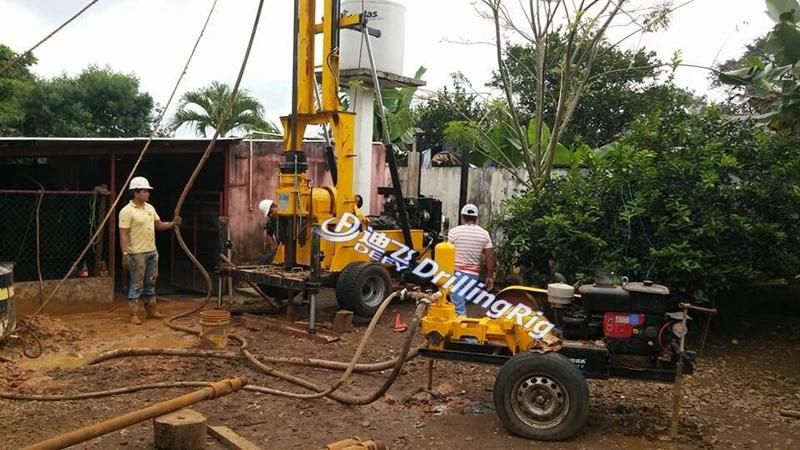

Wholesale High Quality Water Hole Drilling Machine
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.- After-sales Service：7*24 Online Service
- Warranty：12months
- Certification：SGS, CE
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：>300mm
Base Info
- Model NO.：XY-600F
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Rotary Drilling Rig
- Application：Soil, Sand, Mud, Gravel, Hard Rock, etc.
- Drilling Depth：600m
- Drilling Diameter：75-500mm
- Weight：2880kg
- Usage：Ore, Water Well, Coal
- Power Type：Diesel or Electric
- Transport Package：Wooden Case
- Specification：3700*1850*3200mm
- Trademark：DEFY
- Origin：Henan, China
- Production Capacity：100sets,Month
Description
1. Main parameterModel XY-600F Drilling depth 600m Maximum borehole caliber 500mm Minimum borehole caliber 75mm Weight(including diesel engine) 2880kg Unity machine dimension 3700*18500*3200mm 2. Vertical Spindle Spindle rotating speed 30-1050r/min Spindle stroke 560mm 3. Hoist Max. single line lifting capacity 4000kg Reel lifting speed 0.5-1.9m/s 4. Mud pump Type BW-200II Type Horizontal Single Cylinder with 2 purpose 5. Power Diesel engine 50HP Electric 22KW 6. Drilling tower Type Integrated on drilling rig Control system Hydraulic
Attracting Features
1.Hydraulic automatic integrative drilling tower, convenient to operate, time saving and less labor needed.
2.Compact solid wheels-structure, less space occupied and strong trafficability,rapid to turn around.
3.With high strengthen legs, easy and fast to install, stability reliable.
4.Electric start diesel engine, more efficiency in low temperature while the diesel engine is difficult to start.
5.Independent mud pump-BW 200II, high pump flow rate and pressure, high efficiency and easy to maintain.
6.Strong ability, widely used in drilling work and different conditions, such as basalt, granite, other hard rocks etc.
Complete list of drilling rig and drilling tools for your project. For more details, please kindly send us an inquiry or contact our sales people directly. Thank you!
SALES MANAGER : DEBBIE LIU
Attracting Features
1.Hydraulic automatic integrative drilling tower, convenient to operate, time saving and less labor needed.
2.Compact solid wheels-structure, less space occupied and strong trafficability,rapid to turn around.
3.With high strengthen legs, easy and fast to install, stability reliable.
4.Electric start diesel engine, more efficiency in low temperature while the diesel engine is difficult to start.
5.Independent mud pump-BW 200II, high pump flow rate and pressure, high efficiency and easy to maintain.
6.Strong ability, widely used in drilling work and different conditions, such as basalt, granite, other hard rocks etc.
Complete list of drilling rig and drilling tools for your project. For more details, please kindly send us an inquiry or contact our sales people directly. Thank you!
