• Model NO.：DFQ-100W
• Drilling Way：Rotary
• Type：Rotary Drilling Rig
• Application：Water Well, Blast Hole, Geothermal Hole, etc
• Max Drilling Depth：100m
• Fully Hydraulic：Yes
• Drilling Caliber：105-150mm
• Weight：2200kg
• Power：24kw
• Gas Consumption：15~18 M3,Min
• Apply to Rock Hardness：F=6-12
• Qualification：BV, SGS
• Usage：Ore, Blast Hole, Geothermal Hole, Water Well, Coal
• Power Type：Diesel or Electric
• Transport Package：Container
• Specification：3200x1770x2050mm
• Trademark：Defy
• Origin：Henan, China
• Production Capacity：100sets,Month

Basic Info.

Model NO. DFQ-100W Drilling Way Rotary Type Rotary Drilling Rig Application Water Well, Blast Hole, Geothermal Hole, etc Max Drilling Depth 100m Fully Hydraulic Yes Drilling Caliber 105-150mm Weight 2200kg Power 24kw Gas Consumption 15~18 M3/Min Apply to Rock Hardness F=6-12 Qualification BV, SGS Usage Ore, Blast Hole, Geothermal Hole, Water Well, Coal Power Type Diesel or Electric Transport Package Container Specification 3200x1770x2050mm Trademark Defy Origin Henan, China Production Capacity 100sets/Month

Product Description

cheap price small trailer type percussion drilling rig with dth hammerBrief Introduction

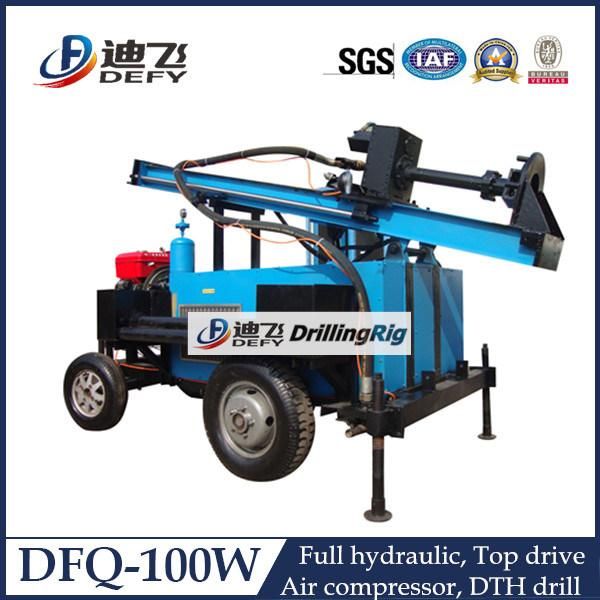

DFQ-100W percussion drilling rig is a new type drilling machine. It can be used in water well, blast hole, borehole, geothermal hole, foundation hole and other drilling work. This machine is especially professional in drilling rocks such as gravel, granite, basalt, with dth hammer drill bits.

Technical Parameter

No.	Item	DFQ-100W
1	Drilling caliber	Φ105-150mm
2	Max. drilling depth	100m
3	Work pressure	1.05-2.0 MPa
4	Gas consumption	15-18 m³/min
5	Impacter	DHD340350
6	Apply to rock hardness	f=6-12
7	Power	24Kw/2300rpm
8	Rotary torque	1050N.m
9	Weight	2200 Kg
10	Dimension	3200x1770x2050mm

Features

1.China famous brand diesel or electric motor can be chosen by customer.

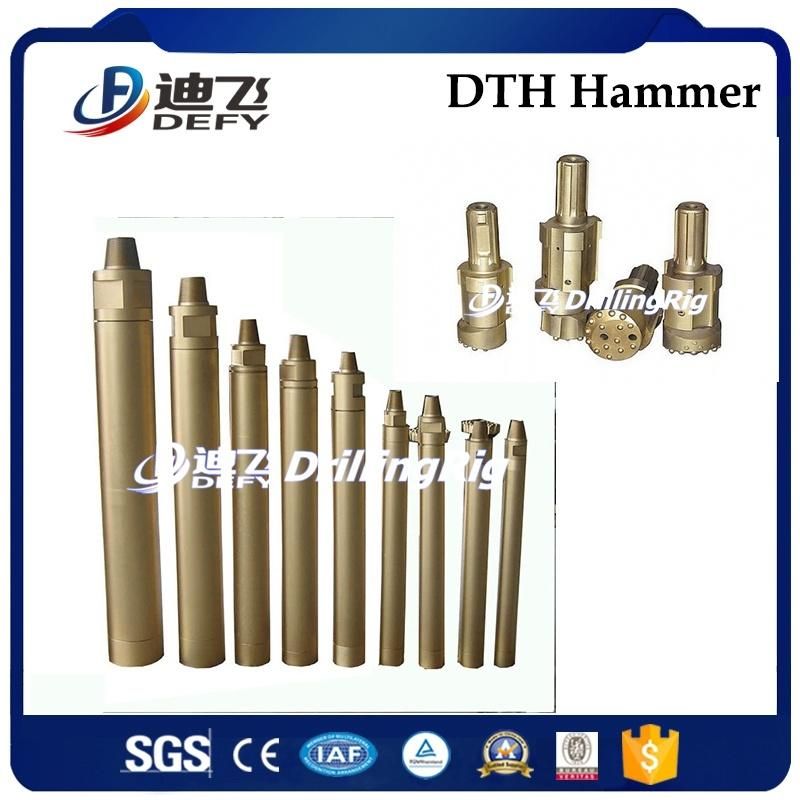

2.HIgh quality dth hammer drill bits equipped, long lifetime and more profit you can earn.

3.Tractor mounted, easily to move around or transportation.

4.Four strong support legs provide high stability in drilling.

5.Mud pump adopted to drill earth, widely drilling range.

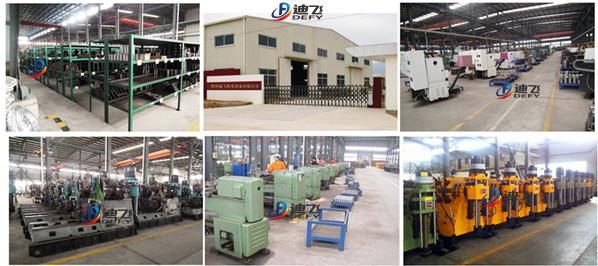

Factory Photos

Still worried about whom you are trading with? Totally manufacture! We have been specializing in manufacturing drill equipment for many year, and our business is larger and larger thanks to the customer's trust and support!
You are welcomed to visit our factory at any time, no matter when you are looking for high quality drill rig, or you placed your order already and you want to check your machine before delivery!
As a professional manufacture, we keep searching and developing, now we have all kinds of drilling machines for different drilling projects. For well, borehole, blast hole, tunnel, horizontal directional drilling, and others with trailer, crawler, tractor and truck type drilling rig. Customized requirement accepted.
We always supply our customer with most suitable machine and best price, no matter small or big business it is. If you are looking for drilling machine, please don't hesitate to contact us.


Contact:
We provide Turn-Key solution for all drilling project. No matter what you need, the professional drill machine, drill parts or just professional suggestion, you can send us an email and we will respond and offer you Complete set of Drilling Machine as per your requirements.
