Drilling Rig

High Quality Electric Gear Head Drilling Machine

Qingdao G & G Machinery Co., Ltd.
  • Certification:GS, CE
  • Structure:Vertical Drilling Machine
  • Layout:Vertical
  • Controlling Mode:Artificial
  • Number of Shaft:3
  • Hole Diameter:<50mm

Base Info

  • Model NO.:Z5040
  • Automatic Grade:Semiautomatic
  • Precision:Normal Precision
  • Material:High Speed Steel
  • Use:Metal Drilling
  • Transport Package:Plywood, or Wood Case
  • Specification:CE,GS
  • Trademark:Wei hao
  • Origin:Shanghai
  • HS Code:845911000
  • Production Capacity:1000 Sets,Month

Description

Basic Info.

Model NO. Z5040 Automatic Grade Semiautomatic Precision Normal Precision Material High Speed Steel Use Metal Drilling Transport Package Plywood, or Wood Case Specification CE/GS Trademark Wei hao Origin Shanghai HS Code 845911000 Production Capacity 1000 Sets/Month

Product Description


Min. Order Quantity: 10 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T

Quick Details
Condition: New
CNC or Not: Normal
Drilling Speed: 50-1450rpm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: ZS5040
Voltage: 380V
Power(W): 1500W
Dimension(L*W*H): 2270X690X1100mm
Weight: 465kgs
Certification: CE After-sales Service Provided: No overseas service provided

Packaging & Delivery
Packaging Details: 2270X690X1100mm 465/615kg
Delivery Detail: 30-45days
High Quality Electric Gear Head Drilling MachineHigh Quality Electric Gear Head Drilling Machine
Specifications
2 speed strong power motor
Automatic tools ejectors
2 steps power feed 0.1-0.2mm/rev
Drilling, tapping

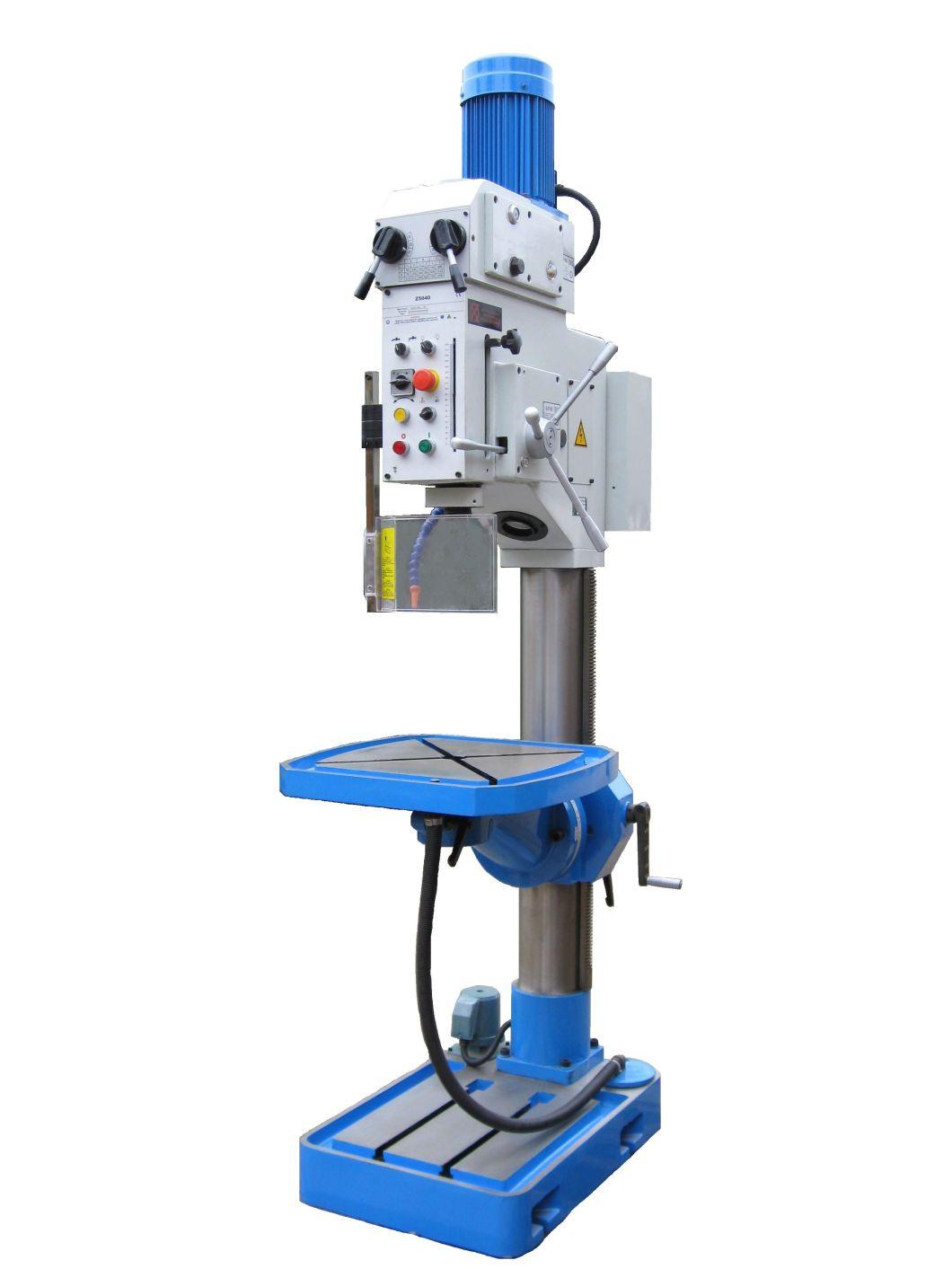

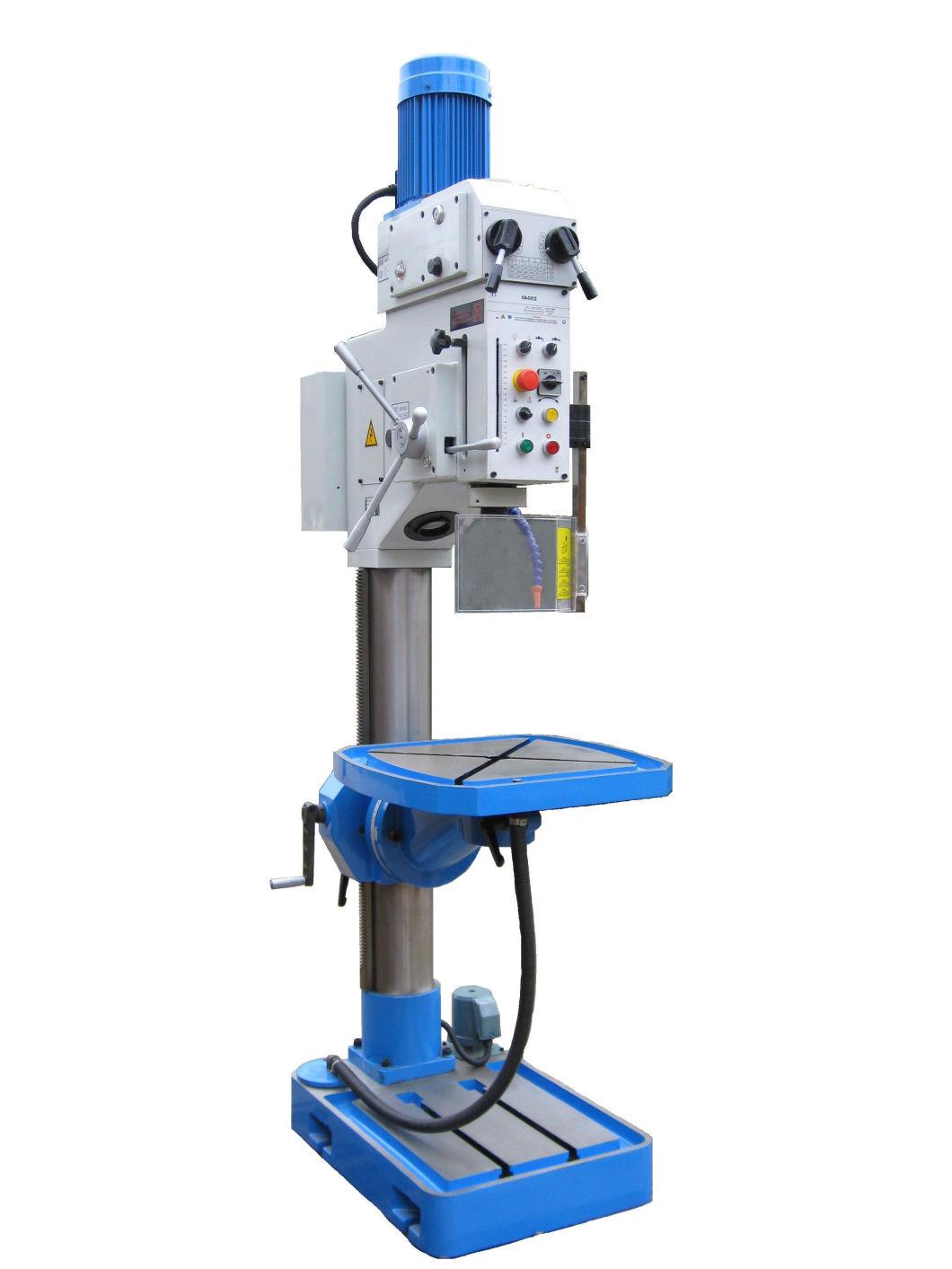

Electric gear head drilling machine model Z5040

Specifications: Z5040(machinery power feed)/Z5040E(electronic power feed)

1. Max. Drilling capacity: 40mm

2. Threading in steel& cast iron: M20&M24

3. Spindle travel: 180mm

4. Spindle taper: MT#4

5. Spindle power feed: 2steps/0.1-0.2mm/rev

6. Spindle speed: 50-1450rpm

7. Width of T-slot: 18mm

8. Max. Distance from spindle axis to surface of column: 350mm

9. Max. Distance from spindle end to surface of table: 770mm

10. Max. Distance from spindle end to surface of bace: 1210mm

11. Table size: 560X560mm

12. Base size: 730X500mm

13. Motor power: 0.75/1.5KW

14. NW/GW: 465/615kg

15. Packing size: 2270X690X1100mm

Feature:

2 speed strong power motor

Automatic tools ejectors

2 steps power feed 0.1-0.2mm/rev

Drilling, tapping
ITEMZ5040
Max.drilling capacity40mm
Spindle taperM.T.4
Spindle travel130mm
Step of spindle speed6
Range of spindle speed     50Hz80-1250 r.p.m
                        60Hz  95-1500 r.p.m
Min.distance from spindle axis to column283mm
Max.distance from spindle nose to worktable725mm
Max.distance from spindle nose to stand table1125mm
Max.travel of headstock250mm
Swivel angle of headstock
(horizontal/perpendicular)
360°/±90°
Max.travel of worktable bracket600mm
Worktable size of avaliablity380×300mm
Swivel angle of table horizontally360°
Table leaned±45°
Size of stand worktable of avaliability417×416mm
Motor Power1.1KW(1.5HP)
speed of motor1400 r.p.m
Net weight/Gross weight432kg/482kg
Packing size1850×750×1000mm
