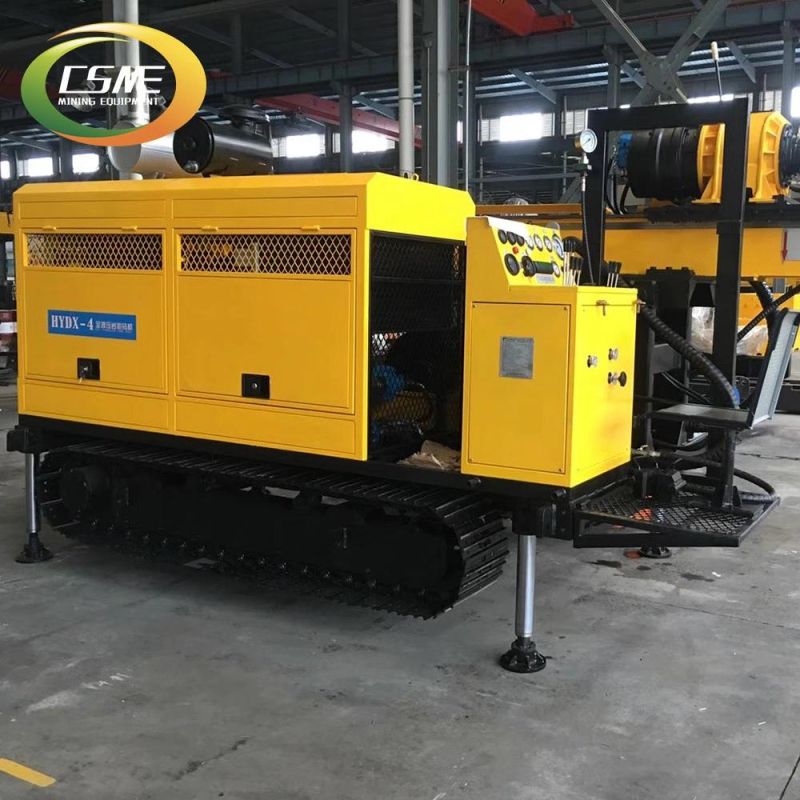

• Model NO.：HYDX-4
• Diesel Engine：Cummins 6CTA8.3-C195

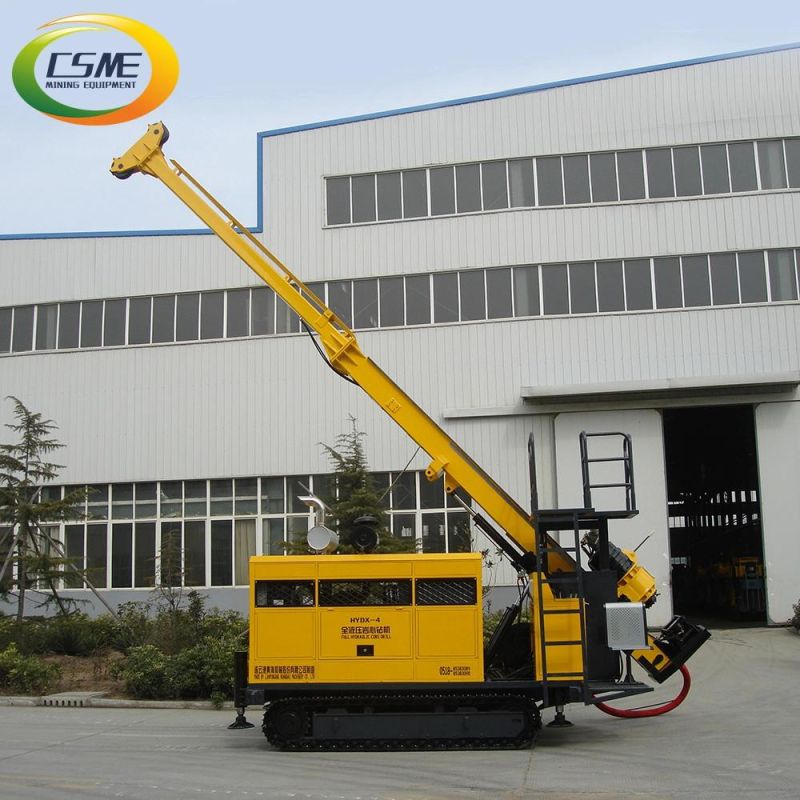

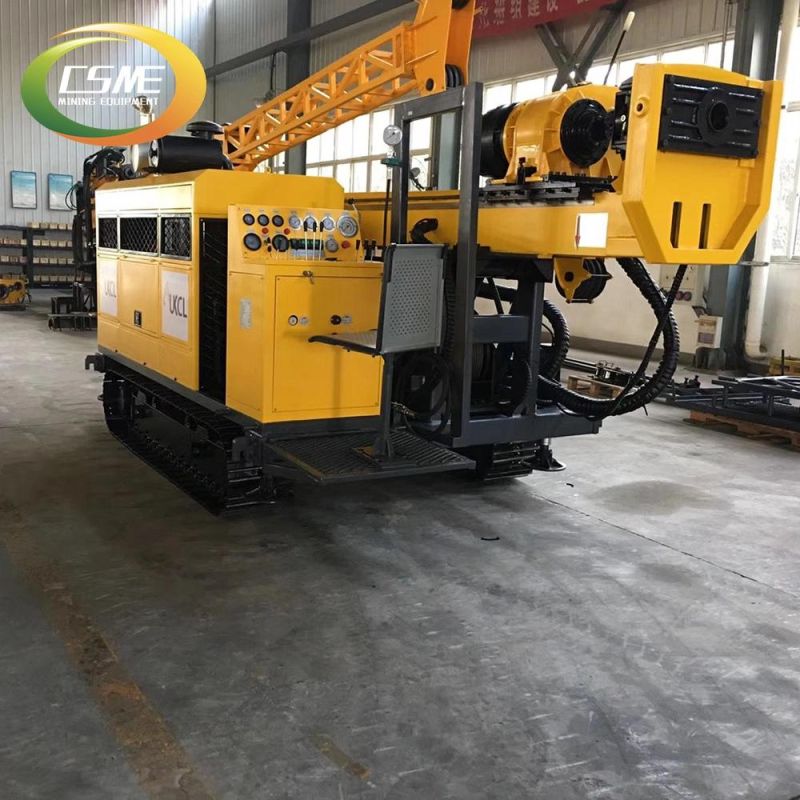

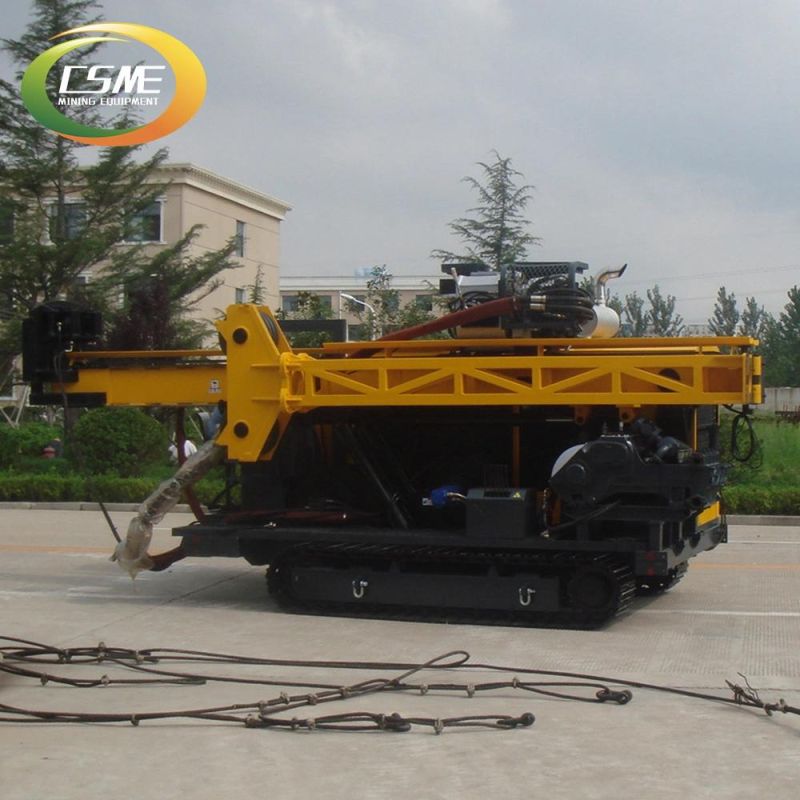

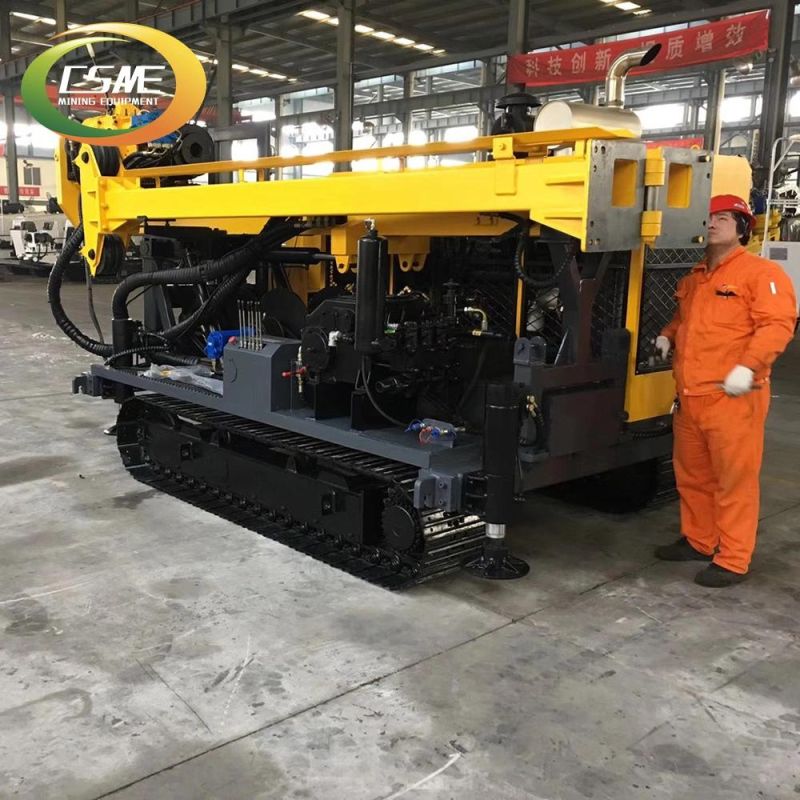

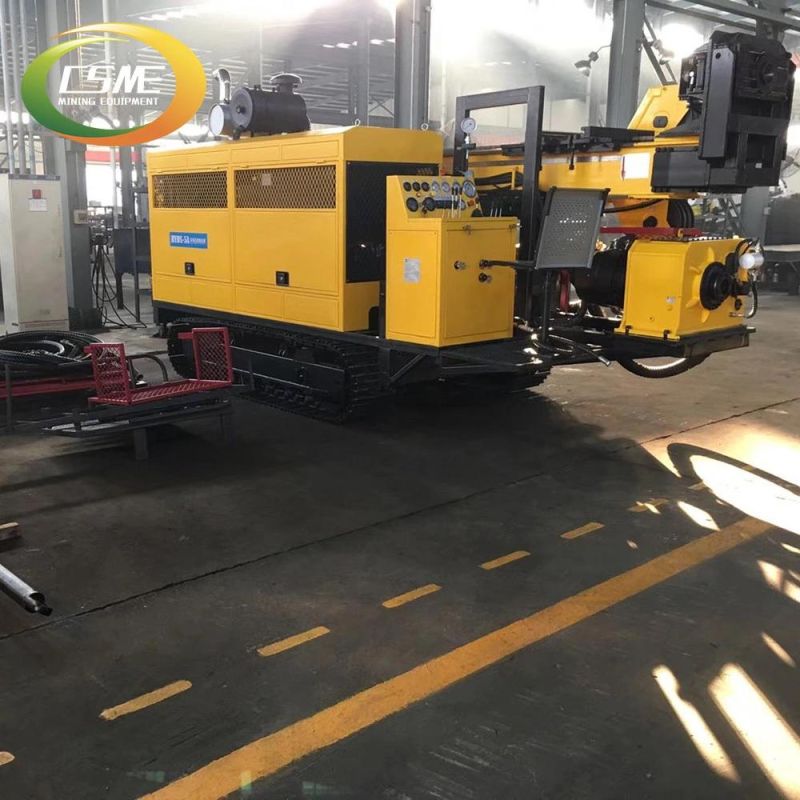

• Drilling Methods：Crawler Mounted Hydraulic Core Drilling Rig
• Weight：14500kgs
• Bq：1500 M(4920 Feet)
• Nq：1300 M(4920 Feet)
• Hq：1000 M(3280 Feet)
• Pq：680

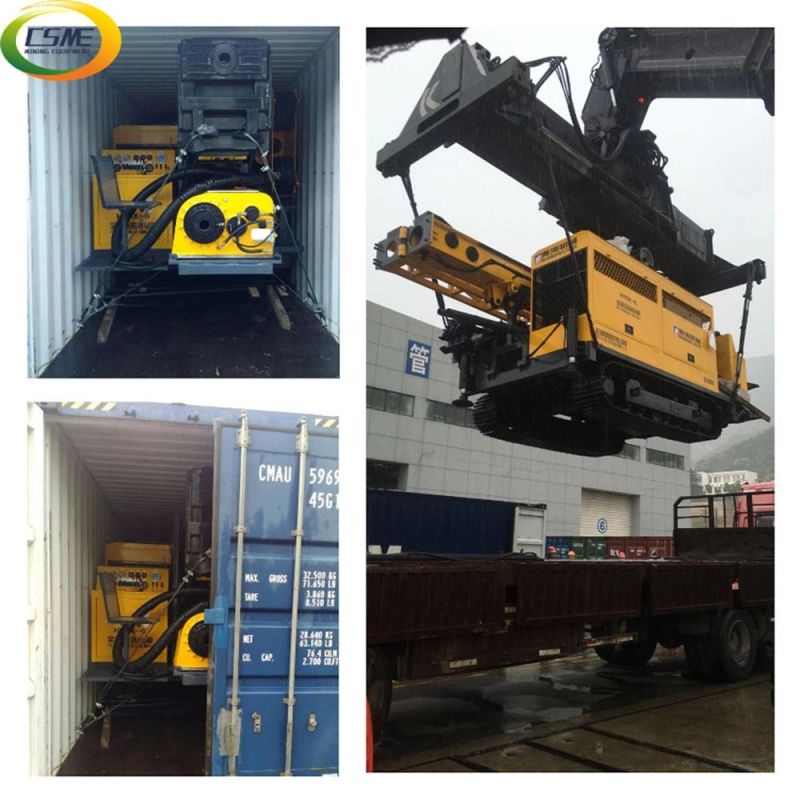

• Transport Package：Null Package
• Specification：6250*2220*2500mm
• Trademark：CSEQ
• Origin：China
• HS Code：8430412200
• Production Capacity：50 Sets,Month

Diesel EngineModelCummins 6BTA5.9-C180 (turbocharged and charge water cooled)Displacement5.9L (1.56 US Gallons)Power132Kw (180HP)Rated RPM

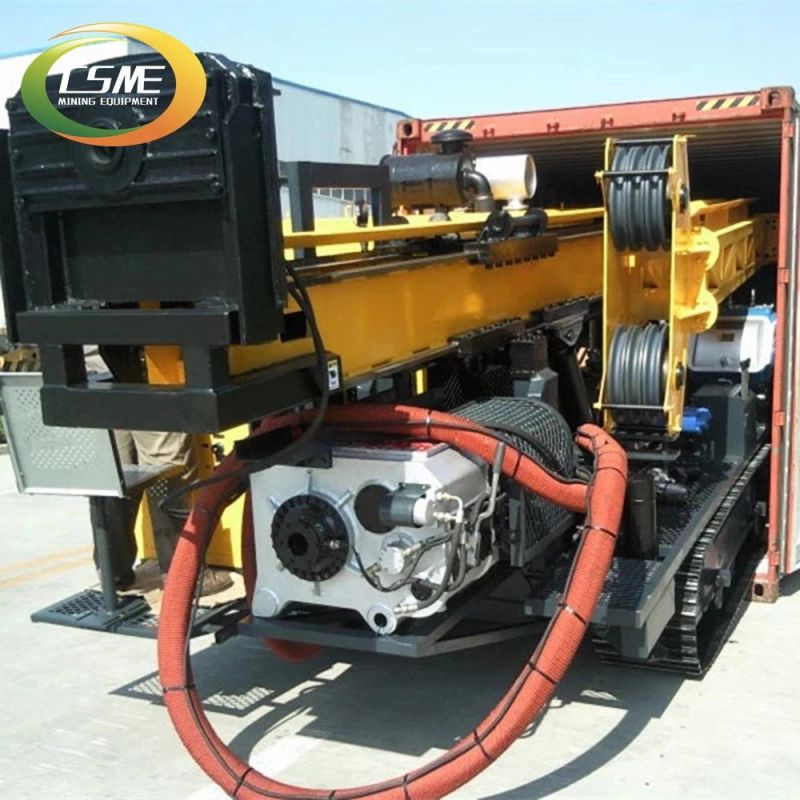

(Factory setting)2200rpmDrilling CapacityBQ1000m(3280feet)NQ700m(2296 feet)HQ500m(1640 feet)Drill HeadRotation MotorHydraulic Motor-variableMakerRPMFour Shifts/ Stepless Change 0-1100 RPMRatios1st     14.422:1
2nd     8.171:1
3rd   4.519:1
4th   2.652:1Head OpenerPivoting style, Manual actuatedHydraulic Chuck(PQ)Hydraulically opened, Disc Spring Clamping, Normally C Closed Type
Axial Holding Capacity of 222400NMax. Torque4200 N·m(3098 lbf·ft)Hold Diameter98 mm(3.86 inch)Max. Lifting capacity of Spindle150 kN(33720 lbf)Max. Feeding Power60 kN(13480 lbf)Primary PumpHydraulic pump Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks.With load sensing system.
1st Pump:148LPM at 31.5MPa
2nd Pump:120LPM at 28MPa
3rd Pump:50 LPM at 16MPaHydraulic TankCapacity310 L (82 US Gallons)Capacity of Main HoistHoisting force (single wire)57kN(12814 lbf) (bare drum)Hoisting Speed (single wire)38-70m/min(bare drum)Steel Wire Diameter12 mm(0.473 inch)Steel Wire Length50 m(164 feet)Capacity of Wireline HoistHoisting Force (single wire)1200 Kg(2646 lb) (bare drum)Hoisting Speed (single wire)60-90m/min (bare drum)Steel Wire Diameter6 mm(0.236 inch)Steel Wire Length1000 m(3280 feet)MastMast Height11 m(36.09 feet)Mast Adjusting Angle0°-90°Drilling Angle45º off horizontal to 90ºvertical downFeed Pull15000kg(33075 lb)Feed Thrust6000kg(13230 lb)Rod Pull3m or 6m(9.84feet or 19.68feet)Feeding Stroke3500 mm(137.80 inch)Slippage Stroke600 mm(23.62 inch)Mud PumpTypeReciprocating pump Triplex PlungerModelBW160/10Stroke70mm(2.76 inch)Discharge pressure2.5, 4.0, 6.5, 10.0 Mpa
(363, 580, 943, 1450 psi)Foot ClampClamping Scope55.5-110 mm(2.19-4.33 inch) through hole dia.154mm(6.06 inch)OthersWeight (platform type)9300 Kg(20506 lb)Dimensions (L×W×H)5100×2200×2890mm(200×86.6×113.78 inch)Transport WayCrawler
