| Diesel Engine | Model | Cummins 6CTA8.3-C195 (turbocharged and charge water cooled) |
| Displacement | 8.3L (2.19 US Gallons) |
| Power | 145kW (195HP) |
| Rated RPM(Factory setting) | 1900rpm |
| Drilling Capacity | BQ | 1500 m(4920 feet) |
| NQ | 1300 m(4264 feet) |
| HQ | 1000 m(3280 feet) |
| PQ | 680 m(2230 feet) |
| Drill Head | Rotation Motor | Double Hydraulic Motors -variable and Reversible |
|
| RPM | Two Shifts/ Stepless Change 0-1145 RPM |
| Ratios | 1st 8.776:1 |
|
| Head Opener | sidewise sliding way with hydraulic drive |
| Hydraulic Chuck(PQ) | Hydraulically opened, Disc Spring Clamping, Normally Closed Type |
|
| Max. Torque | 4650 N·m(3427 lbf·ft) |
| Hold Diameter | 121 mm(4.76 inch) |
| Max. Lifting capacity of Spindle | 150 kN(33720 lbf) |
| Max. Feeding Power | 75 kN(16860 lbf) |
| Capacity of Main Hoist | Hoisting Speed (single wire) | 38-70m/min(bare drum) |
| Hoisting force (single wire) | 77kN(17310 lbf) |
| Steel Wire Diameter | 18 mm(0.71 inch) |
| Steel Wire Length | 50 m(164 feet) |
| Capacity of Wireline Hoist | Hoisting Speed (single wire) | 164m/min (bare drum) |
| Hoisting Force (single wire) | 12 kN(2698 lbf) (bare drum) |
| Steel Wire Diameter | 6 mm(0.24 inch) |
| Steel Wire Length | 1500 m(4920 feet) |
| Mast | Mast Height | 12m(39.37 feet) |
| Mast Adjusting Angle | 0°-90° |
| Drilling Angle | 45°-90° |
| Feeding Stroke | 3800 mm(150 inch) |
| Slippage Stroke | 1100 mm(43.3 inch) |
| Feed Pull | 15000kg(33075 lb) |
| Feed Thrust | 7500kg(16538 lb) |
| Rod Pull | 3m or 6m(9.84feet or 19.68feet) |
| Mud Pump | Type | Reciprocating Pump Triplex Plunger |
| Model | BW250 |
| Stroke | 100mm(3.9 inch) |
| Output volume | 250,145, 90, 52 L/min |
|
| Discharge pressure | 2.5, 4.5, 6.0, 6.0 Mpa |
|
| Foot Clamp | Clamping Scope | 55.5-117.5 mm(2.19-4.63 inch) |
|
| Other | Weight | 12500 Kg(27558 lb) |
| Dimensions (L × W ×H ) | 6250×2220×2500mm |
|

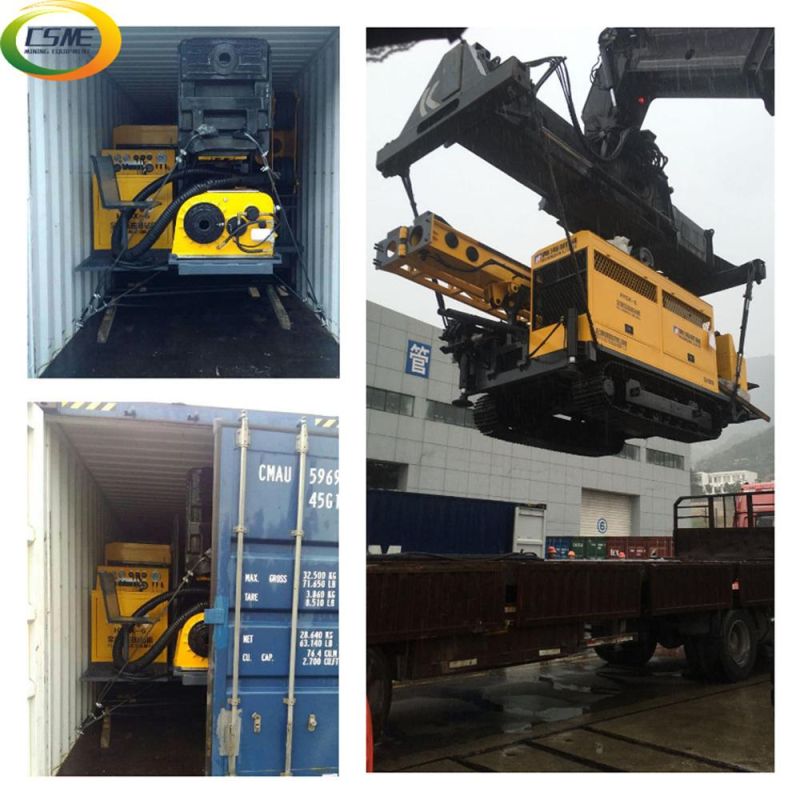

| Transport Way | Steel Crawler |
