• Model NO.：Z5040
• Automatic Grade：Semiautomatic
• Precision：Normal Precision
• Material：High Speed Steel
• Use：Metal Drilling
• Transport Package：Plywood, or Wood Case
• Specification：CE,GS
• Trademark：Wei hao
• Origin：Shanghai
• HS Code：845911000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. Z5040 Automatic Grade Semiautomatic Precision Normal Precision Material High Speed Steel Use Metal Drilling Transport Package Plywood, or Wood Case Specification CE/GS Trademark Wei hao Origin Shanghai HS Code 845911000 Production Capacity 1000 Sets/Month

Product Description

Min. Order Quantity: 10 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T

Quick Details
Condition: New
CNC or Not: Normal
Drilling Speed: 50-1450rpm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: ZS5040
Voltage: 380V
Power(W): 1500W
Dimension(L*W*H): 2270X690X1100mm
Weight: 465kgs
Certification: CE After-sales Service Provided: No overseas service provided

Packaging & Delivery
Packaging Details: 2270X690X1100mm 465/615kg
Delivery Detail: 30-45days

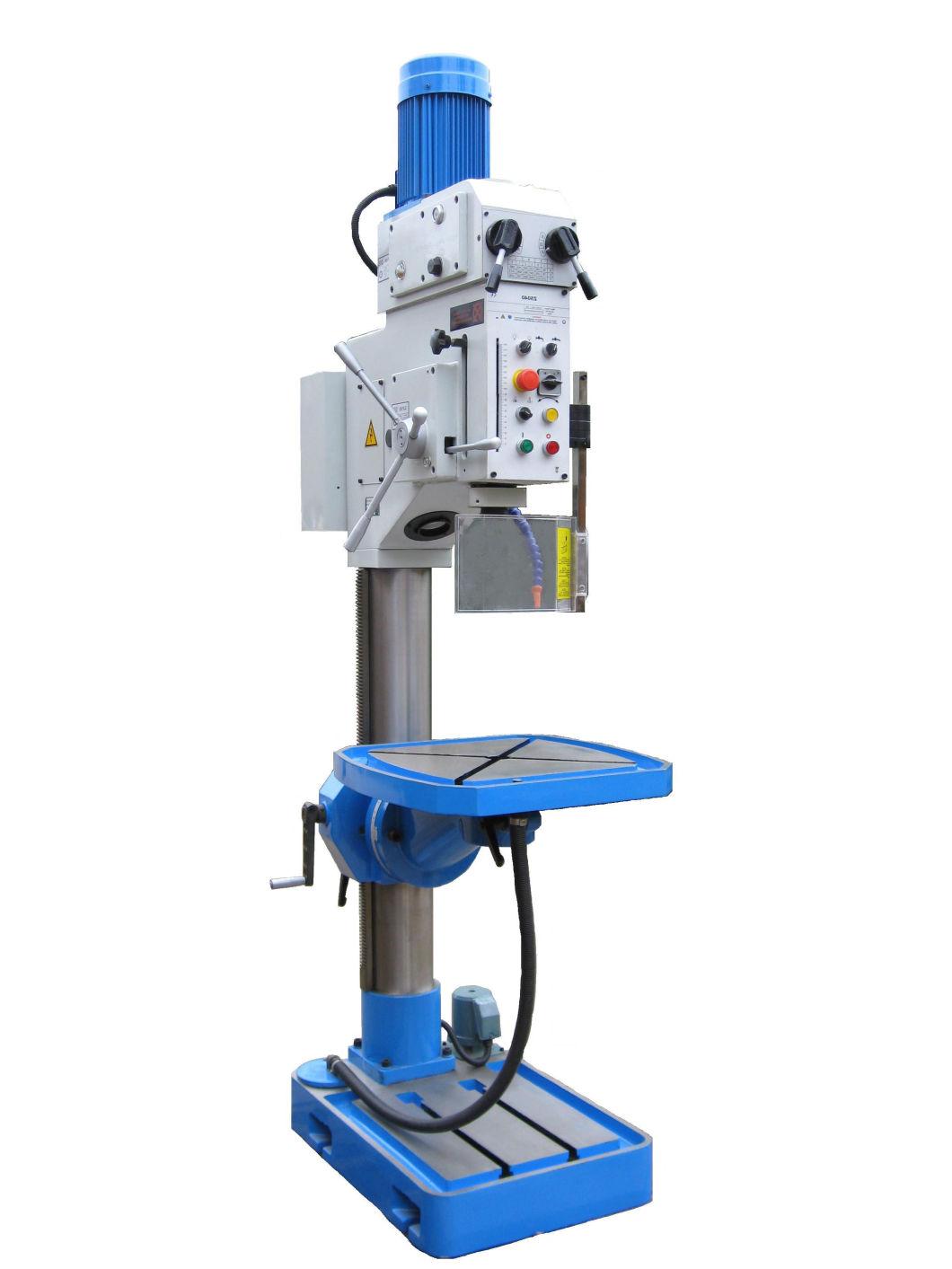

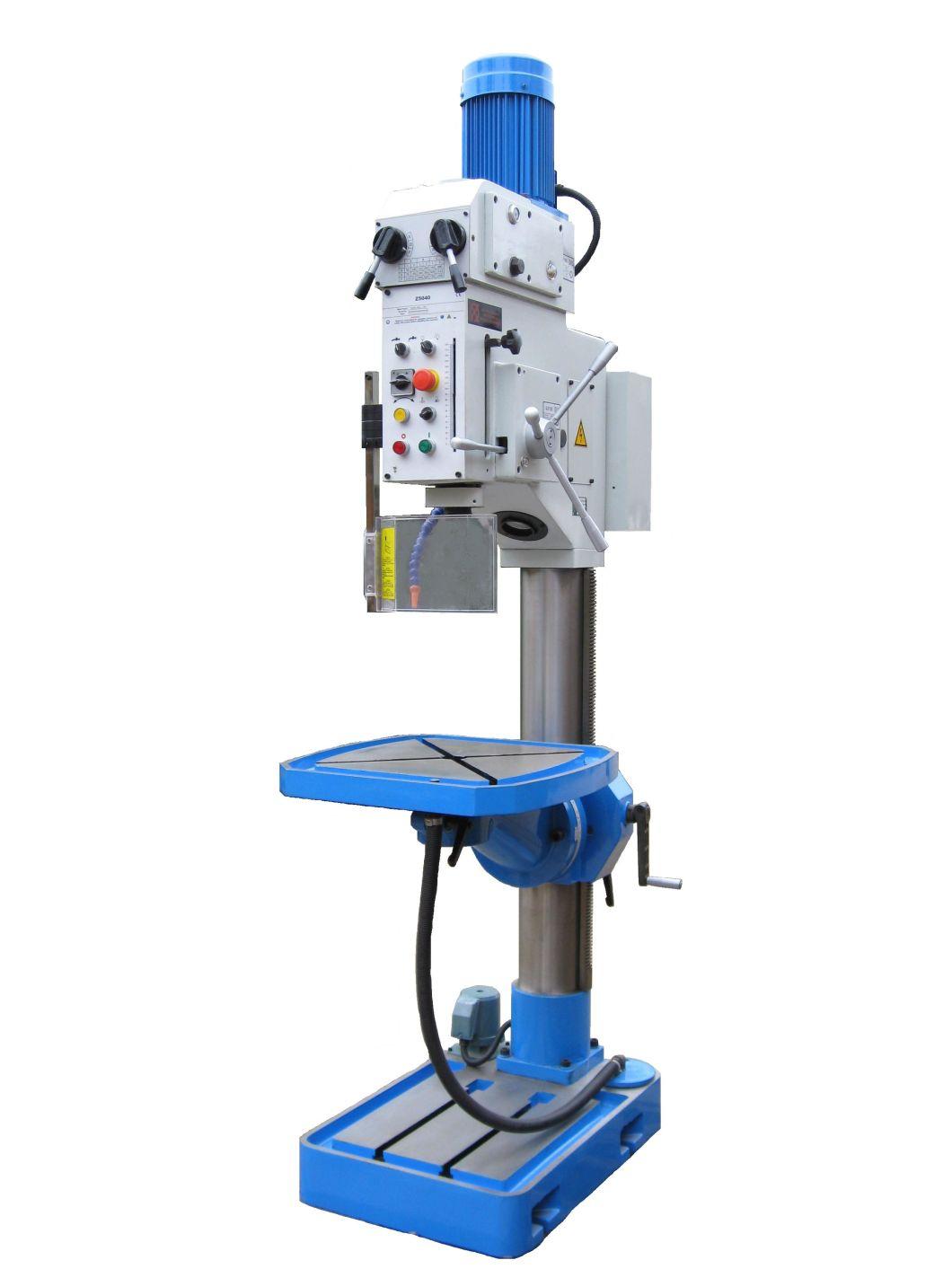

Specifications:
Z5040(machinery power feed)/Z5040E(electronic power feed)

1. Max. Drilling capacity: 40mm
2. Threading in steel& cast iron: M20&M24
3. Spindle travel: 180mm
4. Spindle taper: MT#4
5. Spindle power feed: 2steps/0.1-0.2mm/rev
6. Spindle speed: 50-1450rpm
7. Width of T-slot: 18mm
8. Max. Distance from spindle axis to surface of column: 350mm
9. Max. Distance from spindle end to surface of table: 770mm
10. Max. Distance from spindle end to surface of bace: 1210mm
11. Table size: 560X560mm
12. Base size: 730X500mm
13. Motor power: 0.75/1.5KW
14. NW/GW: 465/615kg
15. Packing size: 2270X690X1100mm

Feature:
2 speed strong power motor
Automatic tools ejectors
2 steps power feed 0.1-0.2mm/rev

Drilling, tapping

ITEM	Z5040
Max.drilling capacity	40mm
Spindle taper	M.T.4
Spindle travel	130mm
Step of spindle speed	6
Range of spindle speed     50Hz	80-1250 r.p.m
60Hz	95-1500 r.p.m
Min.distance from spindle axis to column	283mm
Max.distance from spindle nose to worktable	725mm
Max.distance from spindle nose to stand table	1125mm
Max.travel of headstock	250mm
Swivel angle of headstock (horizontal/perpendicular)	360°/±90°
Max.travel of worktable bracket	600mm
Worktable size of avaliablity	380×300mm
Swivel angle of table horizontally	360°
Table leaned	±45°
Size of stand worktable of avaliability	417×416mm
Motor Power	1.1KW(1.5HP)
speed of motor	1400 r.p.m
Net weight/Gross weight	432kg/482kg
Packing size	1850×750×1000mm
