Hf130y Low Consumption Hydraulic DTH Drilling Rig
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：90-310mm
- Drill Hole Depth：20-120m
- Bit Type：DTH Bit
Base Info
- Model NO.：HF130Y
- Drilling Way：Impactor
- Weight：4360kg
- Swinging Angle of Skid：Left and Right Total 40 Degree
- for Rock：F=6-20
- Air Consumption：10-26m3,Min
- Drill Diameter：90-310mm
- Drill Depth：20-120m
- Dimension (L * W * H)：4460*1950*2460(mm)
- Pipe Diameter：130-400mm
- Host Power：56kw
- Walk Speed：0-2.5km,H
- Climb Ability：35degree
- Transport Package：Wooden Boxes
- Specification：CE, ISO
- Trademark：Hanfa
- Origin：Zhengzhou City, China
- HS Code：8430490000
- Production Capacity：20 Sets,Month
Description
Air pressure0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) Pipe diameter 76mm/89mm For rock F=6-20 Bore diameter(screw) Max 400mm Bore depth 0-30m Screw pipe diameter 130-400mm Once promotion 2000mm Skid pitch 100degree Swinging angle of skid Left and right total 40degree Rotation speed 0-70r/min Host power 56KW Climb ability 35degree Dimension(L*W*H) 4460*1950*2460(mm) Weight 4360Kg Walk speed 0-2.5km/h

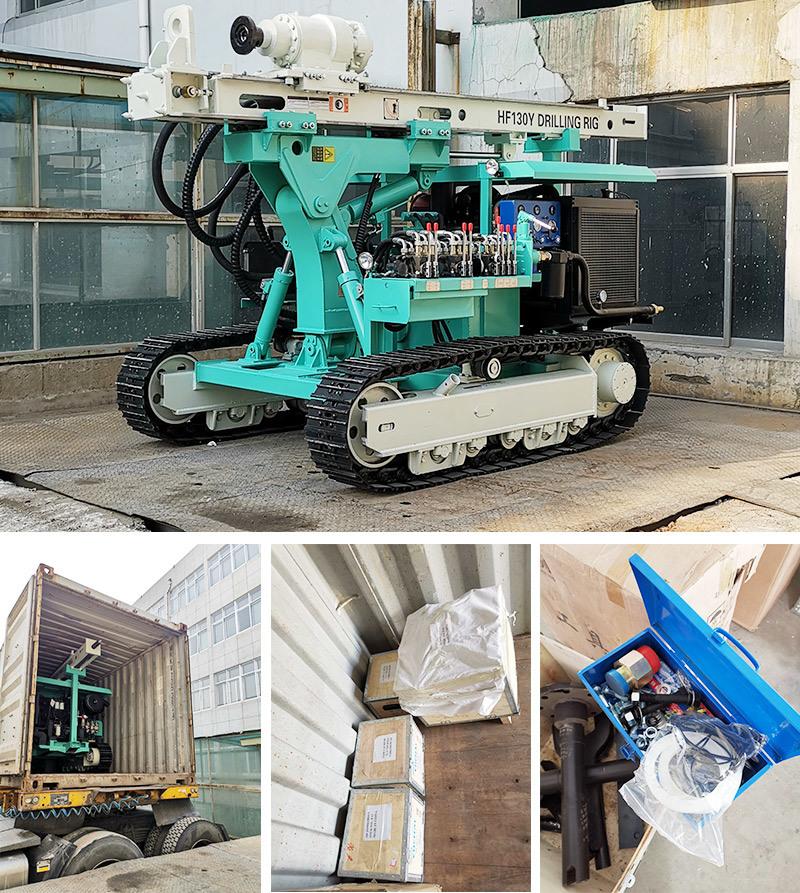

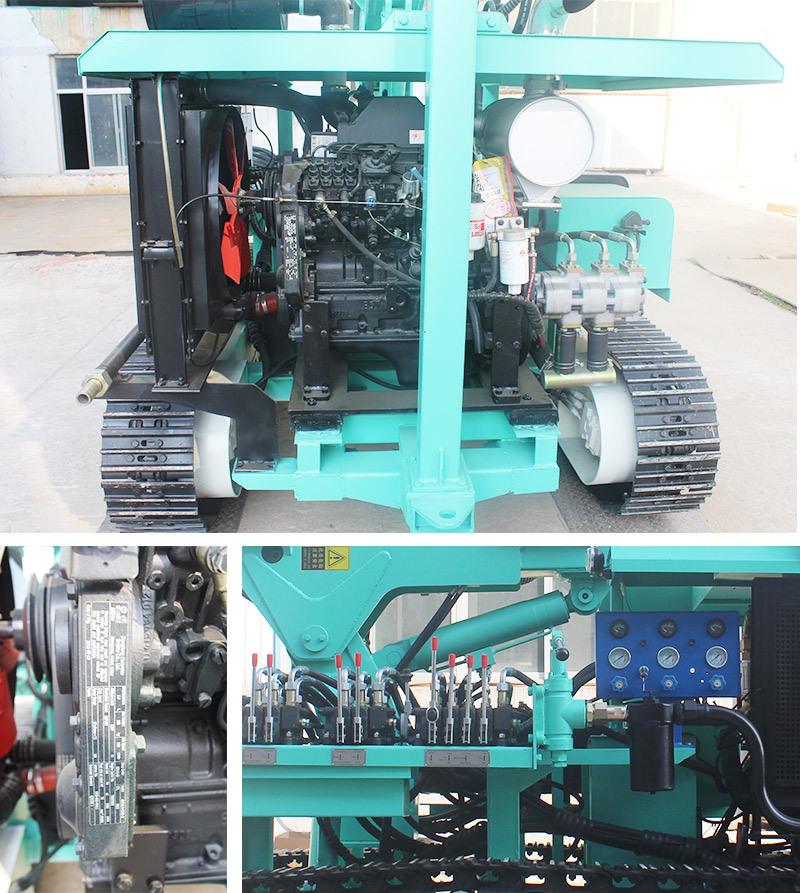

Machine Details
Packing and Shipping
We will follow the normal and safe packing and transportation to ensure the safe arrival of the goods. We export to many countries, has rich experience in loading the drilling rig, export standard containers are 20GP, 40GP, 40HQ container, or FR in the case of bulk parts

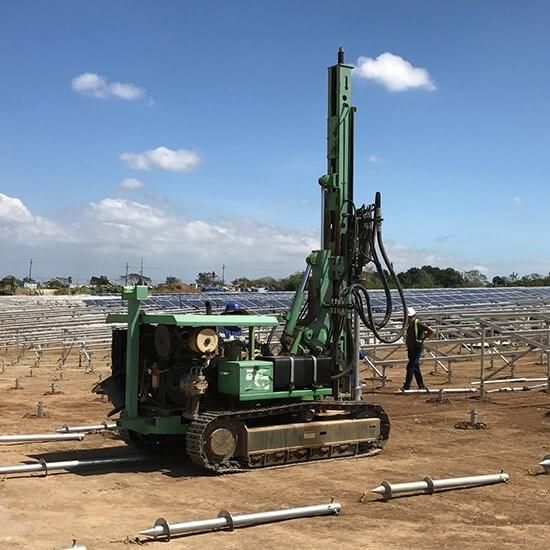

Working Site
Company Information
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
FAQ
1. Are you trading company or manufacturerWe are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Our Customers
