• Model NO.：DR-130
• Condition：New
• Drill Hole Diameter：>300mm
• Drill Hole Depth：5-30m
• Bit Type：Twist Bit and Barrel Drill
• Drilling Way：Rotary
• Type：Crawler or Wheel
• Usage：Pile Driver,Drill Hole Flling Pile Construction
• Engine：Cummins
• Drilling Diameter：500-1800mm
• Power Source：Diesel
• Drilling Depth：30m
• MOQ：1 Set
• Specifications：Crawler Drilling Rig
• Weight：26t
• Application：New Machine
• Chassis Length：4200mm
• Engine Power：205HP
• Drill Tools：Two Drill Bit
• Color：Customized
• Transport Status Width：2800mm
• Transport Status Height：3400mm
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：11500mm*2800mm*3400mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month
• Package size per unit product：13000.00cm * 2800.00cm * 3400.00cm
• Gross weight per unit product：300000.000kg

Basic Info.

Model NO. DR-130 Condition New Drill Hole Diameter >300mm Drill Hole Depth 5-30m Bit Type Twist Bit and Barrel Drill Drilling Way Rotary Type Crawler or Wheel Usage Pile Driver,Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1800mm Power Source Diesel Drilling Depth 30m MOQ 1 Set Specifications Crawler Drilling Rig Weight 26t Application New Machine Chassis Length 4200mm Engine Power 205HP Drill Tools Two Drill Bit Color Customized Transport Status Width 2800mm Transport Status Height 3400mm Transport Package Rotary Drilling Rig Package According to The Custo Specification 11500mm*2800mm*3400mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Packaging & Delivery

Package size per unit product 13000.00cm * 2800.00cm * 3400.00cm Gross weight per unit product 300000.000kg

Product Description

DR-130 kelly bar rotary drilling rig

Product Details
The maximum drilling depth of this rig is 30M, and the drilling diameter is 500-1600MM. Equipped with automatic mast vertical adjustment and automatic body reset functions. Our products have obtained CE / SGS / ISO and other produact quality certifications. More information welcome you advice.
  Parameter

Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-30m
Diamension (mm)	11500X2800X3400mm
Total weight (t)	26T
Power head max output torque (KN.m)	120KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	151KW ,cummins ,water cooling ,turbo charger

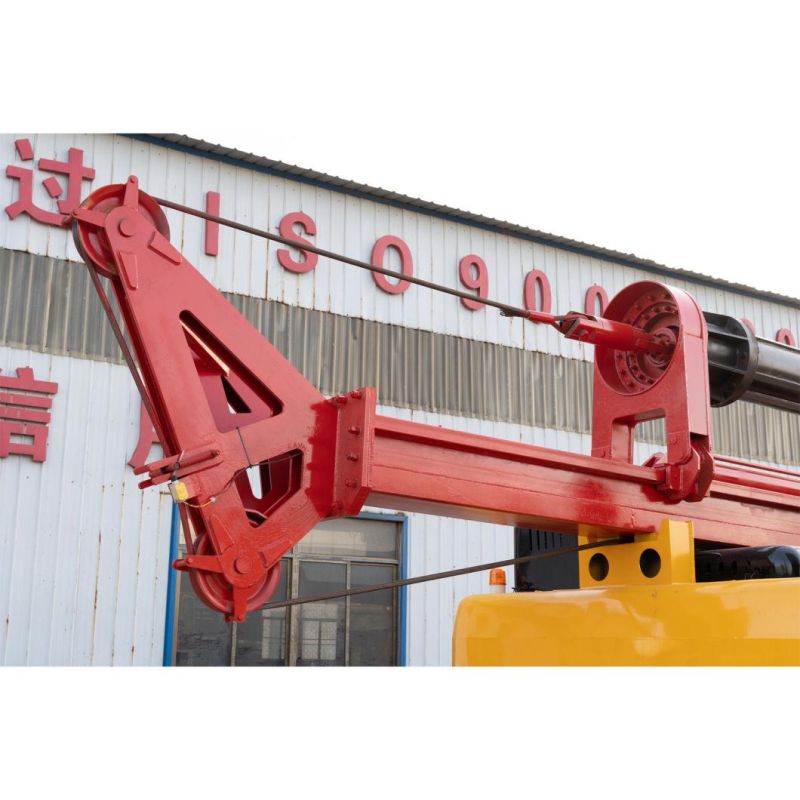

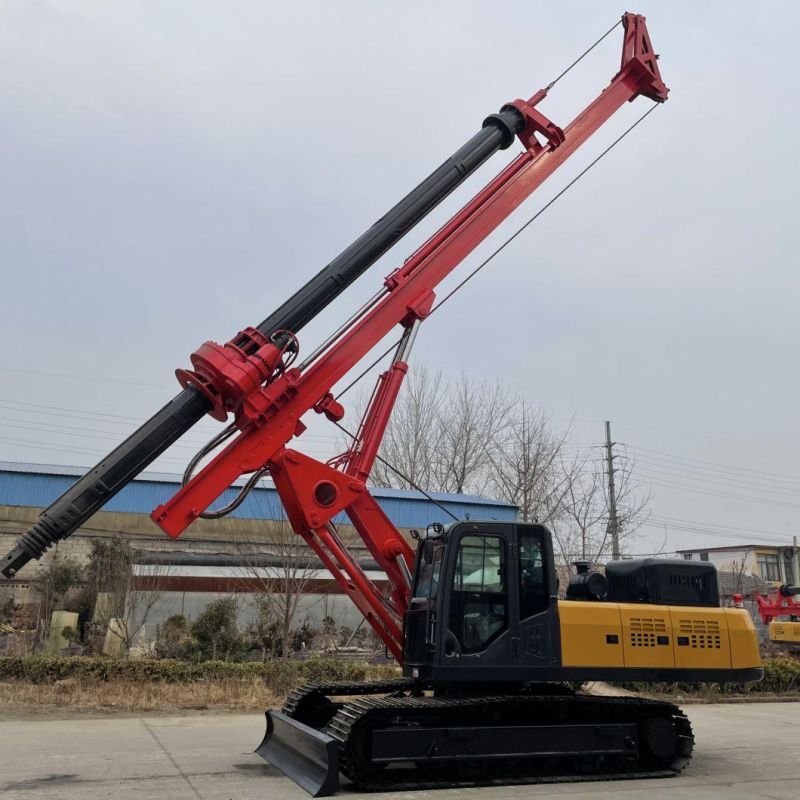

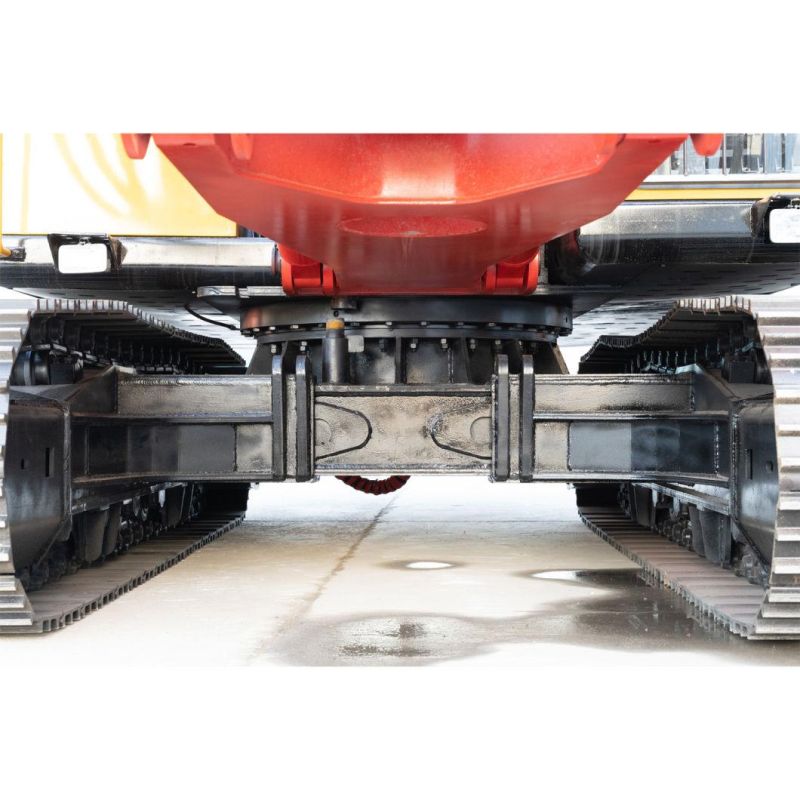

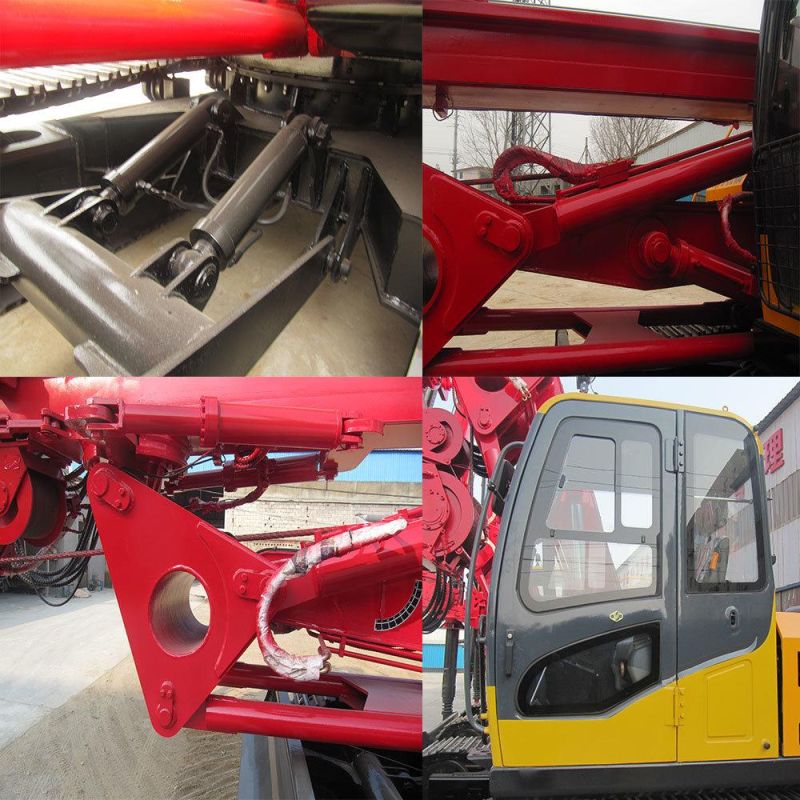

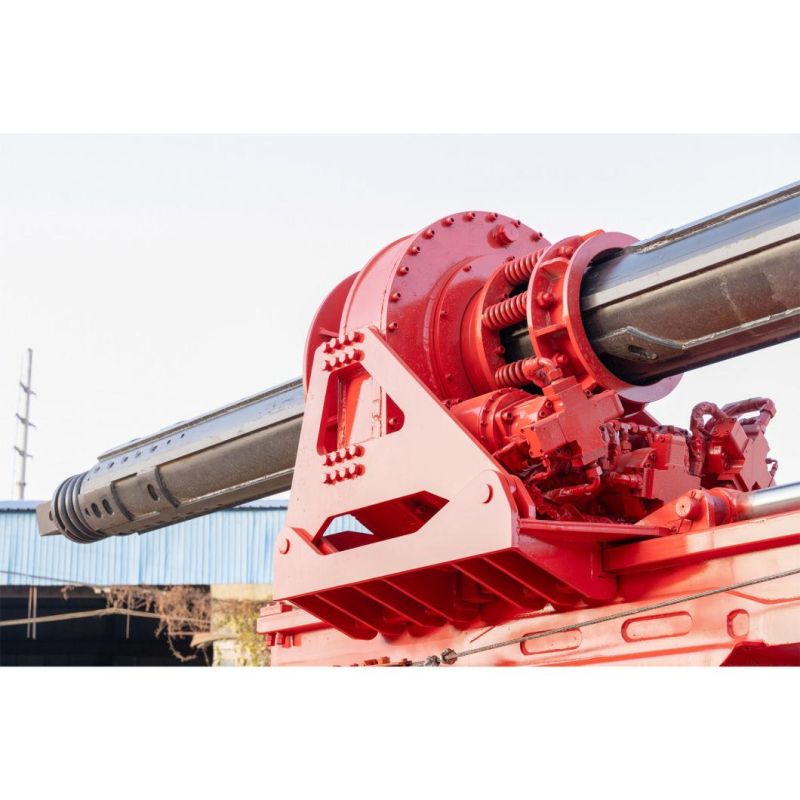

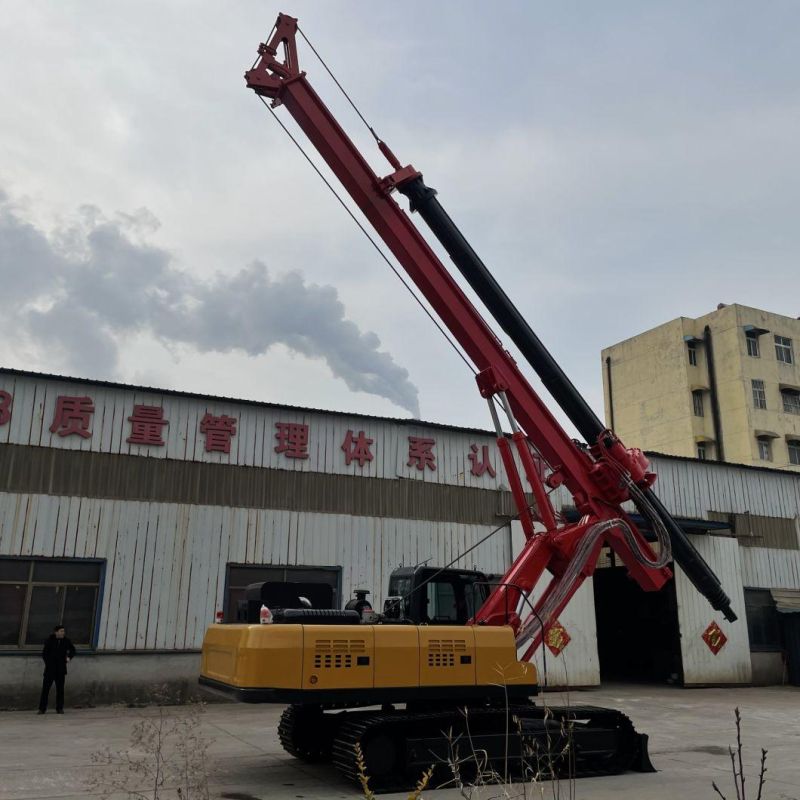

  Machine Photos











Certification
We have many certificates, support verification, we export more than 30 countries!



Exhibition
We have been committed to participate in a variety of offline exhibitions, not only for the sale of our rig, but also for continuous learning. We are committed to the world, launched "rotary drilling rig, made in China!"

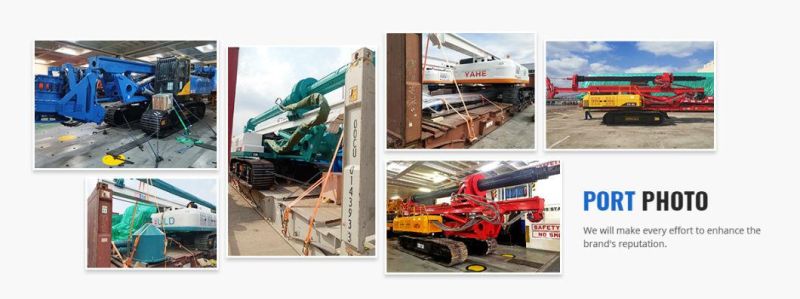

Transport
At present, there are three ways to transport rotary drilling rig: special equipment frame box, RO ro ship and bulk carrier. Generally speaking, they are the first two. Although the price is a little expensive, compared with bulk carriers, they are very safe. We will arrange port personnel to take reinforcement photos in each link. If customers need, we can send them by email.




  FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
