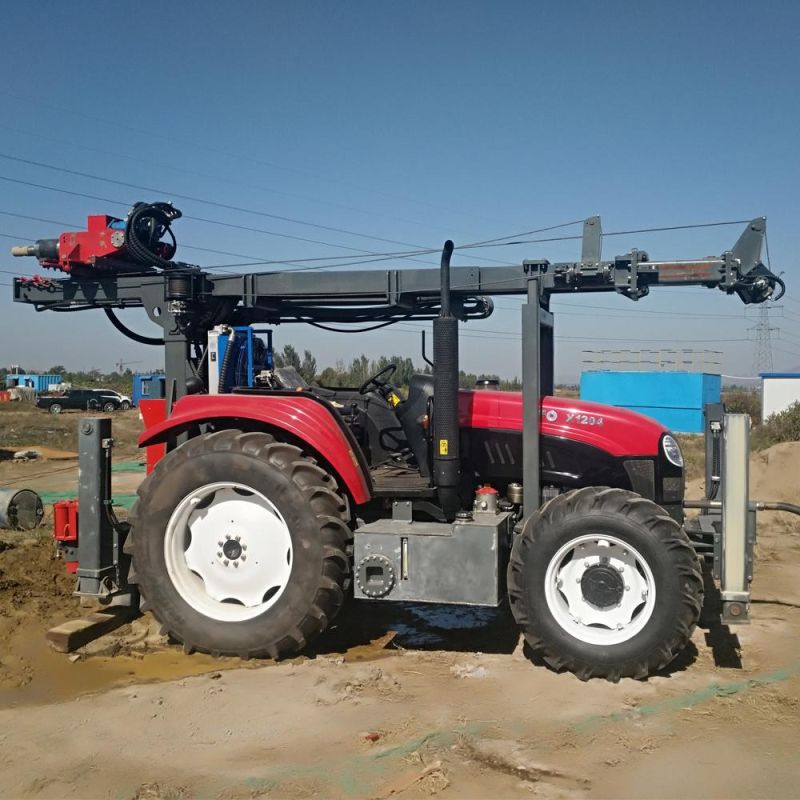

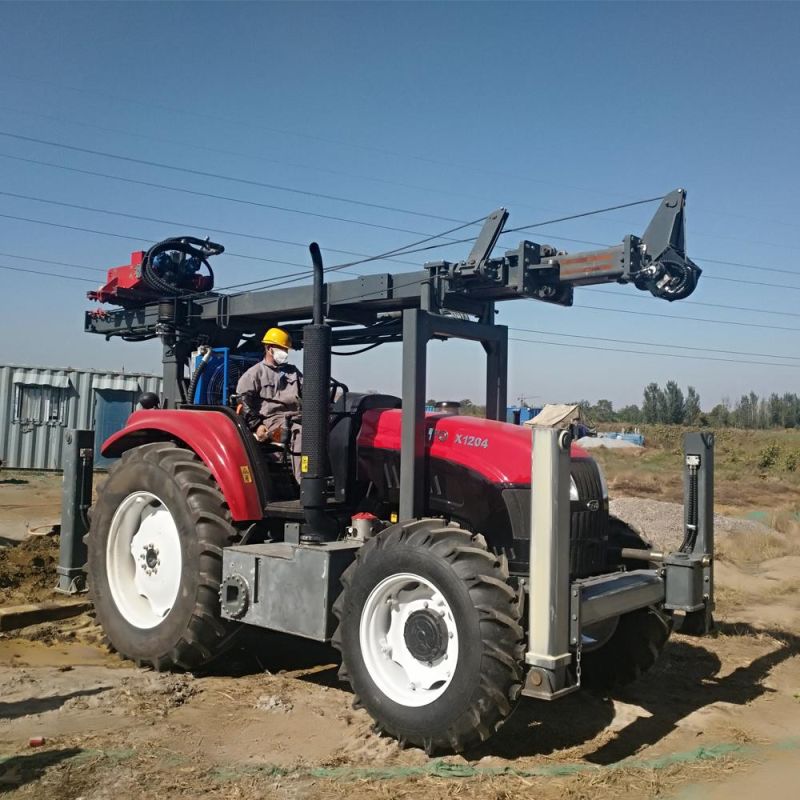

300m Tractor Mounted Water Well Drilling Rig
Liuzhou Tuozhi Mine Tech Co., Ltd.- Warranty:One Year
- Certification:CE, ISO 9001:2000
- Condition:New
- Motor:Diesel
- Drill Hole Diameter:>300mm
- Drill Hole Depth:300m
Base Info
- Model NO.:TZ-300
- Bit Type:DTH
- Drilling Way:Impactor
- Type:Crawler
- Power:Hydraulic
- Configuration:Portable
- Transport Package:Export Standard
- Specification:6500x2150x2700mm
- Trademark:TZ
- Origin:Guangxi Liuzhou
- HS Code:8430412900
- Production Capacity:100
Description
Basic Info.
Model NO. TZ-300 Bit Type DTH Drilling Way Impactor Type Crawler Power Hydraulic Configuration Portable Transport Package Export Standard Specification 6500x2150x2700mm Trademark TZ Origin Guangxi Liuzhou HS Code 8430412900 Production Capacity 100Product Description
Our 300 tractor series of water well dilling rigs adopts full hyfraulic control system and the drilling tools are driven to rotate by the power head,they own reasonable design,stable structure and good mobility,fit for the operation in various poor road conditions.they are widely used in various projects such as well-drilling,ground geothermal energy,engineering survey,foundation treatment,they are good for mud drilling and air drilling,and can meet the needs of drilling in different formations,six national patents have been filed
Model | TZ-300 |
Max drilling depth | 350m |
Drilling diameter | 105-350mm |
Adaptation condition | F=6-20 |
Recommendation Working pressure | 1.2-3.5MPa |
Drill Rod length | 3m |
Drill rod diameter | 89/102mm |
Maxumum lifting force | 16T |
Fast lifting speed | 30m/min |
Maximum Rotation speed | 40-400 r/min |
Maxumum rotation torque | 7500-5200Nm |
Winch lifting force | 1.5T |
Working speed | 40km/h |
Dimension | 6500x2150x2700mm |
Drilling method | Air Drilling or Mud pump drilling |
Engine | 120HP |
Total weight | 11T |
