• Model NO.：GS450B-LS
• Type：Track
• Engine Power：194 kw
• Max Torque：23500 N·m
• Max. Mud Pump Flow：600 L,min
• Rig Weight：13500 kg
• Transport Package：Nude Packing
• Specification：7500*2250*2500 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GS450B-LS Type Track Engine Power 194 kw Max Torque 23500 N·m Max. Mud Pump Flow 600 L/min Rig Weight 13500 kg Transport Package Nude Packing Specification 7500*2250*2500 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

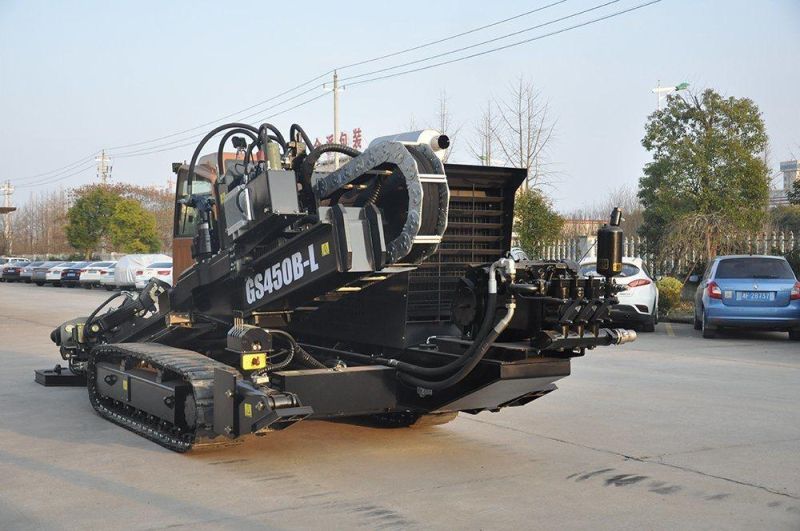

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1. Rotation adopts close-circuit system, Push & pull, Clamping and walk adopt auto-variable system, and load-sensing control, work efficiency increases by 15%-20% , the heat is reduced about 50%, and saved 15%- 20% energy compared to the traditional system.
2. Rotation and push&pull adopts hydraulic control, and it reduces the faults that result from the aging of electrical components, realizing more stable and reliable control and quicker response.
3. It is Equipped with Cummins Engine specialized in engineering machinery with strong power.
4. Main girder adopts four bar linkage luffing structure, which highly increases entry angle range and insures the large angle and rig tracks not being off ground, improving the safety performance.
5. Wire-control walking system can ensure the safty for walk and site transfer.
6. Newly developed reversible manipulator is convenient for loading and unloading drill rod, which greatly reduce the workers labor intensity, improve work efficiency
7. Applicable for φ83×3000mm and φ89×3000mm drilling rod, the machine fits moderate field area, which can meet the requirement for high efficiency construction in small downtown district.
8. Main hydraulic components are from the international first-class hydraulic components manufacturer,which has greatly improved the reliability of the product performance and safety.
9.The electric design is reasonable with low failure rate, which is easy to maintain.
10. Push & pull adopts rack&pinion model, which ensures high efficiency, stable work, and convenient maintenance.
11. Steel track fitted with rubber plate can be loaded heavily and walk on all kinds of roads.

[Main Technical Parameters]


Engine Power	194 kw	Max Torque	23500 N·m
Rig Weight	13500 kg	Dimension(L*W*H)	7500*2250*2500 mm
Max. Push & Pull Force	450/900 kn	Max Rotation Speed	105 r/min
Max.. Push & Pull Speed	55 m/min	Max. Mud Pump Flow	600 L/min
Caterpillar Walking Speed	3-5 km/h	Max. Mud Pump Pressure	10 Mpa
Enter Drill Angle	12-22°	Max. Climbing Gradient	18°
Max. Aperture Diameter	Φ1400 mm(Soil Depended)	Max. Crossing Length	700 m(Soil Depended)

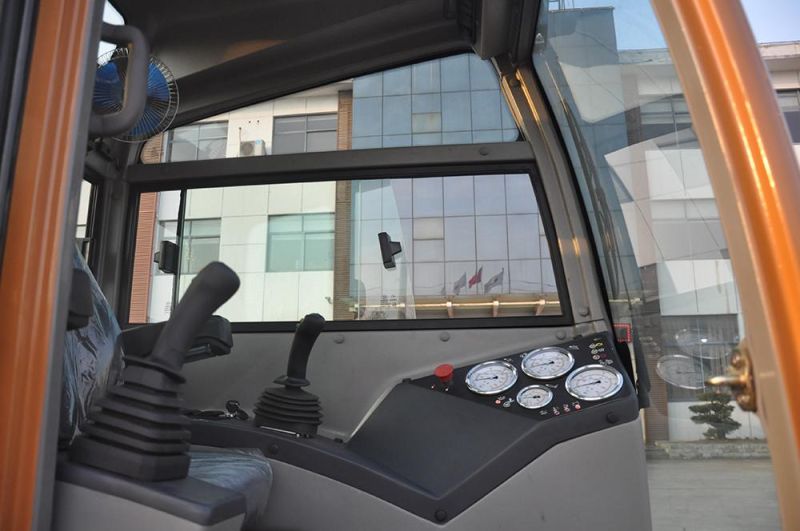

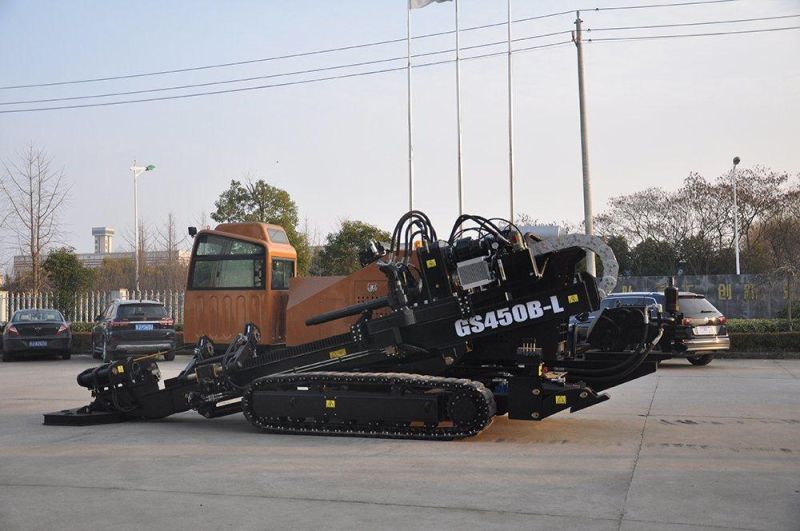

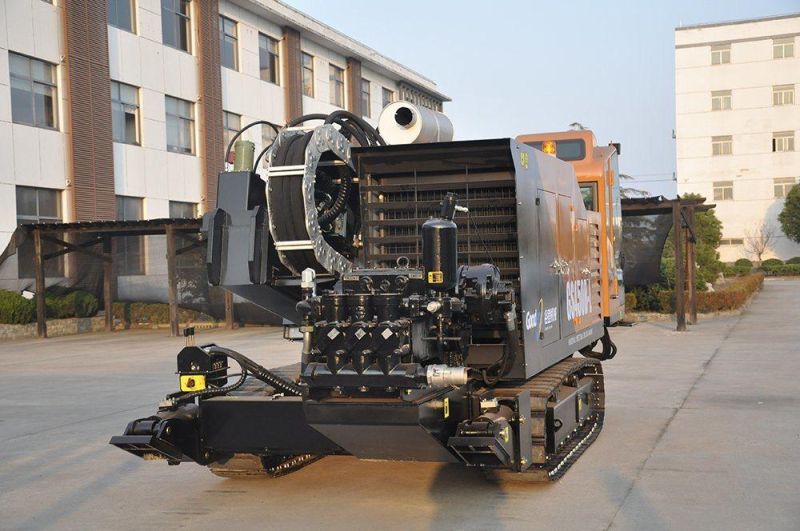

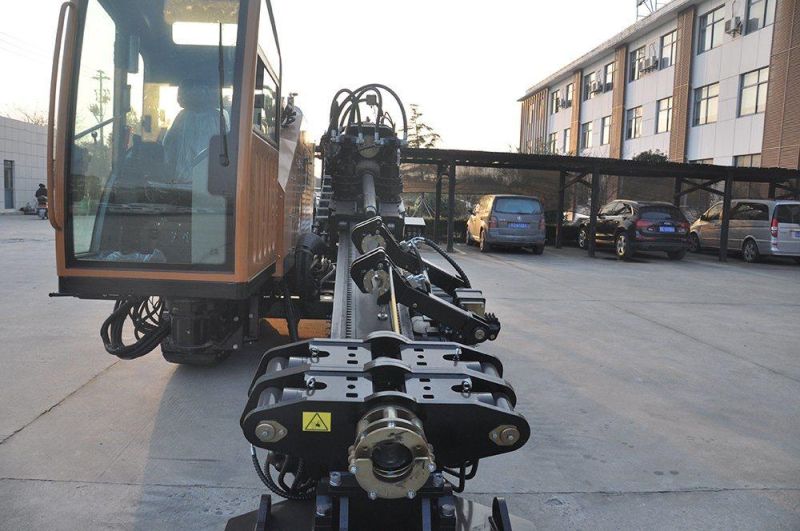

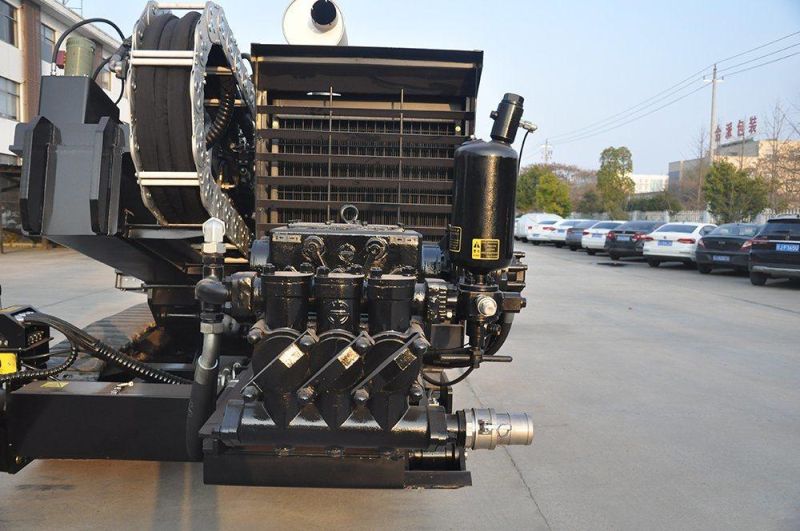

[Product Photos ]

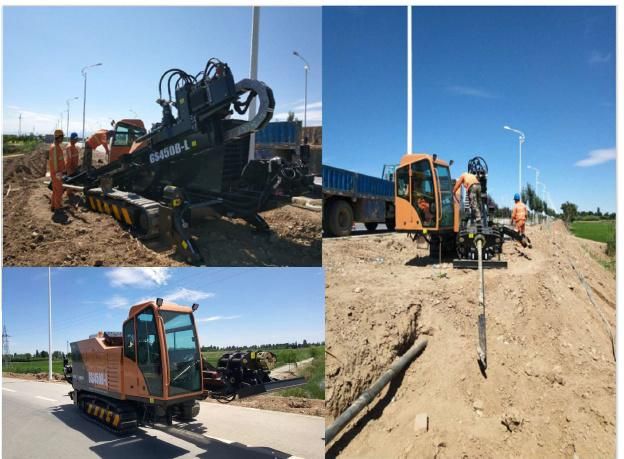

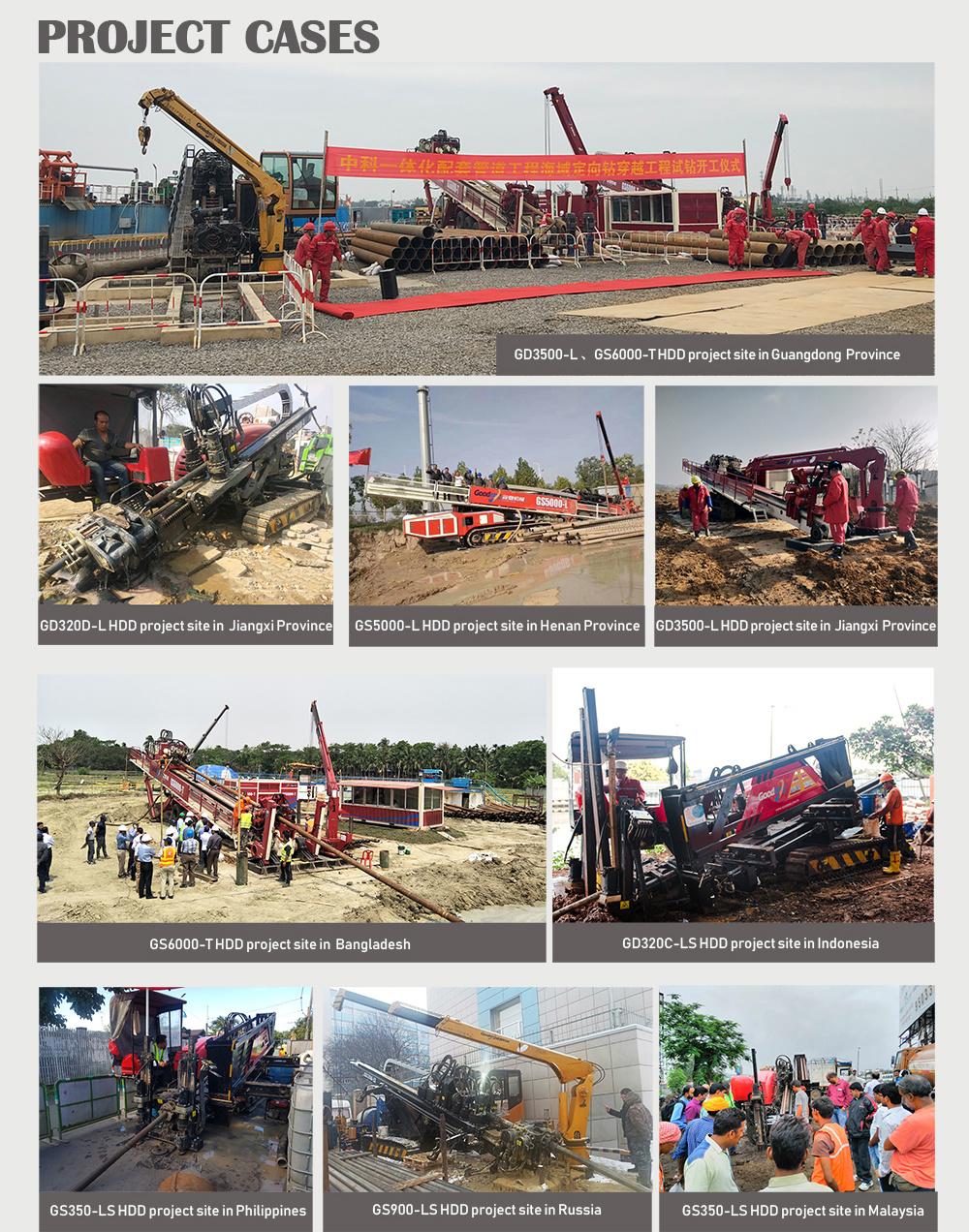

[Cases]



[Company Information]




[Company Profile]

"Goodeng Machine", founded in May 2002, is specialized in research & development, manufacturing, sales and service for trenchless equipment, static-pressure pile pressing-in & pile planting machine, and geological drilling equipment. Our main products are GD series of horizontal directional drilling machine. As mechanization Research branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team's support, which is filled of multiple domestic and abroad blanks. More products have obtained national and provincial progress prize in science and technology of machinery industry.

[Competitive Advantage]
  1. Competitive Price: We work as the leading dealers of various leading China construction machinery factories, and are treated with best dealership prices every year. From numerous comparisons and feedbacks from clients, our price is more competitive than other factories.
2. Quick Response: Our team is consisted of a group of deligent and enterprising people, working 24hrs/day to respond clients'  inquiries and questions all the time. Most problems can be solved within 12 hours.

[FAQ]

1. What about the warranty time?
    A:12 months after shipment or 2000 working hours,whichever occuts first.
2. What about the delivery time?
    A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
    A:On T/T term, 30% down payment is required in advnce, and 70% balance shall be before shipment, or
        against the copy of original BL for old client.
        On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
    A: We can ship machine by sea and road.
