200m-1000m Mine Exploration Diesel Water Well Hydraulic Core Drill Hard Rock Drilling Machine
Henan Yugong Machinery Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：250-300mm
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：YG-200Y
- Drilling Way：Impactor
- Type：Sliding
- Product Name：Machine
- Keyword：Drilling Rig
- Opening Hole Diameter：325mm
- Final Hole Diameter：75mm
- Drill Pipe Diameter：50mm
- Power(Diesel Engine)：13.2kw
- Weight Without Power：600,740kg
- Spindle Speed：142,285,570r,Min
- Spindle Stroke：450mm
- Single Rope Max Pull Lift：2000kg
- Maximum Pressure：1.2MPa
- Mud Pump Flow：145L,Min
- Max.Pressure：2MPa
- Times/Min：93
- Drill Tower Height：6.5m
- Transport Package：Wooden Packing
- Specification：2.7*0.8*1.5m
- Trademark：YUGOGN
- Origin：China
- HS Code：8430490000
- Production Capacity：1000sets,Month
Description
Drilling TowerRated load 18Ton 18Ton 18Ton Effective height 6.5m 7.5m 9m Tower leg spec. Φ73mm Φ73mm Φ73mm
Main Features
1.With hydraulic automatic feeding mechanism, improve drilling efficiency, reduce labor intensity
2.With a hole bottom pressure gauge, easy to grasp the situation inside the hole;
3.Compact structure, centralized handle, small footprint, light weight, strong decomposition, easy to move, suitable for plains or mountain operations;
4.The use of ball clamping mechanism instead of chucks, downtime can be achieved without stopping, easy to operate, safe and reliable.

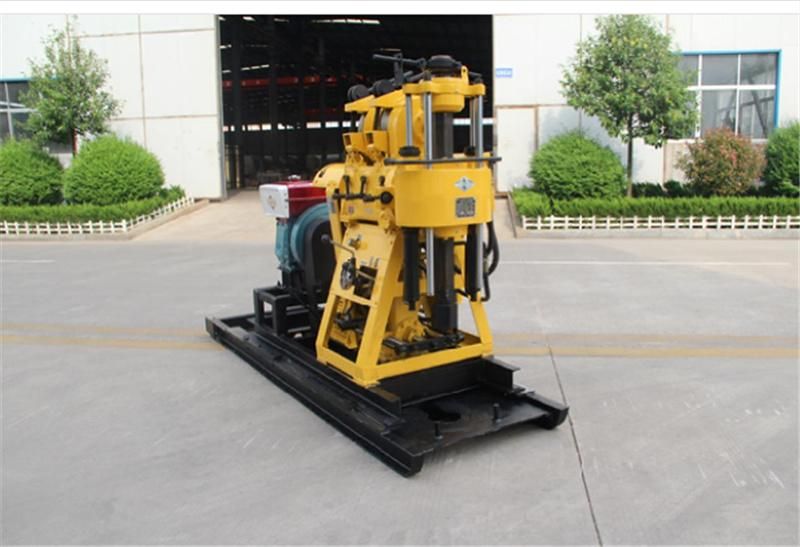

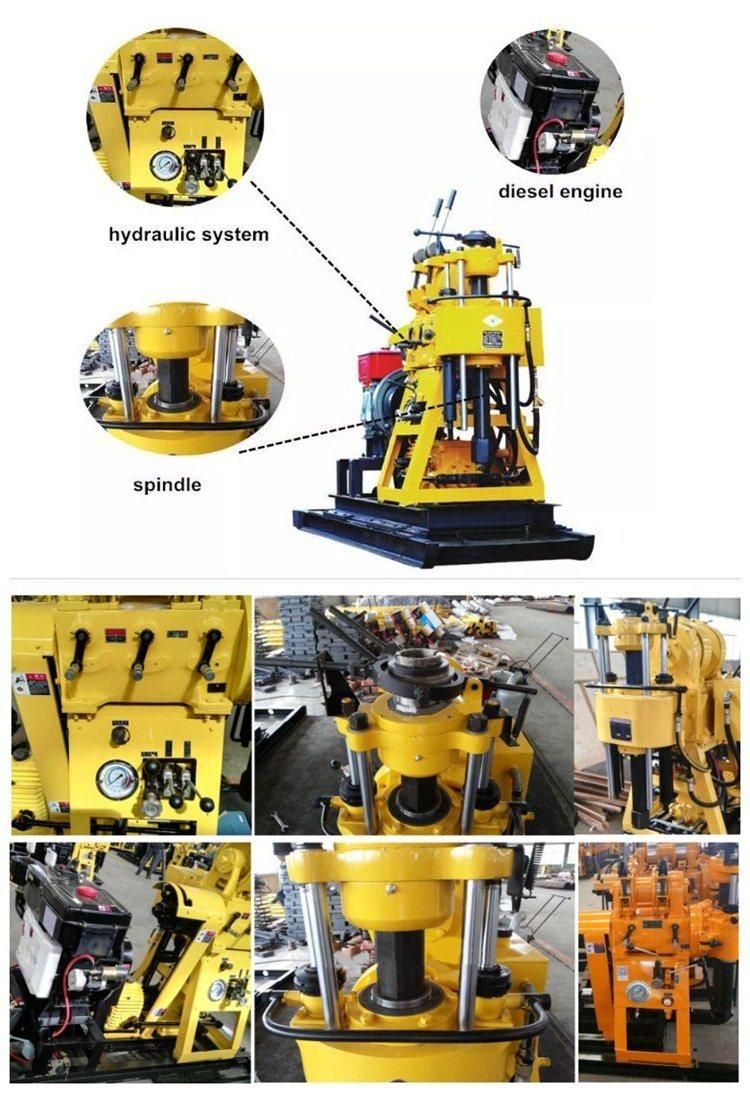

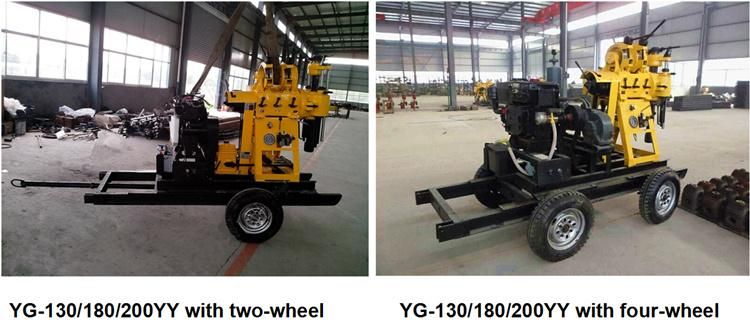

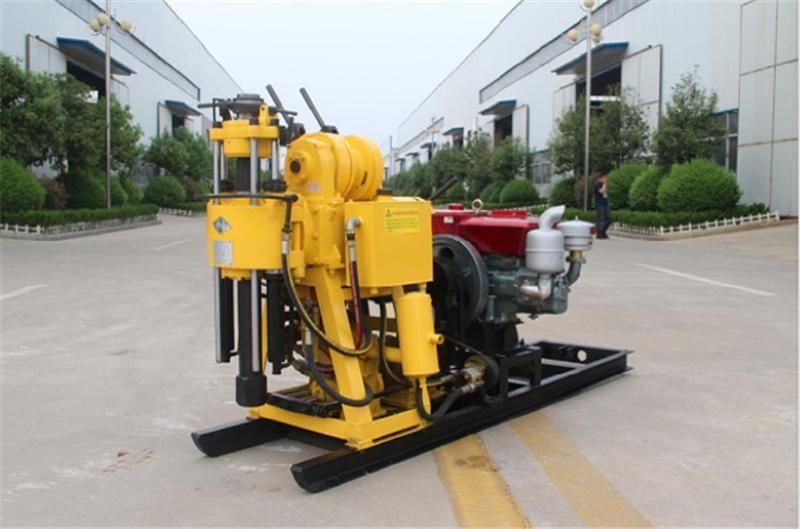

Product Display
Package Show

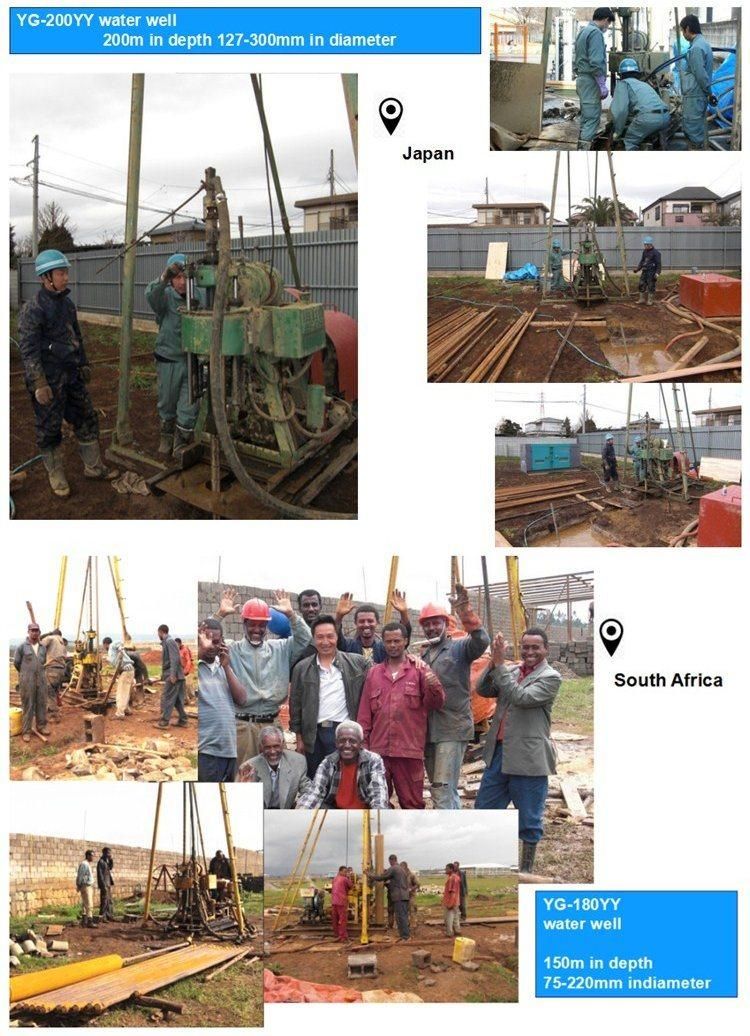

Working Pictures

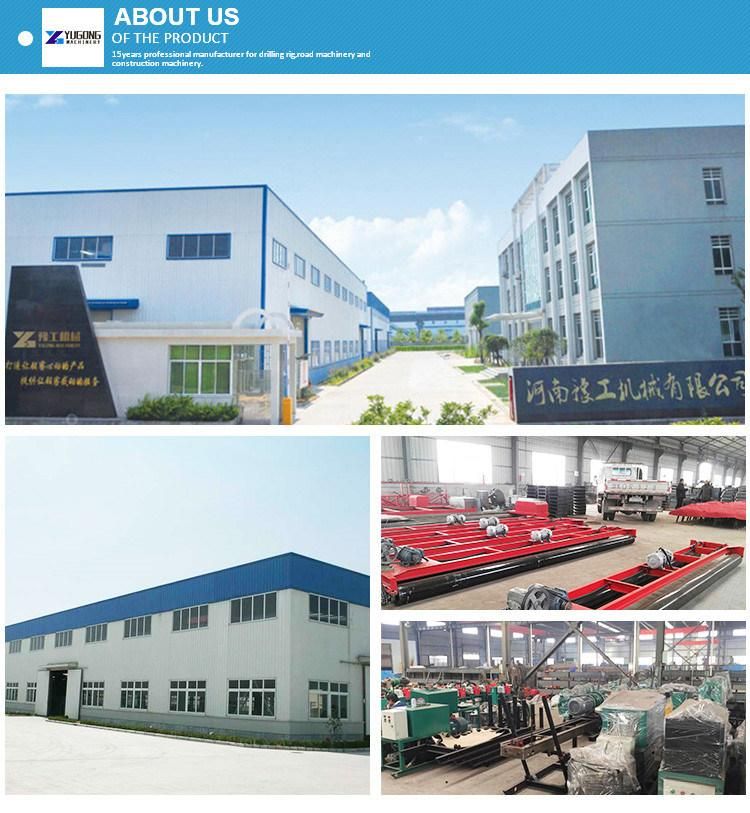

Company & Factory Information
Henan Yugong Machinery Co., Ltd located in Zhengzhou, Henan province, China. Its a large engineering machinery manufacturing enterprise which focus on research and development, production and sale kinds of drilling rigs. Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on. We insist on the strategy of technology research and development. Technical design, material purchasing, precised manufacturing and strict quality inspection are all processed according to the ISO9001 standard. Sincerely hope we can establish close, trustworthy and long term relationship with each customers. Any interests and needs about our Drilling rigs, please contact us.
