• Model NO.：GD2400-LS
• Type：Track
• Engine Power：2*194 ,2*242 Kw
• Max Torque：85000 N·m
• Max Mud Pump Flow：Extra Mud Pump
• Rig Weight：45000kg
• Transport Package：Nude Packing
• Specification：16600*2950*3400 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GD2400-LS Type Track Engine Power 2*194 /2*242 Kw Max Torque 85000 N·m Max Mud Pump Flow Extra Mud Pump Rig Weight 45000kg Transport Package Nude Packing Specification 16600*2950*3400 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1. Hydraulic system: Push-pull rotation walking adopt closed-circuit system, electro-hydraulic proportional control.
2. Equipped with two diesel engines, one or two engines working is realized to meet different conditions, and thus saving energy. If one set hydraulic system or one of the twin engines breaks down, the other one can still be operated normally (same force, lower speed), greatly improve construction safety.
3. Front and back clamping can be separated, clamping floated in whole process.
4. Equipped with φ127 or φ140 ×9600mm drill pipe;Floating spindle is in favor of protecting drill pipe thread.
5. Floating girder is easy to loading, unloading, climbing and transportation, convenient for adjusting entry angle, which can effectively protect clamps.
6. Proportional wire control walking system ensures man and rig safety in the process of walking, loading and uploading.
7. Electrical control handle, simple electric circuit, safe, reliable, high sensitivity
8. Spacious operation cab is with adjusted seat, more human, more comfortable.
9. To enhance the executing mechanism ability, hydraulic system is designed in conformity to large flow and high pressure. Our self-designed inserting control valve group reacts fast and reduces 50% pressure loss in hydraulic system.
10. Self-designed and developed, combined electronic controlling system realizes its adaptive control to different working condition and different geologic strata,improving the efficiency of construction 30%. System is configured with both auto-operation and man-operation. Auto-operation could timely adjust the running parameter according to the strata situation and automatically adjust the rig for rig protection.
11. Liquid crystal system man and rig exchange can monitor rig condition any time, which can adjust rig work, alarm parameter, making operation simpler and more comfortable.
12. Rational and effective washing and cooling system ensures safety, reliability and efficiency of system, and extends motor using life, avoids motor damages.

[Main Technical Parameters]


Engine Power	2*194 /2*242 kw	Max. Torque	85000 N·m
Rig Weight	45000 kg	Dimension(L*W*H)	16600*2950*3400 mm
Max. Push & Pull Force	2460 kn	Max. Rotation Speed	100 r/min
Max. Push & Pull Speed	35 m/min	Max. Mud Pump Flow	Extra mud pump
Caterpillar Walking Speed	4 km/h	Max. Mud Pump Pressure	Extra mud pump
Enter Drill Angle	9-22°	Max. Climbing Gradient	18°
Max. Aperture Diameter	Φ2000 mm(Soil Depended)	Max. Crossing Length	2000 m(Soil Depended)

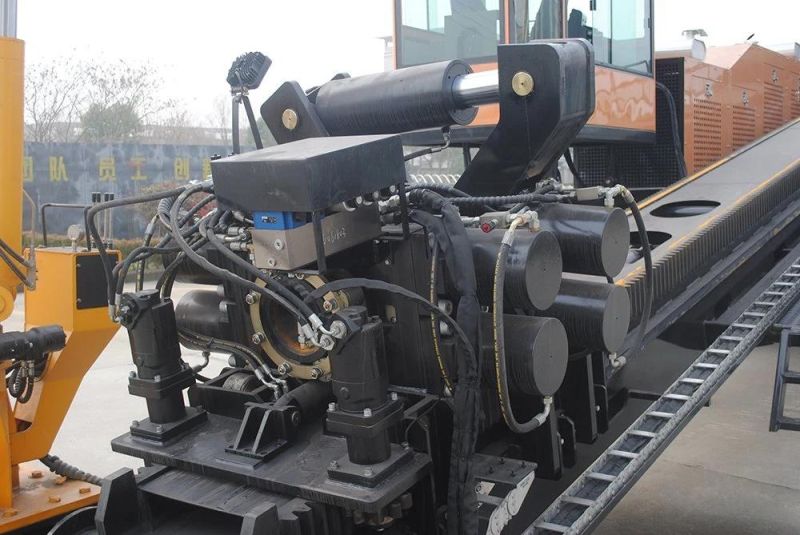

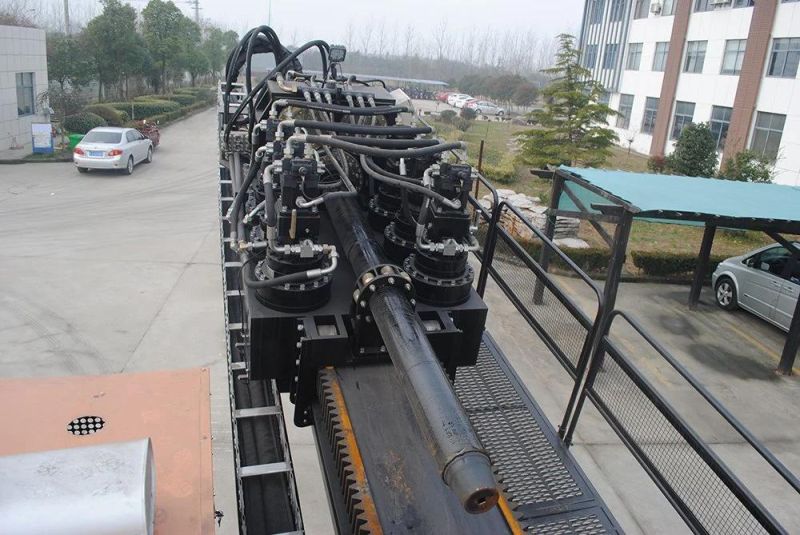

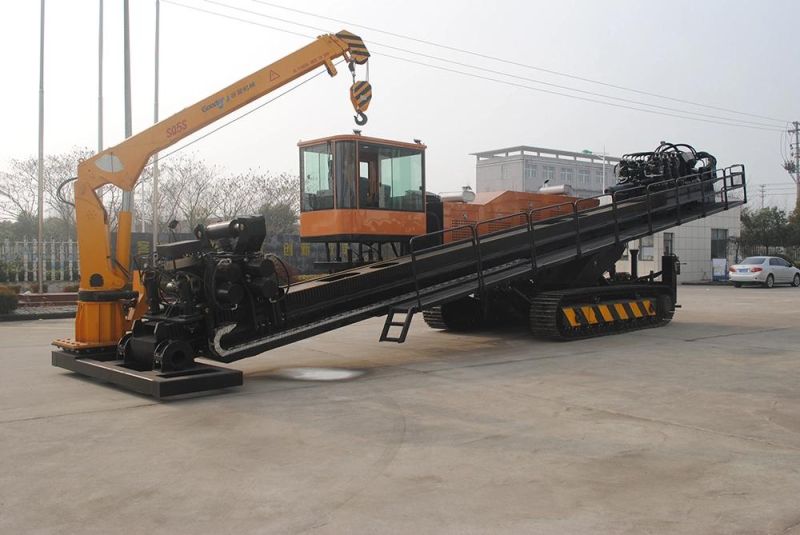

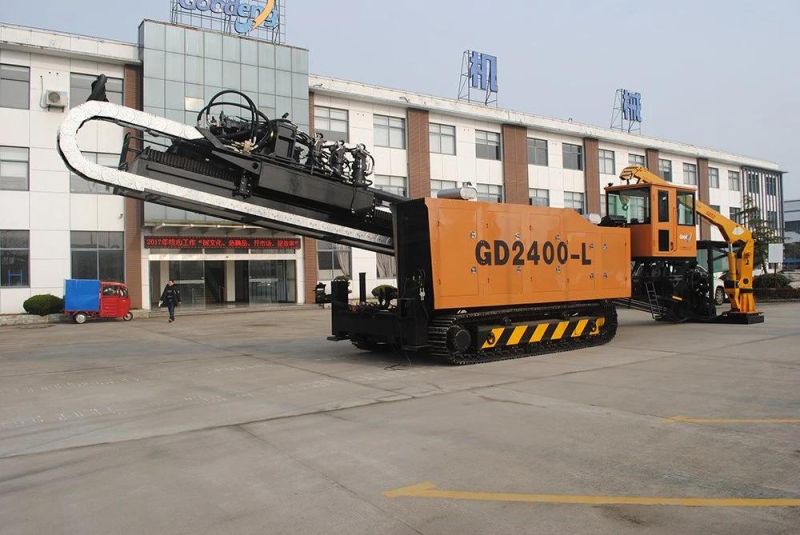

[Product Photos ]






[Company Information]




[Company Profile]

"Goodeng Machine", founded in May 2002, is specialized in research & development, manufacturing, sales and service for trenchless equipment, static-pressure pile pressing-in & pile planting machine, and geological drilling equipment. Our main products are GD series of horizontal directional drilling machine. As mechanization Research branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team's support, which is filled of multiple domestic and abroad blanks. More products have obtained national and provincial progress prize in science and technology of machinery industry.

[Competitive Advantage]
  1. Competitive Price: We work as the leading dealers of various leading China construction machinery factories, and are treated with best dealership prices every year. From numerous comparisons and feedbacks from clients, our price is more competitive than other factories.
2. Quick Response: Our team is consisted of a group of deligent and enterprising people, working 24hrs/day to respond clients'  inquiries and questions all the time. Most problems can be solved within 12 hours.

[FAQ]

1. What about the warranty time?
    A:12 months after shipment or 2000 working hours,whichever occuts first.
2. What about the delivery time?
    A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
    A:On T/T term, 30% down payment is required in advnce, and 70% balance shall be before shipment, or
        against the copy of original BL for old client.
        On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
    A: We can ship machine by sea and road.
