Wd-100 Portable Engineering Geological Drilling Rig

Qingdao Bohwa Machinery Corporation
  • Certification:ISO 9001:2000
  • Condition:New
  • Drill Hole Diameter:100-150mm
  • Drill Hole Depth:100m
  • Bit Type:Diamond Bit
  • Drilling Way:Rotary

Base Info

  • Model NO.:WD-100
  • Type:Skid Base
  • Overall Dimensions 1:with Diesel Engine: 1400×800×1120 mm
  • Overall Dimensions 2:with Electric Motor: 1400×700×1120 mm
  • Weight:500kg

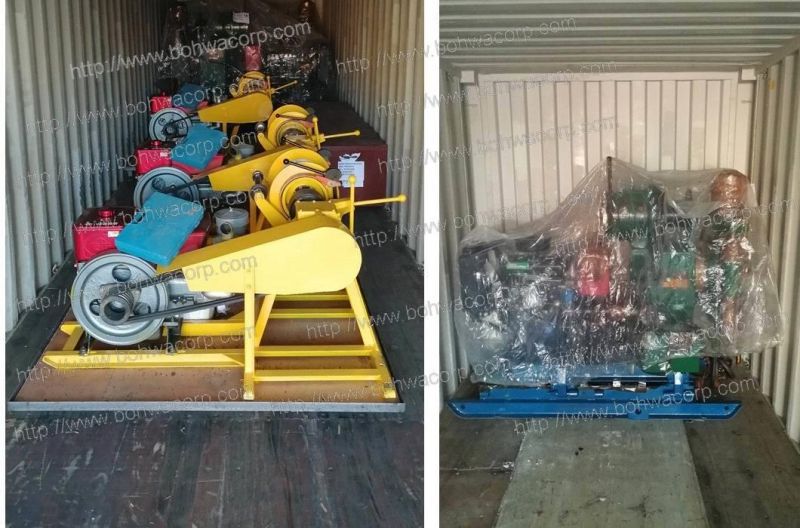

  • Transport Package:Nude Packing
  • Specification:With Diesel Engine: 1400× 800× 1120 mm
  • Trademark:Bohwa
  • Origin:China
  • HS Code:84304900
  • Production Capacity:20 Sets Per Month

Description

Basic Info.

Model NO. WD-100 Type Skid Base Overall Dimensions 1 with Diesel Engine: 1400×800×1120 mm Overall Dimensions 2 with Electric Motor: 1400×700×1120 mm Weight 500kg Transport Package Nude Packing Specification With Diesel Engine: 1400× 800× 1120 mm Trademark Bohwa Origin China HS Code 84304900 Production Capacity 20 Sets Per Month

Product Description

Product description

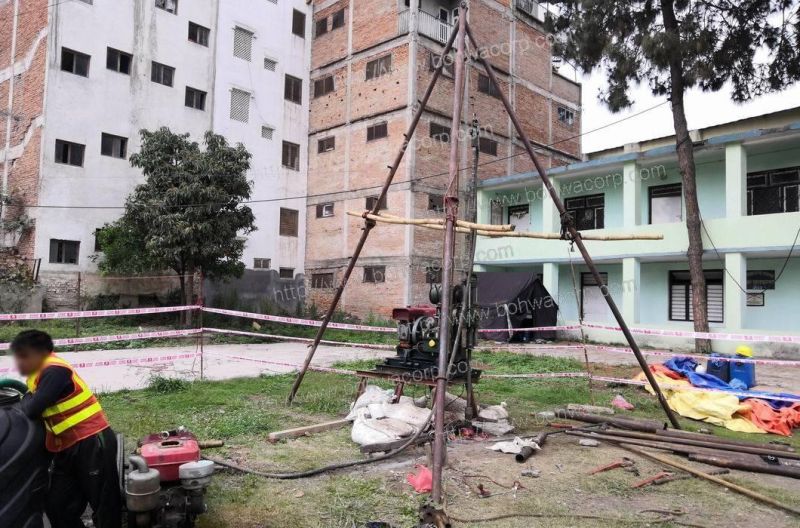

WD-100 is a simple rig  suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. Typically, it is mainly used for:
1)    Core Drilling with Conventional Coring Tools.
2)    Water Well Drilling by Carbide and Rotary Drilling.
3)    SPT Test;
4)    Soil Sampling with Auger Drilling.
5)    Anchor Drilling
6)    Micro Piling.
7)    Geothermal Drilling


Technical Specifications

1.    Drilling Capacity
Opening Hole Dia.    150mm    150mm
Final Hole Dia.          150mm    75mm
Max. Drilling Depth    30m        100m
2.    Drilling Rod Dia : 42, 50 mm
3.    Drilling Angle: 0°~180°
4    Rotary Unit
1)    Spindle Speed: 118,260,392,863 rpm
2)    Spindle Stroke: 400 mm
3)    Max. Feeding Pressure: 18 kn
4)    Max. Lifting Capacity: 23kn
5)    Max. Spindle Output Torque: 630n.m
5.    Winch
1)    Max. Lifting Capacity: 10 kn (Single Wire)
2)    Drum Speed: 0.61,1.34m/s
3)    Diameter of steel cable: 9.3mm
4)    Drum Capacity24m
6.    Working Stroke of the Hydraulic Slider Base: 242mm
8.    Power
Diesel Engine: 8.8kw. Electric Motor: 7.5kw
9.    Overall Dimensions (L×W×H)
With Diesel Engine: 1400×800×1120 mm
With Electric Motor: 1400×700×1120 mm
10.  Weight: 500kg for rig on skid base, excluding the power unit.

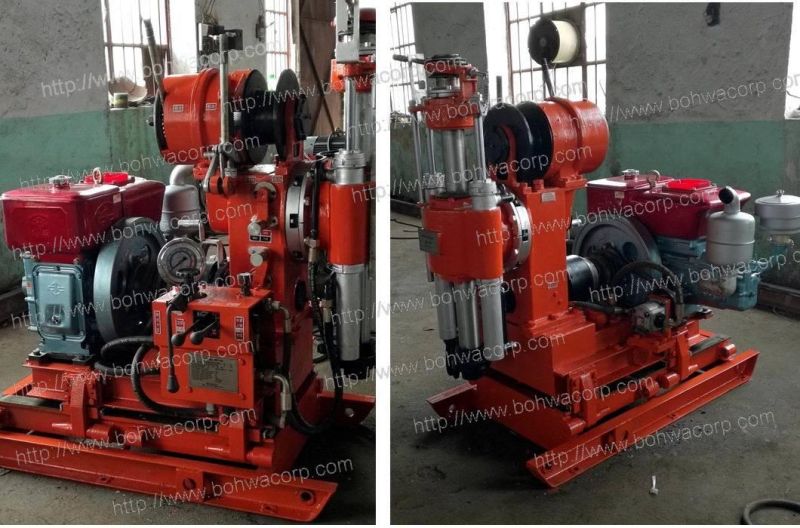

Wd-100 Portable Engineering Geological Drilling Rig
