Dfq-150W Water Well Drilling Rig for Hard Rocks
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.- Certification：BV&SGS
- Condition：New
- Drill Hole Diameter：105~203mm
- Drill Hole Depth：150m
- Product Name：Dfq-150W Water Well Drilling Rig for Hard Rocks
- Application：Hard Rock, Water Well Drilling Rig
Base Info
- Model NO.：DFQ-150W
- Color：Yellow, Blue or as Require
- Work Pressure：1.05-2.0 MPa
- System：Hydraulic Control
- Feature：Working with DTH Hammer and Bits
- Transport Package：Standard Container
- Specification：3500X1770X2300mm
- Trademark：DEFY
- Origin：Henan, China
- Production Capacity：100 Sets Per Month
Description
Basic Info.
Model NO. DFQ-150W Color Yellow, Blue or as Require Work Pressure 1.05-2.0 MPa System Hydraulic Control Feature Working with DTH Hammer and Bits Transport Package Standard Container Specification 3500X1770X2300mm Trademark DEFY Origin Henan, China Production Capacity 100 Sets Per MonthProduct Description

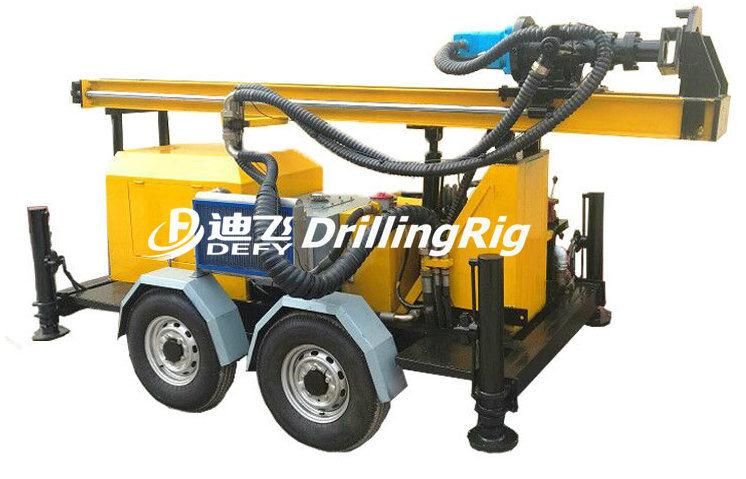

DFQ-150W water well drilling rig for hard rocks
General Description
DFQ-150W water well drilling rig is a kind of light weight, high efficiency and multi-function drilling equipment, it is suitable for drilling water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas. It is much more efficient than the traditional rotary drilling rigs ,can create very considerable economic benefit for users.
DFQ-150W water well drilling rig solve the problems to drill very hard rocks,gravel, pebble stratum that the tradition drilling rigs are difficult to drill.DFQ-150W can work efficiently under all kinds of geological
structure.
Product Parameters
| No. | Item | Parameter |
| 1 | Drilling caliber | Φ105-203mm |
| 2 | Max. drilling depth | 150m |
| 3 | Diameter of drill pipe | Φ76 |
| 4 | Unit Length of drill pipe | 2000mm |
| 5 | Work pressure | 1.05-2.0 MPa |
| 6 | Gas consumption | 15~24 m³/min |
| 7 | Impacter | DHD350360 |
| 8 | Impacting frequency | 1200-1500Hz |
| 9 | Apply to rock hardness | f=6-12 |
| 10 | Power | 44Kw/2000rpm |
| 11 | Ground clearance | 210mm |
| 12 | Leg cylinder stroke | 600 mm |
| 13 | System pressure | 20MPa |
| 14 | Propulsion | 5.5 tonf |
| 15 | Lifting force | 10 tonf |
| 16 | Speed of spindle | Fast 120 rpm Slow 85 rpm |
| 17 | Rotary torque | 2000N.m |
| 18 | Weight | 2800 Kg |
| 19 | Dimension | L3500×W1770×H2300mm |
Certifications
Our Service

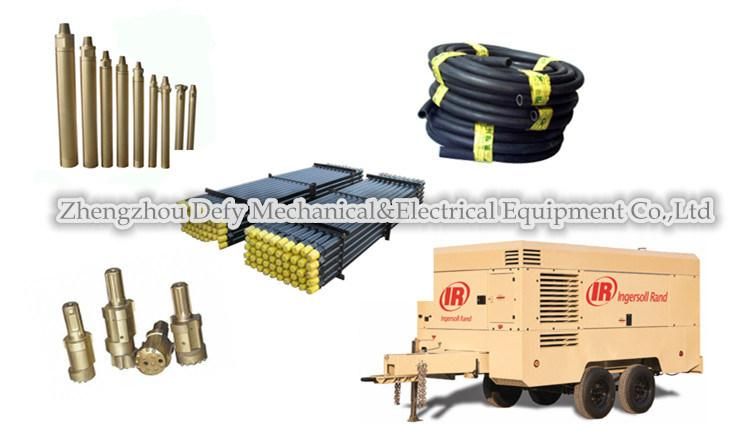

1. Provide factory cost accessories all year
2. Engineers are available to service machine overseas or free training in factory
3. Online service 24hours*7 days
4. 12 months quality warranty for main body

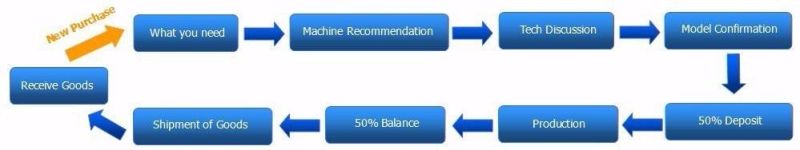

How To Buy
