All-Hydraulic Operated Water Well Drilling Rig with Mud Pump/Air Compressor
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.- Condition:New
- Drilling Way:Can Work with Air Compressor and Mud Pump
- Type:Rotary Drilling Rig
- Max. Drilling Depth:200m
- Drilling Diameter:105~203mm
- Rock Hardness:F=6~12
Base Info
- Model NO.:DFQ-200W
- Mounted on:Crawler
- Support Legs:Hydraulic, 900~1500mm Stroke
- Working:Fully Hydraulic Controlling
- Good at:Fast Drilling Speed, Specially for Rocky Areas
- Use Range:Water Wells, Geothermal Air-Conditioning Well etc.
- Usage:Water Well
- Power Type:Diesel
- Transport Package:Standard Export Packing
- Specification:ISO&SGS&BV
- Trademark:DEFY
- Origin:China Mainland
- Production Capacity:100 Sets Per Month
Description
Basic Info.
Model NO. DFQ-200W Mounted on Crawler Support Legs Hydraulic, 900~1500mm Stroke Working Fully Hydraulic Controlling Good at Fast Drilling Speed, Specially for Rocky Areas Use Range Water Wells, Geothermal Air-Conditioning Well etc. Usage Water Well Power Type Diesel Transport Package Standard Export Packing Specification ISO&SGS&BV Trademark DEFY Origin China Mainland Production Capacity 100 Sets Per MonthProduct Description
DEFY Brand/Model DFQ-200W All-Hydraulic Operated Water Drilling Rig with Mud pump/Air CompressorI. Features
1. Fully hydraulic controlling system,highly automated,high working efficiency,saving labor force.
2. Powerful cylinder,strong propulsion and lifting force for drilling deep holes.
3. Innovative embedded idler pulley structure,carriage stroke is increased to handle the drill pipes more easily.
4. Four hydraulic support legs,can rise and fall automatically,easy for the rig to be loaded and unloaded.
5. Centralized control of the hydraulic control console, convenient to operate.
6. Chassis can be wheels,crawler or truck,as per your need.
7. Hammer rotary drilling method,making it more easily and efficiently to drill rock ground.
No. | Item | Parameter |
1 | Drilling caliber | Φ105-203mm |
2 | Max. drilling depth | 200m |
3 | Diameter of drill pipe | Φ63.5,Φ73 |
4 | Unit Length of drill pipe | 3000mm |
5 | Work pressure | 1.05-2.0 MPa |
6 | Gas consumption | 10~24 m³/min |
7 | Impacter | DHD350360 |
8 | Impacting frequency | 1200-1500Hz |
9 | Apply to rock hardness | f=6-12 |
10 | Power | 50Kw/2200rpm |
11 | Grade ability | 25° |
12 | Walking speed | 0~2.0 Km/h |
13 | Ground clearance | 215mm |
14 | Rotary torque | 2000N.m |

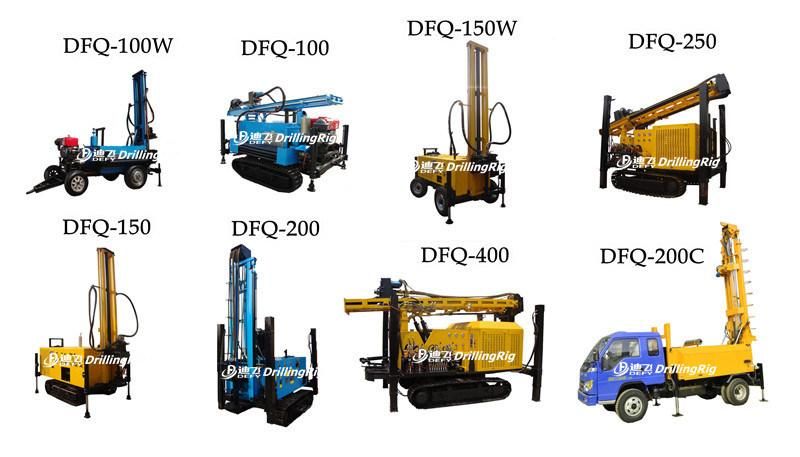

III. DFQ Series of different capability
Model | Movement | Borehole Diameter | Drilling Depth |
DFQ-100 | Crawler | 105~150mm | 100m |
DFQ-100W | Wheel trailer | 105~150mm | 100m |
DFQ-150 | Crawler | 105~203mm | 150m |
DFQ-150W | Wheel trailer | 105~203mm | 150m |
DFQ-200 | Crawler | 115~203mm | 200m |
DFQ-200W | Wheel trailer | 115~203mm | 200m |
DFQ-300 | Crawler | 115~305mm | 300m |
DFQ-400 | Crawler | 115~350mm | 400m |
DFQ-500 | Crawler | 115~350mm | 500m |

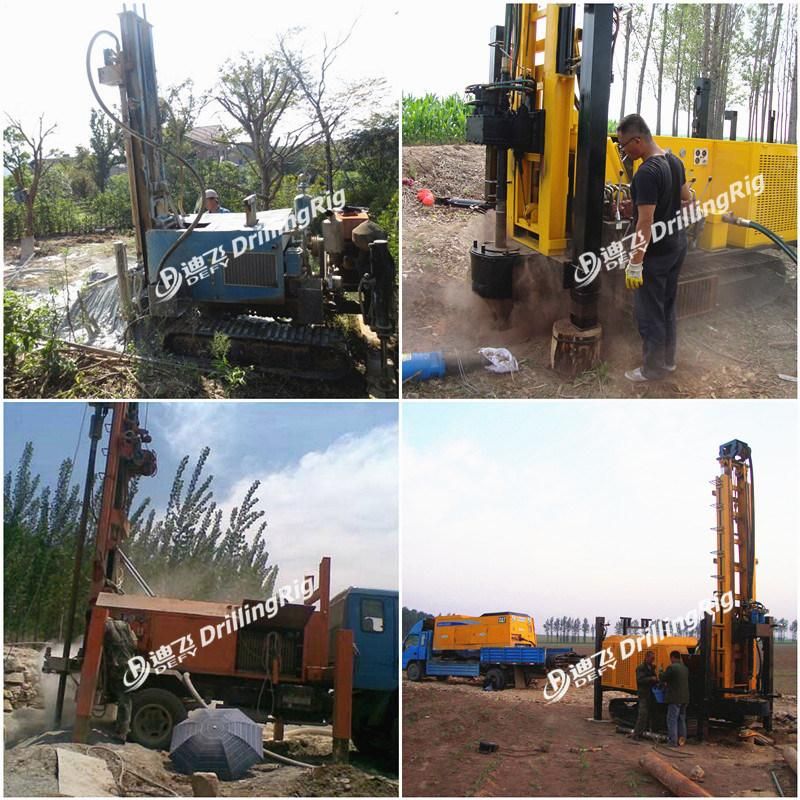

IV. DFQ drilling rigs are serving on site
Contact Information:
Please contact us for the price quotation and details of the drilling equipment according to your requirements.Thank you! ^_^ .
