Df-150s Mini Portable Water Well Drilling Rig Machine
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.- Certification：BV&SGS
- Condition：New
- Drill Hole Diameter：115-254mm
- Drill Hole Depth：150m
- Drilling Way：Rotary
- Product Name：Df-150s Mini Portable Water Well Drilling Rig
Base Info
- Model NO.：DF-150S
- Color：Customized
- Work Pressure：1.0~2.0 MPa
- Feeding Stroke：1500mm
- System：Hydraulic Control
- Transport Package：Standard Container
- Specification：4300x1270x1500mm
- Trademark：DEFY
- Origin：Henan, China
- Production Capacity：200 Sets Per Month
Description
DF-150S Technical ParameterDimension(mm) 4300×1270×1500 Caliber(mm) 115~254 Max depth(m) 150 Walking speed(Km/h) 0-2 Feeding stroke(mm) 1500 Grade ability(°) 30 Work pressure(MPa) 1.0~2.0 Air consumption(m³/min) 10~20 Leg cylinder stroke(mm) 1600 Ground clearance(mm) 200 Diameter of the drill pipe(mm) 76/89/102 Axial pressure(N) 28000 Lifting force(N) 58000 Hoist(N) 15000 Rotary torque(Nm) 3600 Power(Kw) 24 Impact frequency 840/1500 Apply for rock hardness(f) 6~20
Exhibition
Our Service
1. Provide factory cost accessories all year
2. Engineers are available to service machine overseas or free training in factory
3. Online service 24hours*7 days
4. 12 months quality warranty for main body

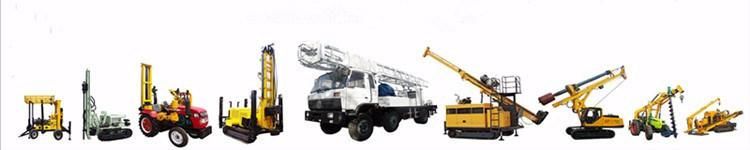

Rich Product Series
FAQ
1. Q: Whether you are a manufacture or trading company?
A: We are a professional manufacturer of drilling equipment and you are welcomed to visit our factory at any time. We have the core technology and keep researching and developing all the time, to provide high quality products and best service.
2. Q: I don't which machine to choose because of there are so many machines.
A: As a professional manufacturer, we provide turn-key solution of drilling machine. If you have any doubt about what type of the machine you need, send an email to us and your question will be solved quickly.
3. Q: I am not familar with a new machine, how to use it?
A: First, the machine is not too complex to make people feel fuzzy. Second, we provide operation manual and DVD to guide you. Then, we also provide Free training in our factory if you were possible to come;
4. Q: How can I change the broken parts if the machine got problems?
A:We provide some wearing parts for you when the first time you purchase goods from us;We also provide wearing parts for your choice.
Contact Information
Any questions, please send E-mail or scan QR code and add my WeChat.
