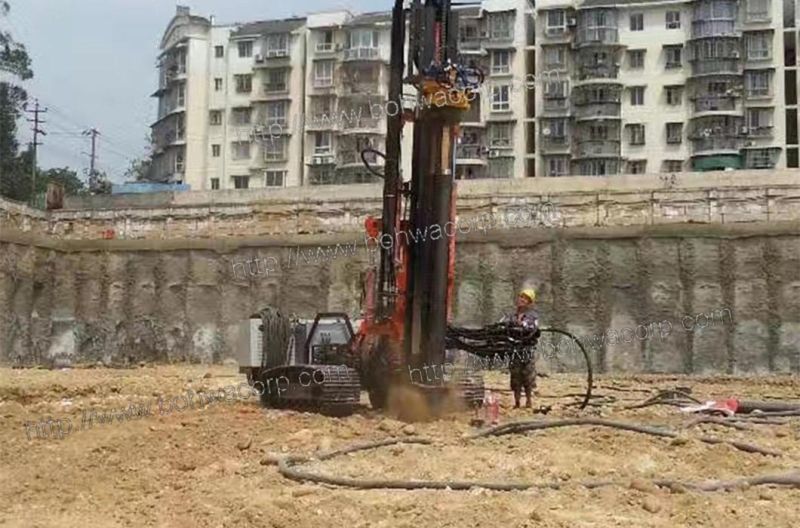

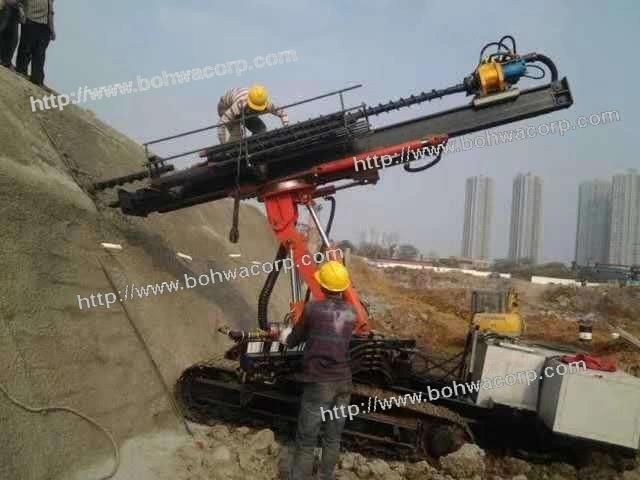

Hydraulic Crawler Anchor Drilling Rig /Blast Hole
Qingdao Bohwa Machinery Corporation- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：70-230mm
- Drill Hole Depth：10-80m
- Bit Type：Diamond Bit
- Drilling Way：Compound
Base Info
- Model NO.：Bh-AD01
- Type：Crawler
- Drilling Angle(°)：0-360
- Drill Pipe Size(mm)：ø76,ø89X1500
- Rotator Max. Pulling Force(Kn)：25-60
- Rotator Max.Feeding Force(Kn)：15
- Torque(N·m)：1500-4200
- Rotationspeed(Rpm)：45-66
- Feeding Stroke(mm)：1800
- Air Consumptino(M²Min)：9-21
- Rated Pressure(MPa)：17
- Recommended Hammer：CIR,DHD
- Drilling Method：Impact Rotary Drilling
- transportation Dimension(mm)：2900X350X550
- Transport Package：Nude Packing
- Specification：80m
- Trademark：BOHWA
- Origin：China
- HS Code：84304129
- Production Capacity：20 Set,Sets Per Month
Description
Basic Info.
Model NO. Bh-AD01 Type Crawler Drilling Angle(°) 0-360 Drill Pipe Size(mm) ø76,ø89X1500 Rotator Max. Pulling Force(Kn) 25-60 Rotator Max.Feeding Force(Kn) 15 Torque(N·m) 1500-4200 Rotationspeed(Rpm) 45-66 Feeding Stroke(mm) 1800 Air Consumptino(M²Min) 9-21 Rated Pressure(MPa) 17 Recommended Hammer CIR,DHD Drilling Method Impact Rotary Drilling transportation Dimension(mm) 2900X350X550 Transport Package Nude Packing Specification 80m Trademark BOHWA Origin China HS Code 84304129 Production Capacity 20 Set/Sets Per MonthProduct Description
Hydraulic Crawler Anchor Drilling Rig /blast holeSpecification:
| Model | MGD-30 | MGD-40 | MGD-50 | MGD-70 |
| Hole Dia(mm) | 70-150 | 75-150 | 90-180 | 90-230 |
| Depth(m) | 10-30m | 20-40 | 0-60 | 35-80 |
| Drilling Angle(°) | 0~90° | 0~360 | 0-360 | 0-90 |
| Drill Pipe Size(mm) | Ф60x1500,Ф76x1500 | ø73,ø76,ø89x1500 | ø76,ø89x1500 | ø76,ø89x1500 |
| Rotator Max. Pulling Force(kn) | 25 | 25 | 60 | |
| Rotator Max.Feeding Force(kn) | 15 | 15 | ||
| Torque(n·m) | 1500 | 1700 | 3000 | 4200 |
| RotationSpeed(rpm) | 45-66 | 40 | 0-35 | |
| Feeding Stroke(mm) | 1800 | 1800 | 1800 | 1800 |
| Air Consumptino(m²min) | 9-21 | 9-21 | 9-21 | 9-21 |
| Rated Pressure(Mpa) | 17 | |||
| Recommended Hammer | CIR,DHD | CIR,DHD | CIR,DHD | CIR,DHD |
| Drilling Method | Impact rotary drilling | Impact rotary drilling | Impact rotary drilling | Impact rotary drilling |
| E-motor Power(KW) | 7.5 | 7.5+4+0.25 | ||
| Weight(kg) | 220 | 450 | ||
| Transporation Dimension(mm) | 2900x350x550 | 3200x900x1150 |
