Diamond Core Drilling Rig Civil Engineering Drilling Rig
Qingdao Bohwa Machinery Corporation- Certification：ISO 9001:2000
- Condition：New
- Drill Hole Diameter： 75mm 219mm 500mm
- Drill Hole Depth：240m 120m 30m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：WD-320
- Type：Skid Base
- Overall Dimensions：with Electric Motor: 1800X1150X1600 mm
- Diamond Core Drilling Machine Weight：750kg for Rig on Skid Base, Excluding The Power Un
- Diamond Core Drilling Angle：0 Degree~180 Degree;
- Diamond Core Drilling Rod Dia.：50 mm or 60 mm
- Diamond Core Drilling Bits：Optional
- Diamond Core Drilling Tools：Optional
- Diamond Core Drilling Mast：Optional

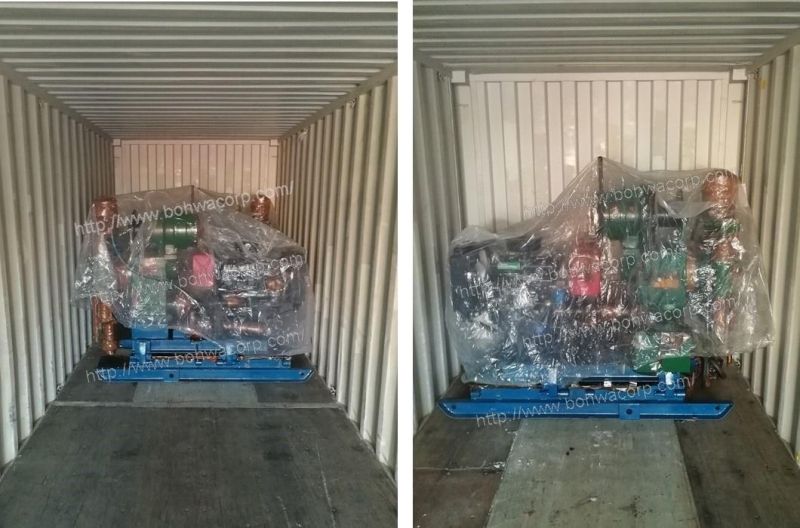

- Transport Package：Nude Packing,Wooden Case
- Specification：With Diesel Engine: 1800x1150x1600 mm
- Trademark：Bohwa
- Origin：China
- HS Code：84304900
- Production Capacity：30 Sets,Months
Description
Note: Drilling depth varies according to the local formation1.Drilling Angle: 0°~90°2.Rotary Unit
1. Max. Lifting Capacity:30KN (Single Wire) 2. Drum Speed:0.45, 0.71, 1.0, 1.64 m/s4.Working Stroke of the Hydraulic Slider Base:465mm
- Spindle Speed: 1) Clockwise: 55, 88, 130, 200, 305, 478, 695, 1100rpm; 2) Reverse: 48, 75 rpm
- Max. Spindle Output Torque: 3300N.m
- Max. Lifting Capacity:52 KN
- Max. Feeding Pressure:36KN
- Spindle Stroke:500mm
1. Max. Lifting Capacity:30KN (Single Wire) 2. Drum Speed:0.45, 0.71, 1.0, 1.64 m/s4.Working Stroke of the Hydraulic Slider Base:465mm
