• Model NO.：XY-200
• Drilling Way：Rotary
• Diameter of Drill Pipe：42,50mm
• Drilling Angles：90-75 Degrees
• Max. Lifting Capacity of Hoist (Single)：15kn
• Kelly Bar：4.3m,PC
• Applications：Core Drilling,Soil Investigation,Civil Engineering
• Chassis：Moving Skid Base
• Warranty：6-12 Months
• Shipment：5-7 Days
• Mud Pump：Bw160,Water Pump
• Maximum Lifting Capacity of Hoist：15kn (Single Wire)
• Transport Package：Customized
• Specification：1900X850X1490mm
• Trademark：Bohwa
• Origin：China
• HS Code：8430490000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. XY-200 Drilling Way Rotary Diameter of Drill Pipe 42/50mm Drilling Angles 90-75 Degrees Max. Lifting Capacity of Hoist (Single) 15kn Kelly Bar 4.3m/PC Applications Core Drilling/Soil Investigation/Civil Engineering Chassis Moving Skid Base Warranty 6-12 Months Shipment 5-7 Days Mud Pump Bw160/Water Pump Maximum Lifting Capacity of Hoist 15kn (Single Wire) Transport Package Customized Specification 1900X850X1490mm Trademark Bohwa Origin China HS Code 8430490000 Production Capacity 30 Sets/Month

Product Description

200m Moving Skid Base Core Drilling Rig

Model No.: XY-200

I. Application

XY-200 drilling rig is the drilling rig with sliding skid base and modified by BW160 mud pump, which has the characteristics of large water output and fast drilling.

1. Engineering geological investigation of railway, hydropower, bridge, dam foundation and other projects.
2. Geological core drilling, soil investigation
3. Drilling of small grouting Confucius and blasting holes
4. Water well drilling

II. Technical Specifications

1) XY-200 Drill Rig with Sliding Skid Base
1.Drilling diameter:  75, 91, 110, 130, 150, 300mm
2.Drilling depth:  200, 150, 100m
3.Drilling angles:  90 ° -75 °
4.Diameter of drill pipe:  42 / 50mm
5.Drilling machine dimensions (L × W × H):  1790 × 820 × 1400mm
6.Maximum lifting capacity of hoist (single rope): 15 KN

2) Mud pump (optional): BW160 Mud Pump / Water Pump
A:Mud pump: BW160
1.Displacement Volume: 160 L / min
2.Working pressure: 1.3Mpa
3.Cylinder diameters: 95 mm
4.Piston stroke: 100mm
B:Water Pump
1.Displacement Volume: 95(77) L / min
2.Working pressure: 0.7Mpa
3.Cylinder diameters: 80 mm
4.Piston stroke: 100mm

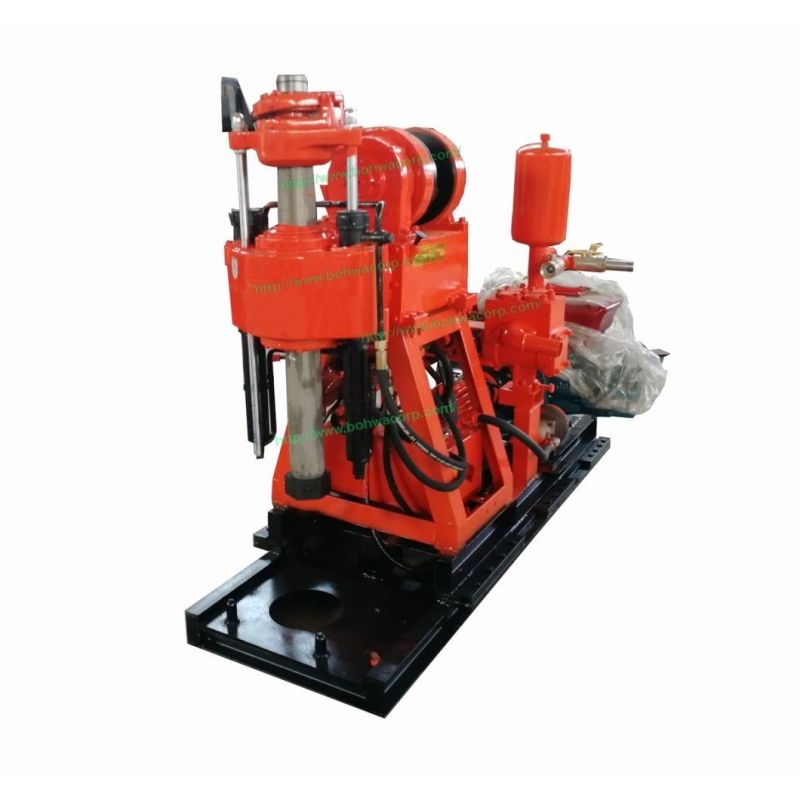

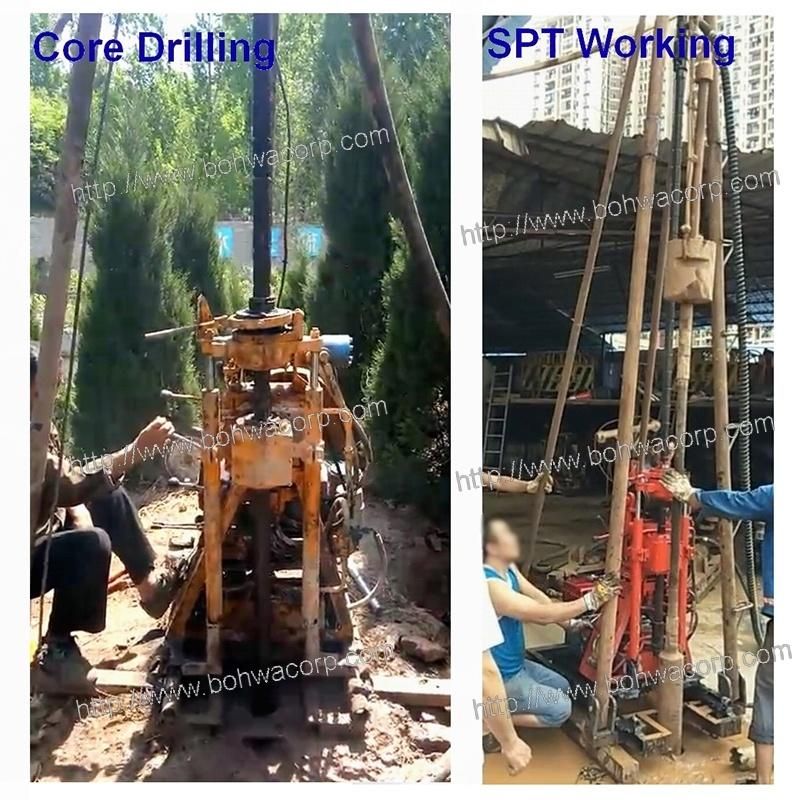

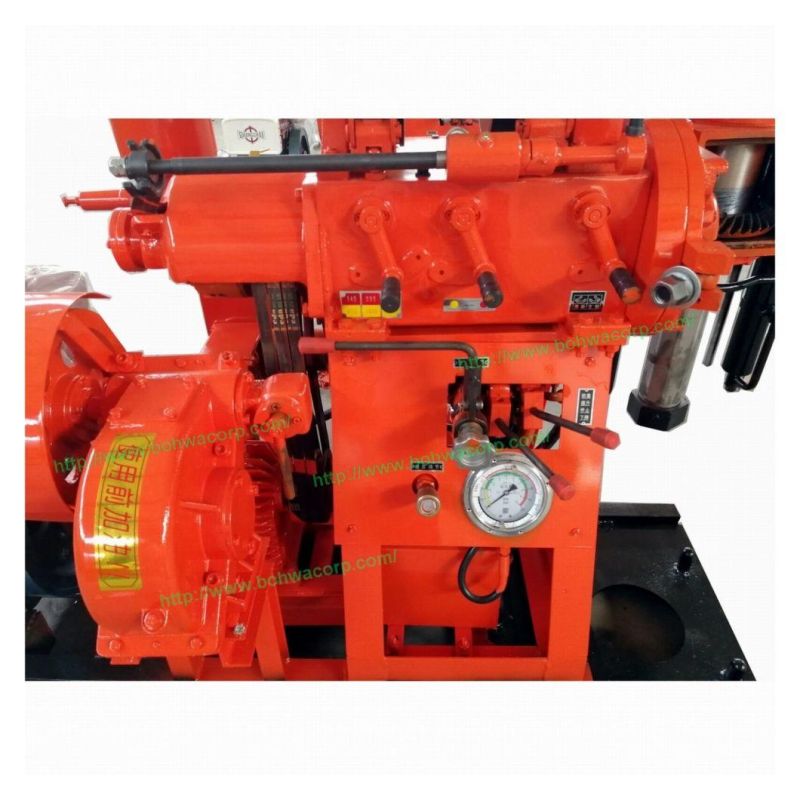

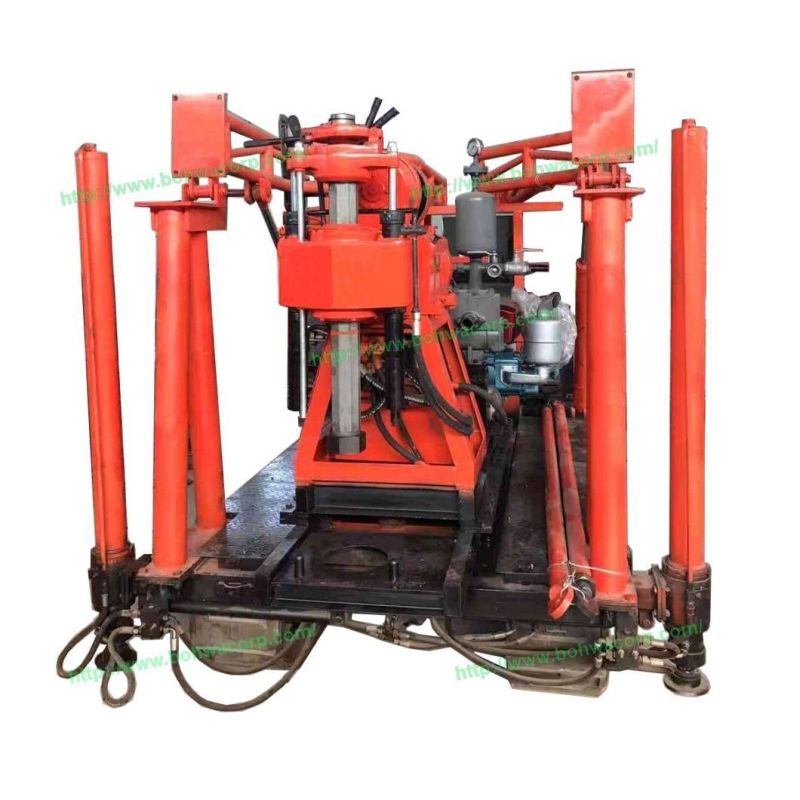

III. Photos
