Man Portable Drilling Rig for Exploration Drilling
Qingdao Bohwa Machinery Corporation- Certification：ISO 9001:2000
- Condition：New
- Motor：Diesel
- Drill Hole Diameter：75mm
- Drill Hole Depth：50m
- Bit Type：Diamond Bit
Base Info
- Model NO.：WD50A
- Drilling Way：Rotary
- Drill Pipe Diameter：42mm
- Kelly Bar：Dia.=50mm , L=1m
- Recommend Drill Pipe Length：0.75m
- Drilling Angle：90°
- Dimensions of Main Machine (L x W x H)：1400X600X1600mm
- Total Weight of Main Machine：300kg
- The Heaviest Part of Machine：70kg
- Spindle Rotary Speed：285, 570r,Min
- Spindle Stroke：1m
- Lifting Force：300kg
- Feeding Force：200kg
- Transport Package：Wooden Case
- Specification：Diesel Engine Power: 5.7kW,2200rpm
- Trademark：Bohwa
- Origin：China
- HS Code：84304900
- Production Capacity：20 Set,Sets Per Month
Description
Basic Info.
Model NO. WD50A Drilling Way Rotary Drill Pipe Diameter 42mm Kelly Bar Dia.=50mm / L=1m Recommend Drill Pipe Length 0.75m Drilling Angle 90° Dimensions of Main Machine (L x W x H) 1400X600X1600mm Total Weight of Main Machine 300kg The Heaviest Part of Machine 70kg Spindle Rotary Speed 285, 570r/Min Spindle Stroke 1m Lifting Force 300kg Feeding Force 200kg Transport Package Wooden Case Specification Diesel Engine Power: 5.7kW/2200rpm Trademark Bohwa Origin China HS Code 84304900 Production Capacity 20 Set/Sets Per MonthProduct Description
Man Portable Drilling Rig for Mountain Area Exploration Drilling
I. Product Description
WD-50 is a simple rig suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. Typically, it is mainly used for:
- Soil sampling with auger drilling.
- Anchor drilling
- Micro piling.
- Geothermal drilling.
- Core drilling with conventional coring tools.
- Water well drilling by carbide and rotary drilling.
II. Technical Specification

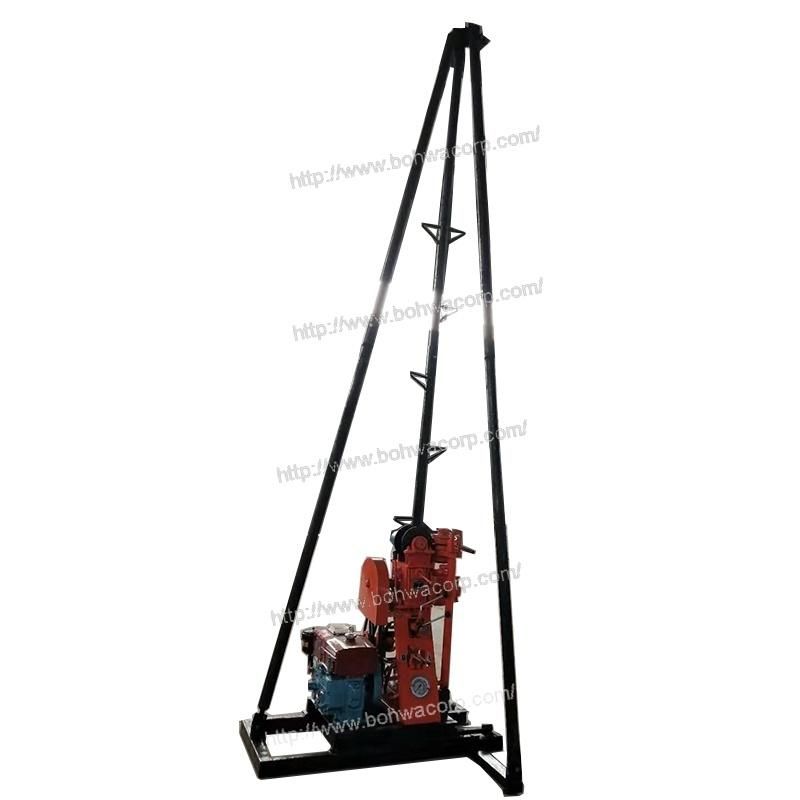

| Model No. | WD50 | WD50M (With Drill Mast) |
| Drill Pipe Diameter | 42mm | |
| Drilling Hole Diameter | 75mm | |
| Drilling Depth | 50 m | |
| Kelly Bar | Dia.=50mm / L=1m | |
| Recommend Drill Pipe Length | 0.75m | 2m |
| Drilling Angle | 90° | |
| Diesel Engine Power | 5.7kW/2200rpm | |
| Dimensions of Main Machine (L x W x H) | 1400x600x1600mm | 1400x600x1200mm |
| Total Weight of Main Machine | 300KG | |
| The Heaviest Part of Machine | 70KG | |
| Spindle Rotary Speed | 285, 570r/min | |
| Spindle Stroke | 1m | |
| Lifting Force | 300KG | |
| Feeding Force | 200KG |

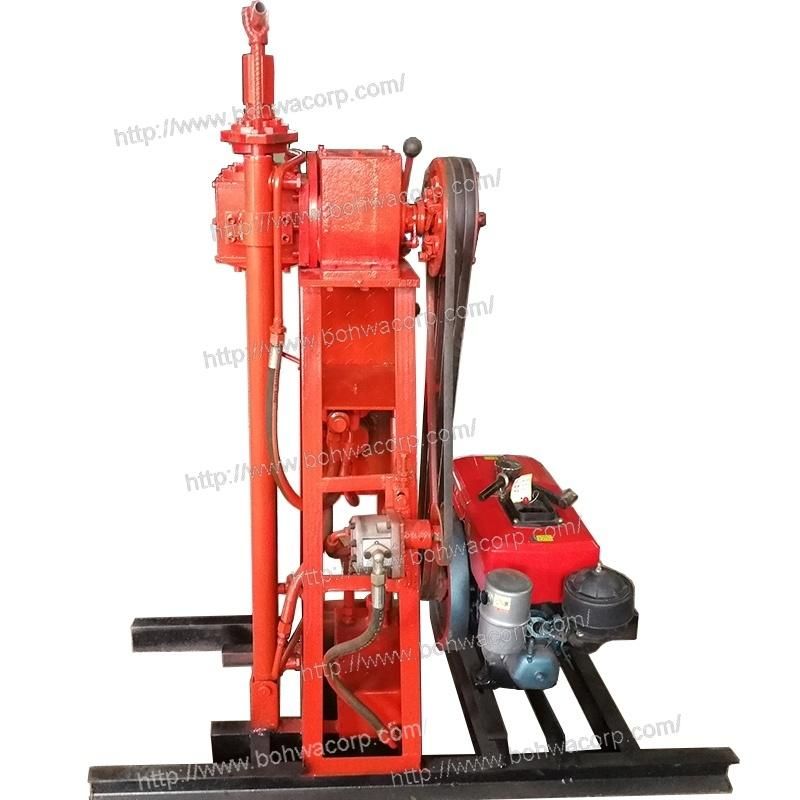

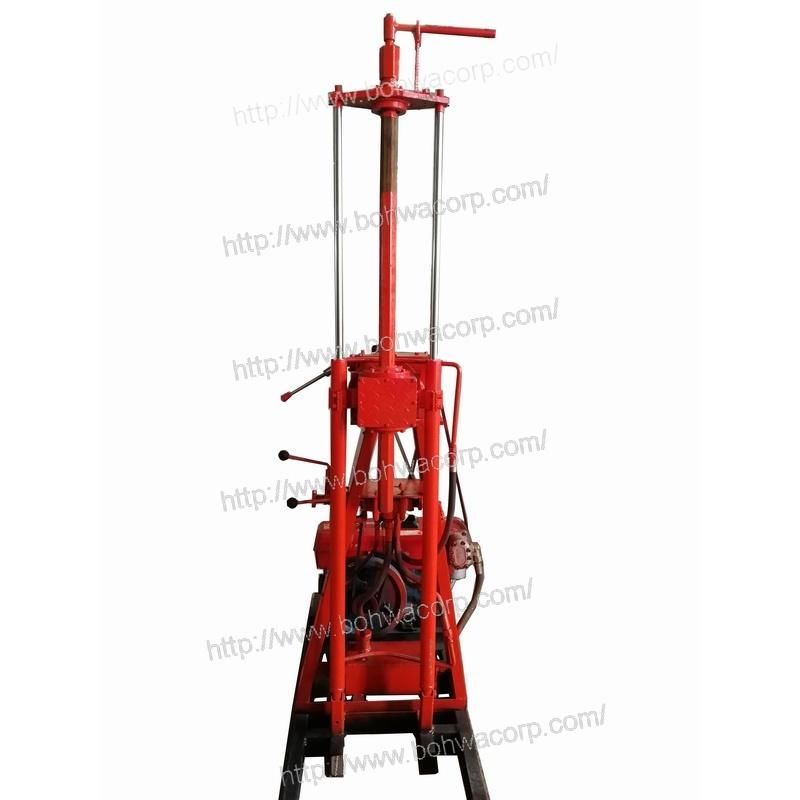

IV. Photos
