• Model NO.：JC860
• Drilling Way：Rotary
• Rotation Torque：3300 N.M
• Rotation Speed：0-112 Rpm
• Air Consumption：17-21 M3,Min
• Transport Package：20gp Container
• Specification：6000*2150*2500 mm
• Trademark：JCDRILL
• Origin：China
• HS Code：8430419000
• Production Capacity：5000 PCS,Year

1

Rock Hardness

F=6-20

2

Hole Diameter

90-152mm

3

Hole Depth

40m

4

Drilling Rod Diameter60,76,89 mm

5

Air consumption

17-21 m³/min

6

Max swing of guide

Lift45° Right45°

7

Max dump of guide

180°

8

Rotation Speed(Normal and Fast)

0-82/0-112rpm

9

Rotation Torque

3300N.m

Feeding System

10

Max. Feed force

25 KN

11

Max. Lifting force

30 KN

12

Max. Feed Speed15 m/min

13

Max. Lifting Speed15 m/min

Boom&Guide

14

Max Swing of Boom

45° left / 45° right

15Max Dump of Boom
 up60 down2016Max Swing of Guide
 30(L) / 91(R) or91(L) / 30(R)

17

Max Dump of Guide

180°

18

Feed Stroke

3 m

Engine19Manufacturer
 YUCHAI20Rated Horse power
 63 KW21Electrical System
 24 V22
Cylinder4General Specification
 23Max. Travel Speed(Slow/Fast)
 2/3 Km/h24Gradeability
 24°25
Grouser Width324 mm26Net Weight
 5500kgs27Shipping Length
 6000mm28Shipping Width
 2150mm29Shipping Height
 2500mm
30Ground Clearance252mm
31Guide Extension1200mmCooling System

33Volume of Flow200 L/MIN34Rated Pressure
 1.6 Mpa
Dust Collector36
WETOptional

37

DRY

Optional

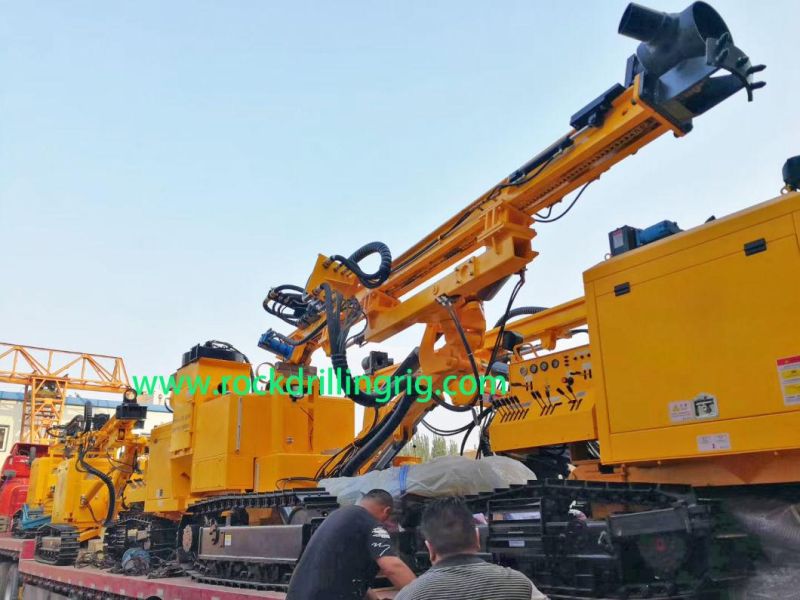

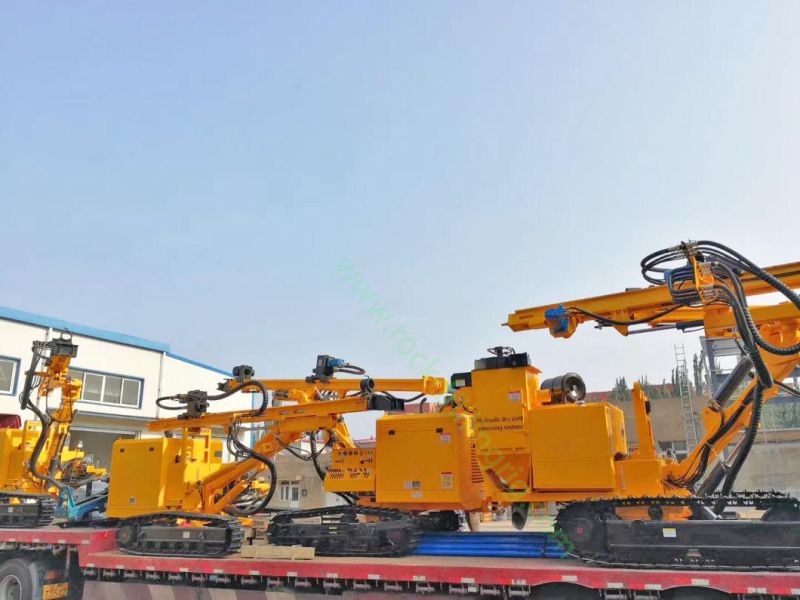

 Packing& Delivery



Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
4. All of machines we sold hold the ISO, QC, TUV certificates and so on

Certificate


FAQ

Q1. Is it a reliable company?
Beijing Jincheng Mining Technology Co.,Ltd  is a professional manufacturer of drilling rig&drilling tools in Beijing,China, and specializes in the R&D, production, process and sale of water well drilling rig,rock blasting drilling rig,anchor drilling rig,RC drilling rig,air compressor and relative drilling tools. We have satisfied a lot of domestic and overseas clients' needs.
Q2: What about the delivery?
The drilling rig,air compressor usually shipment by sea or road,and drilling tools can be delivery by air.
Q3: What's the delivery time?
 7-25 days after received your payment.
Q4: What's the package?
 Strong and beautiful aluminum alloy case/carton case/wooden case.
Q5: Do you have any timely technology supports?Yes. We have a professional technology supporting team and the technical documents for your timely services, also you can contact us by telephone, webcam, online chat (googletalk, MSN, skype, yahoo…). If you have problems, please email us. You will get our solutions in 24 hours.
Q6: What's the payment method?
T/T, WESTERN UNION, MONEYGRAM
Q7: If the machines broken during the shipment, will you support us?Generally our customers will purchase the insurance before shipment to avoid any lost from rough transportation. We will help you to solve the claims with the insurance companies to collect your money back in time.
