• Model NO.：WD50T
• Drill Hole Depth：<100m
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Weight：260kg
• Spindle Speed：70-650rpm
• Reverse Speed：50-130rpm
• Diesel Engine Power：5.7kw
• Winch Lift Force：500kg
• Skid Base Sliding Distance：200mm
• Spindle Feeding Stroke：600mm
• Kelly Bar：Dia.46X51 mm, L=3000mm
• Drill Mast：Optional
• Crawler Chassis：Optional
• Drilling Equipment：Optional
• Transport Package：Wooden Case
• Specification：1400x680x1230mm
• Trademark：BOHWA
• Origin：China
• HS Code：84304900
• Production Capacity：50sets,Month

Basic Info.

Model NO. WD50T Drill Hole Depth <100m Bit Type Diamond Bit Drilling Way Rotary Weight 260kg Spindle Speed 70-650rpm Reverse Speed 50-130rpm Diesel Engine Power 5.7kw Winch Lift Force 500kg Skid Base Sliding Distance 200mm Spindle Feeding Stroke 600mm Kelly Bar Dia.46X51 mm, L=3000mm Drill Mast Optional Crawler Chassis Optional Drilling Equipment Optional Transport Package Wooden Case Specification 1400x680x1230mm Trademark BOHWA Origin China HS Code 84304900 Production Capacity 50sets/Month

Product Description

Moving Skid Base Civil Engineering Borehole Drilling Rig

I. Technical Specification

	WD-50M	WD-50T
Drill Rod Dia.	42mm	42mm
Max. Drill Depth	50m	50m
Hole Dia.	75mm	75mm
Spindle Speed	70-650rpm	70-650rpm
Reverse Speed	50-130rpm	50-130rpm
Diesel Engine Power	5.7kw	5.7kw
Weight (without Crawler&Power)	260kg	260kg
Dimension	1400x680x1230mm	1400x680x1230mm
Winch Lift Force	500kg	500kg
Skid Base Sliding Distance	200mm	200mm
Spindle Feeding Stroke	600mm	600mm
Kelly bar	Dia.46x51 mm, L=3000mm	Dia.46x51 mm, L=3000mm
Drill Mast	Optional	Optional
Moving Skid Base	Yes	Yes
Crawler Base	No	Yes

Note: Drilling Depth Varies as per the different rock formation;

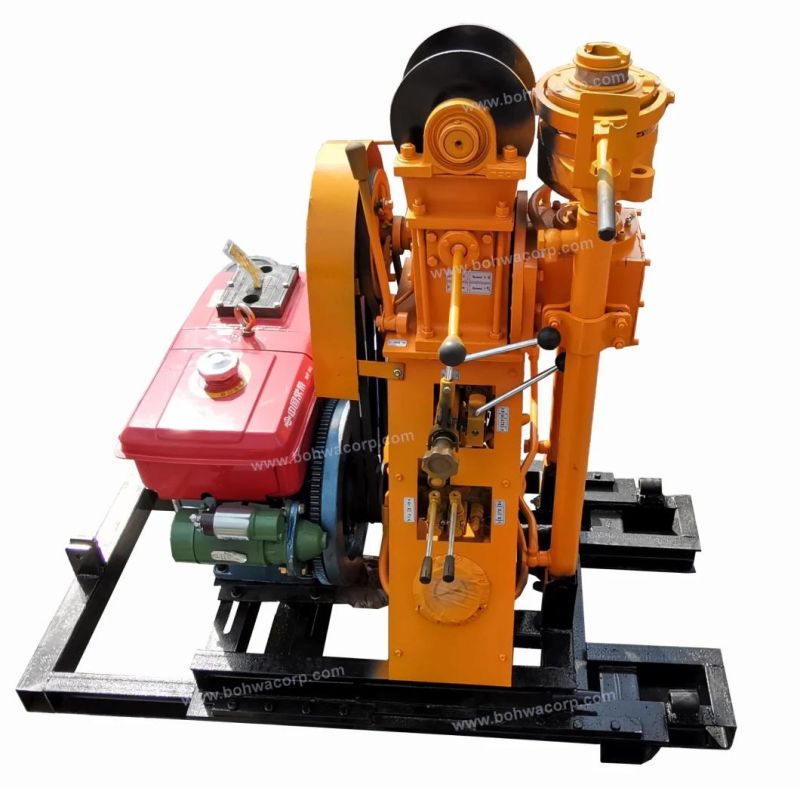

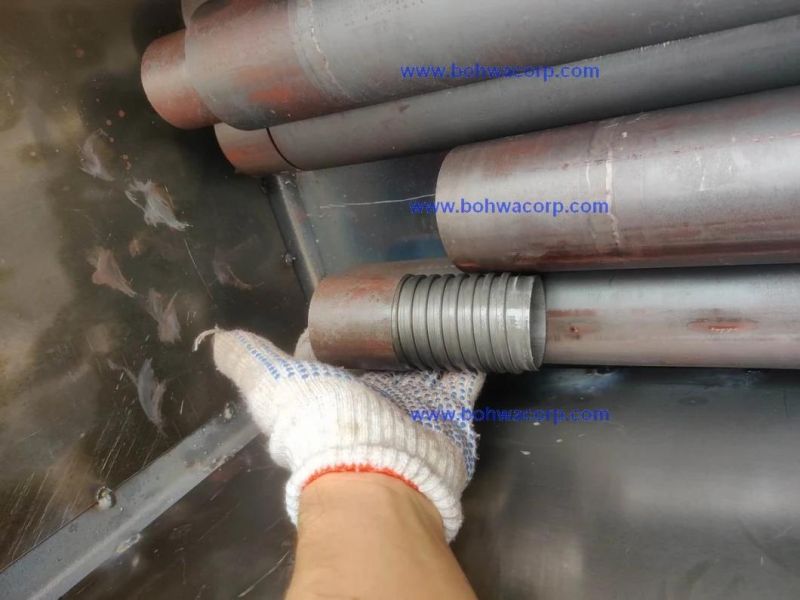

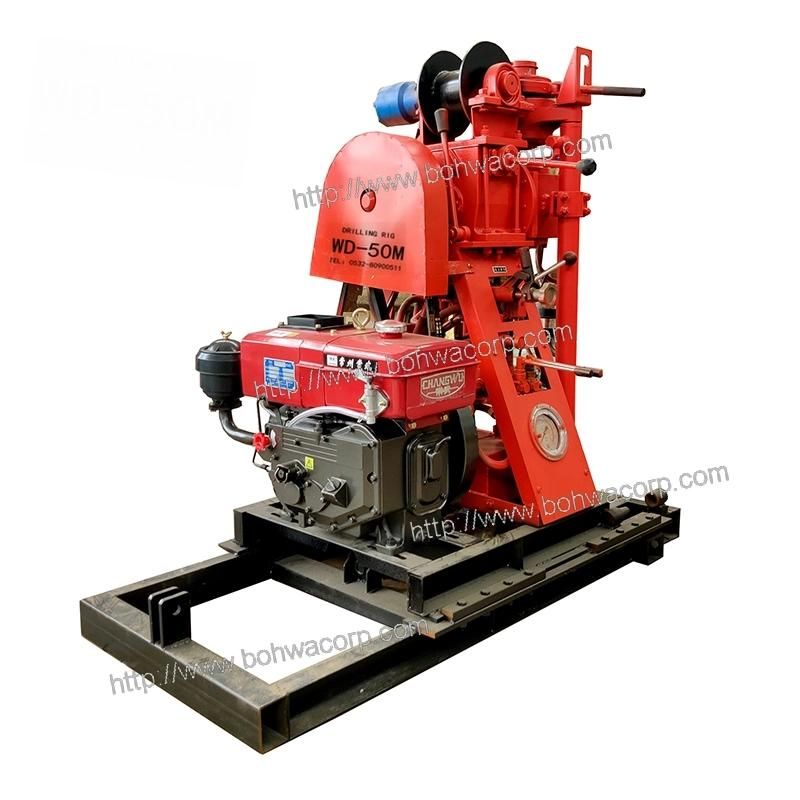

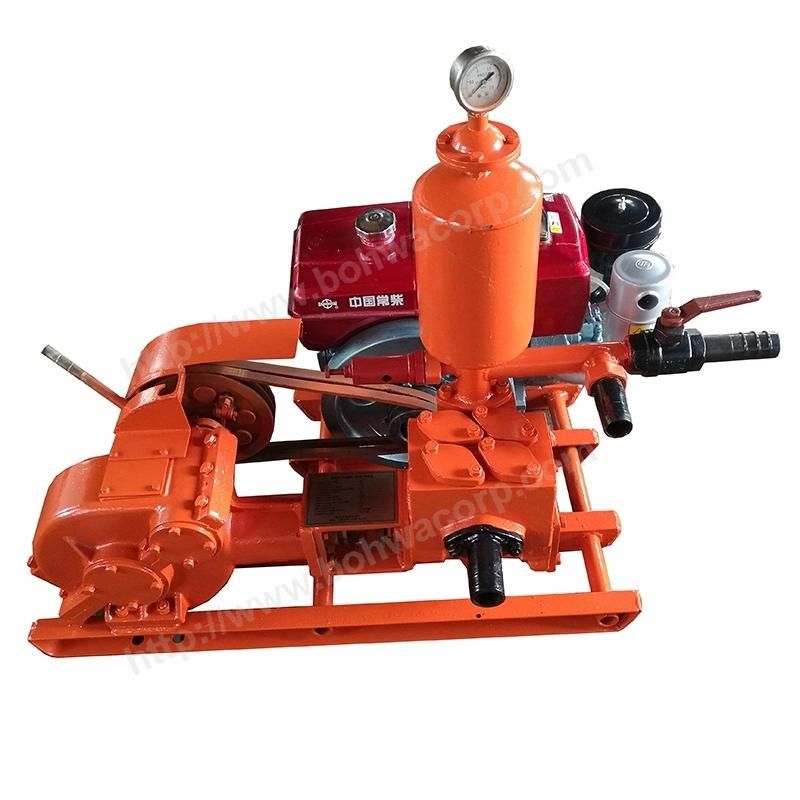

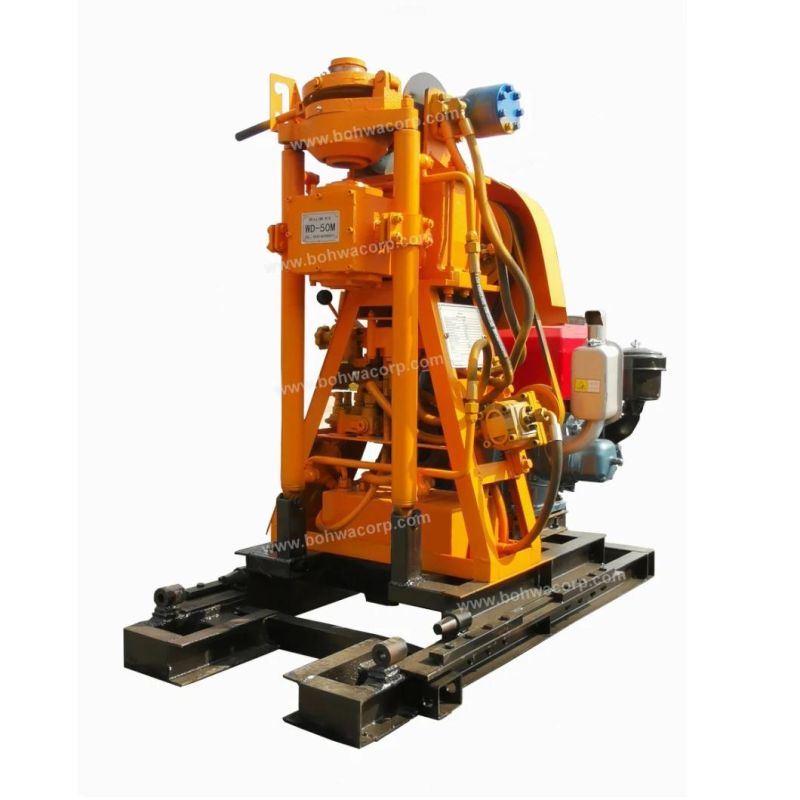

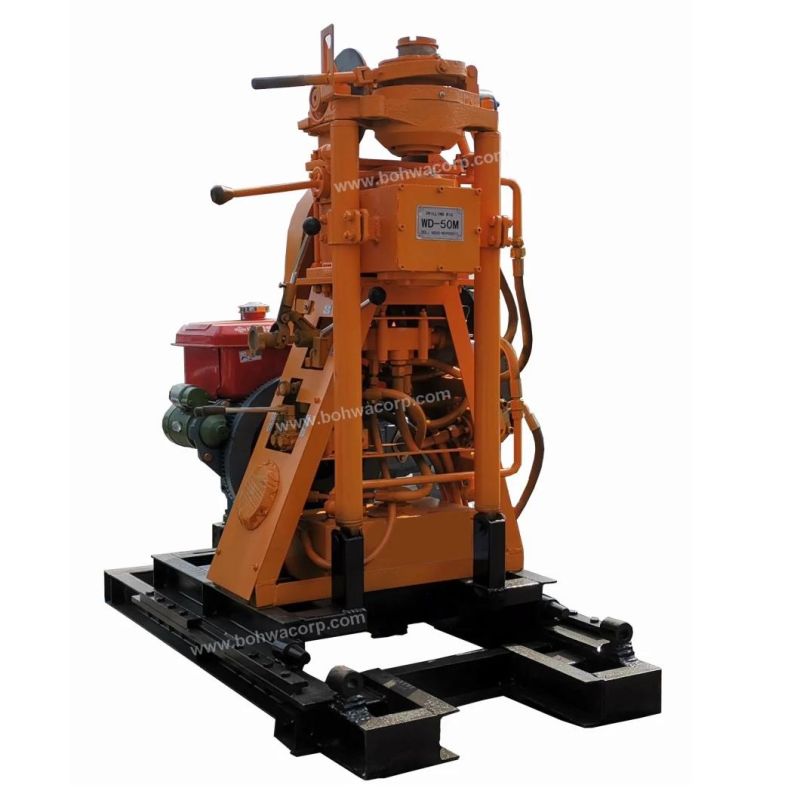

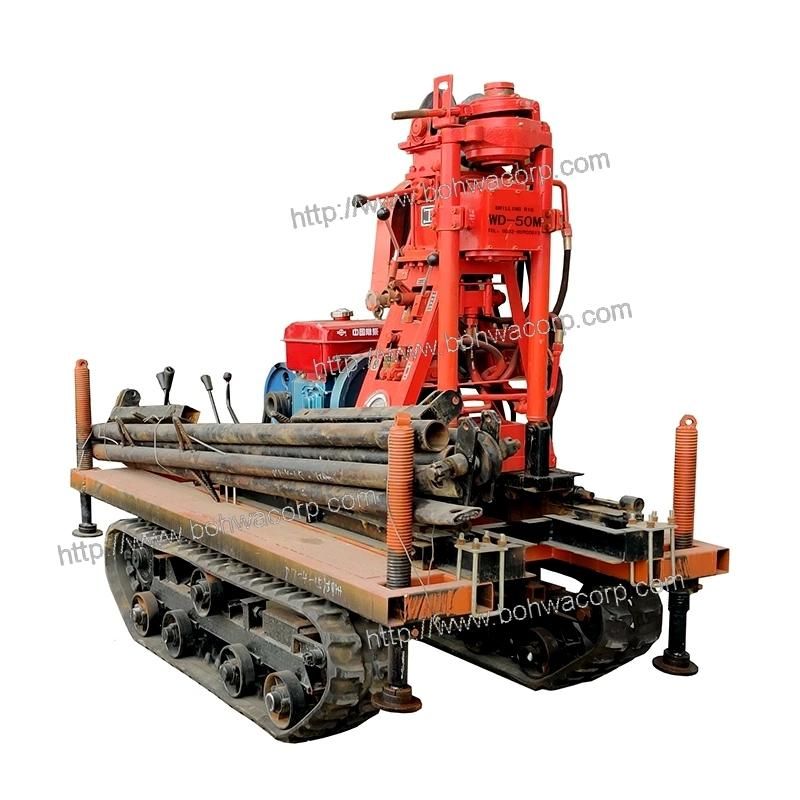

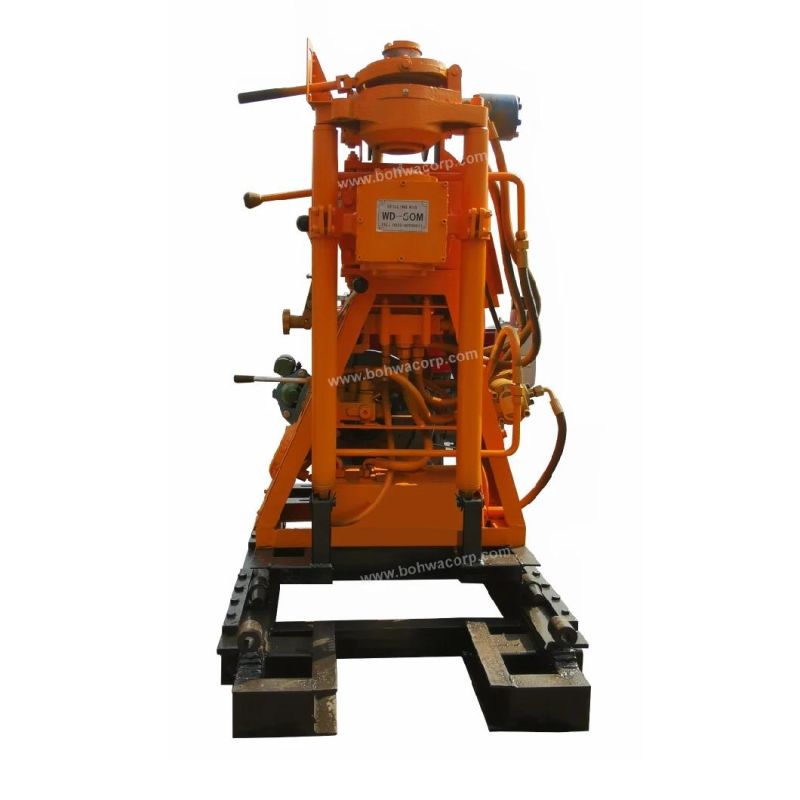

II. Machine Photos
