50m Drill Depth Gold/Copper/Zinc/Coal/Iron Ore/Diamond Mine Drilling Rig
Qingdao Bohwa Machinery Corporation- Certification：ISO 9001:2000
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：<100mm
- Drill Hole Depth：50-100m
- Bit Type：Diamond Bit
Base Info
- Model NO.：WD50M
- Drilling Way：Rotary
- Lifting Force：300kg
- Feeding Force：200kg
- Drilling Angle：90 Degrees
- Drill Pipe Dia.：42mm
- Transport Package：Wooden Case
- Specification：1400mmx600mmx1600mm
- Trademark：Bohwa
- Origin：China
- HS Code：8430490000
- Production Capacity：70 Sets,Month
Description
Basic Info.
Model NO. WD50M Drilling Way Rotary Lifting Force 300kg Feeding Force 200kg Drilling Angle 90 Degrees Drill Pipe Dia. 42mm Transport Package Wooden Case Specification 1400mmx600mmx1600mm Trademark Bohwa Origin China HS Code 8430490000 Production Capacity 70 Sets/MonthProduct Description
50m Drill Depth Gold/Copper/Zinc/Coal/Iron Ore/Diamond Mine Drilling RigI. Technical Specification
| Model No. | WD50M | WD50M (With Crawler Chassis) |
| Drill Pipe Diameter | 42mm | 42mm |
| Drilling Hole Diameter | 75mm | 75mm |
| Drilling Depth | 50 m | 50 m |
| Kelly Bar | Dia.=50mm / L=1m | Dia.=50mm / L=1m |
| Recommend Drill Pipe Length | 0.75m | 2m |
| Drilling Angle | 90° | 90° |
| Diesel Engine Power | 5.7kW/2200rpm | 5.7kW/2200rpm |
| Dimensions of Main Machine (L x W x H) | 1400x600x1600mm (Packaged) | 2000x600x2000mm (Packaged) |
| Total Weight of Main Machine | 300KG | 800KG |
| The Heaviest Part of Machine | 70KG | 350KG |
| Spindle Rotary Speed | 285, 570r/min | 285, 570r/min |
| Spindle Stroke | 1m | 1m |
| Lifting Force | 300KG | >300KG |
| Feeding Force | 200KG | 200KG |

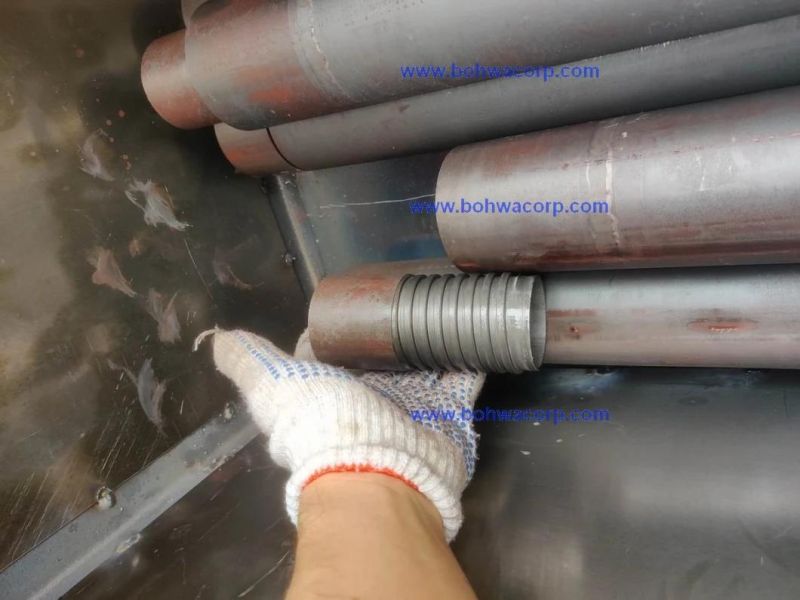

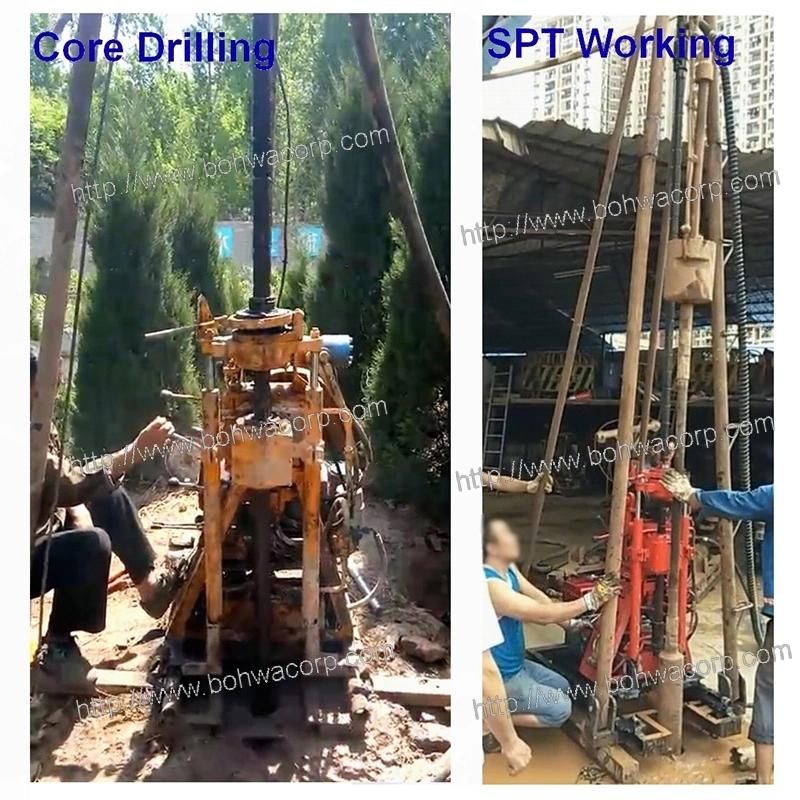

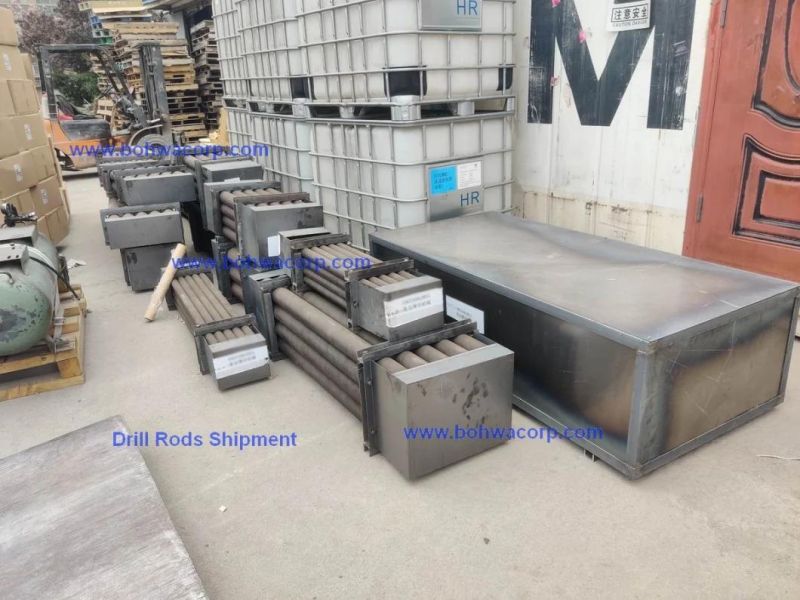

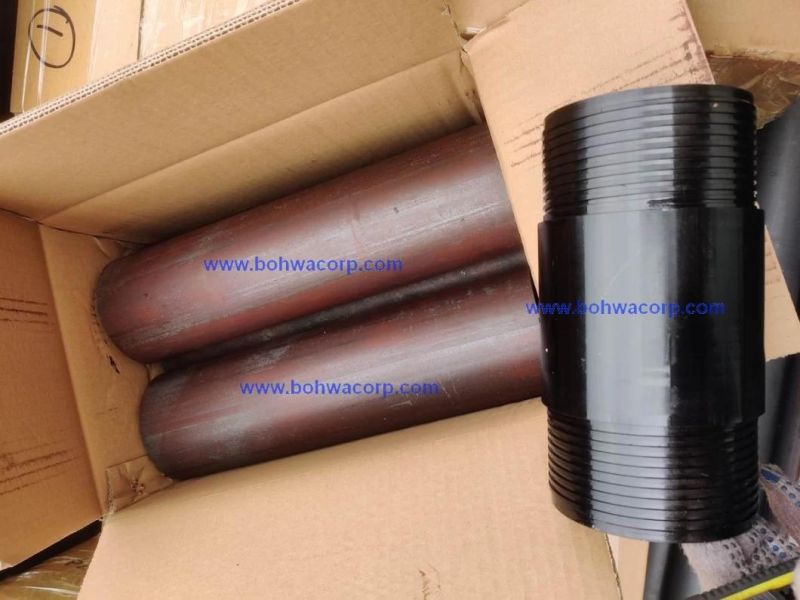

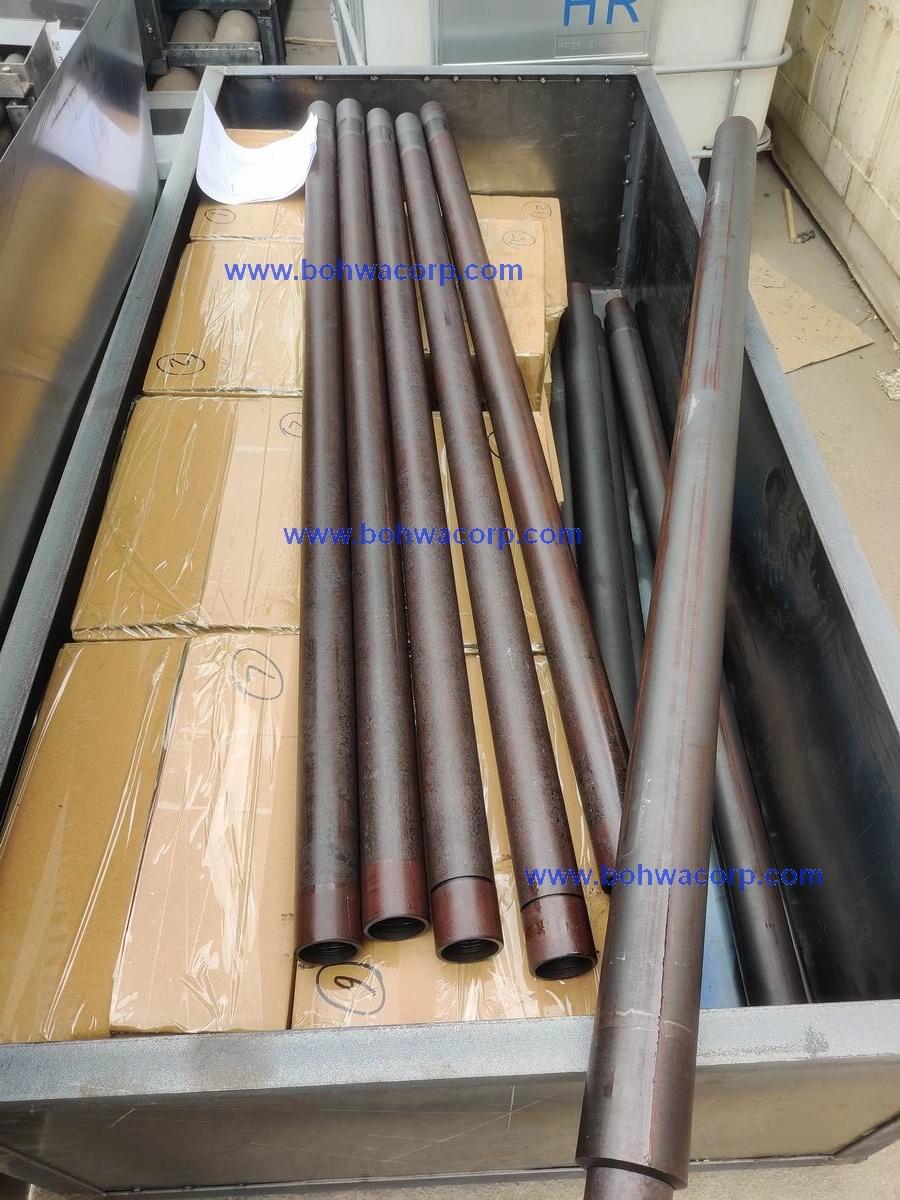

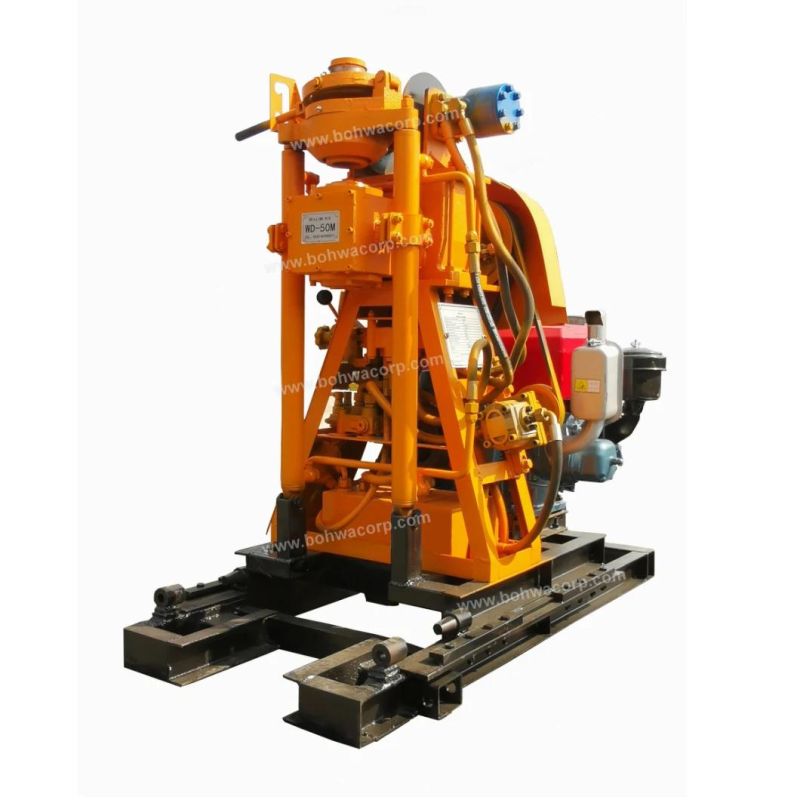

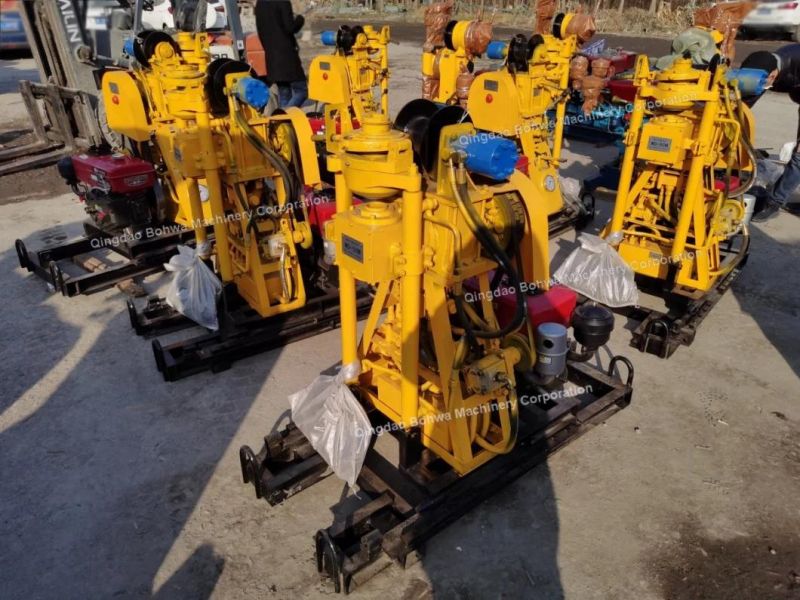

II. Photos
