• Model NO.：HDD-3500G
• Type：Crawler
• Weight：12820,14270 Kg
• Dimensions：7300,8200*2250*2270(mm)
• Max. Push&Pull Force：406,812 Kn
• Max. Torque：17000 N·m
• Max. Push&Pull Speed：45 M,Min
• Max. Rotation Speed：135 R,Min
• Engine Power：179 Kw
• Max. Mud Pump Flow：450 L,Min
• Caterpillar Walking Speed：3-5(Km,H)
• Max. Mud Pump Pressure：8 MPa
• Entry Drill Angle：12°-25°
• Max. Climbing Gradient：18°
• Max. Aperture Diameter：ø1300mm
• Max. Crossing Length：600m
• Transport Package：Nude Packing
• Specification：Max. Torque: 17000 N· m
• Trademark：Bohwa
• Origin：China
• HS Code：84304129
• Production Capacity：30sets,Month

Basic Info.

Model NO. HDD-3500G Type Crawler Weight 12820/14270 Kg Dimensions 7300/8200*2250*2270(mm) Max. Push&Pull Force 406/812 Kn Max. Torque 17000 N·m Max. Push&Pull Speed 45 M/Min Max. Rotation Speed 135 R/Min Engine Power 179 Kw Max. Mud Pump Flow 450 L/Min Caterpillar Walking Speed 3-5(Km/H) Max. Mud Pump Pressure 8 MPa Entry Drill Angle 12°-25° Max. Climbing Gradient 18° Max. Aperture Diameter ø1300mm Max. Crossing Length 600m Transport Package Nude Packing Specification Max. Torque: 17000 N· m Trademark Bohwa Origin China HS Code 84304129 Production Capacity 30sets/Month

Product Description

Application:

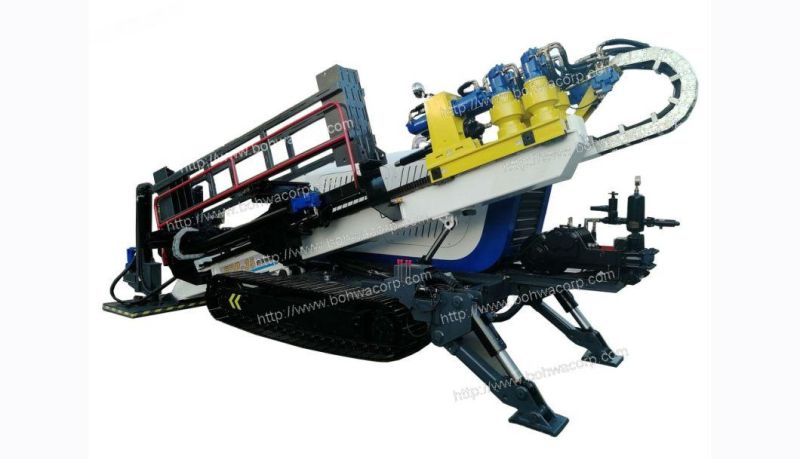

We have a series of small Horizontal Directional Drilling Rig, ranging from 8T to 100T.With Bohwa HDD rigs pipelines can be installed rapidly, economically and with minimized impact on environment and existing infrastructure.

Specifications:



Name	Specification
Model	HDD3500G
Weight	12820/14270 kg
Dimensions	7300/8200*2250*2270(mm)
Max. Push&Pull Force	406/812 kN
Max. Torque	17000 N·m
Max. Push&Pull Speed	45 m/min
Max. Rotation Speed	135 r/min
Engine Power	179 kW
Max. Mud Pump Flow	450 L/min
Caterpillar Walking Speed	3-5(km/h)
Max. Mud Pump Pressure	8 Mpa
Entry Drill Angle	12°-25°
Max. Climbing Gradient	18°
Max. Aperture Diameter	ø1300mm
Max. Crossing length	600m
