Tysim Kr60A, Small Hydraulic Piling Machine with Engineer After-Sales Service

TYSIM Piling Equipment Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：10-30m
  • Drilling Way：Rotary
  • Type：Crawler

Base Info

  • Torque：60 Kn.M
  • Max. Diameter：1200 mm
  • Max. Drilling Depth：20 M
  • Max. Crowd Pressure：60 Kn
  • Max. Crowd Pull：90 Kn
  • Main Winch Line Pull：65 Kn
  • Operating Height：10600 mm
  • Operating Width：2700mm
  • Transport Package：Bulk Pack
  • Specification：20 t
  • Trademark：tysim
  • Origin：Jiangsu, China
  • HS Code：8431499900
  • Production Capacity：30pieces,Month

Description

Basic Info.

Torque 60 Kn.M Max. Diameter 1200 mm Max. Drilling Depth 20 M Max. Crowd Pressure 60 Kn Max. Crowd Pull 90 Kn Main Winch Line Pull 65 Kn Operating Height 10600 mm Operating Width 2700mm Transport Package Bulk Pack Specification 20 t Trademark tysim Origin Jiangsu, China HS Code 8431499900 Production Capacity 30pieces/Month

Product Description

Tysim Kr60A, Small Hydraulic Piling Machine with Engineer After-Sales Service
Technical Specification
TypeKR60A
Torque60 KN.m
Max. diameter1200 mm
Max. drilling depth20 m
Speed of rotation8~30 rpm
Max. crowd pressure60 kN
Max. crowd pull90 kN
Main winch line pull65 kN
Main winch line speed48 m/min
Auxiliary winch line pull20 kN
Auxiliary winch line speed48 m/min
Stroke(crowd system)2000 mm
Mast inclination(lateral)±3°
Mast inclination(forward)4°
Max. operating pressure34.3 MPa
Pilot pressure3.9 MPa
Travel speed3 km/h
Traction force98 kN
Operating height10600 mm
Operating width2700mm
Transport height3250 mm
Transport width2700 mm
Transport length9500mm
Overall weight20 t

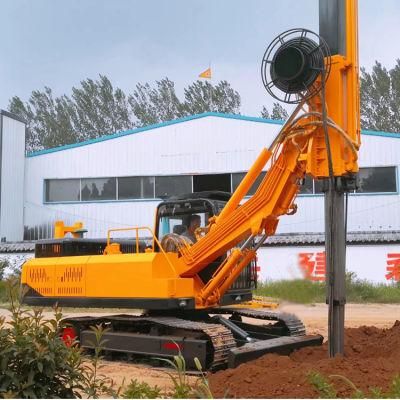

Tysim Kr60A, Small Hydraulic Piling Machine with Engineer After-Sales Service

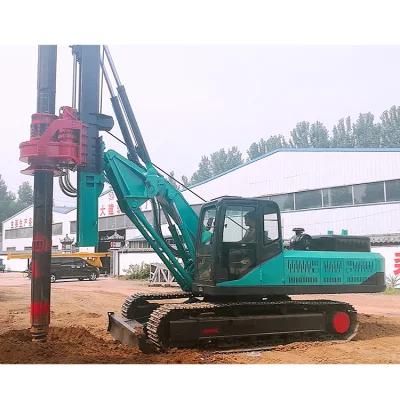

Tysim Kr60A, Small Hydraulic Piling Machine with Engineer After-Sales Service

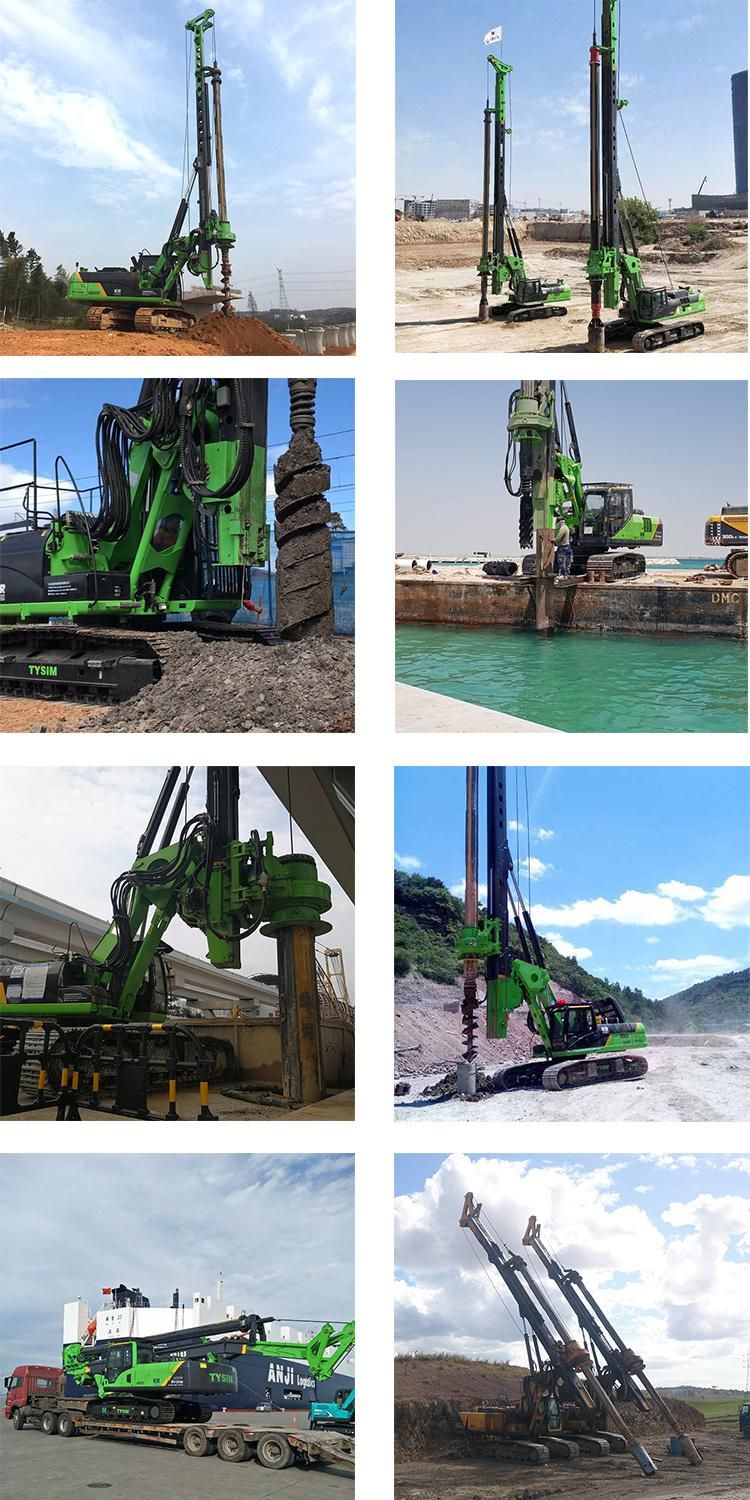

Tysim Kr60A, Small Hydraulic Piling Machine with Engineer After-Sales Service

Tysim Kr60A, Small Hydraulic Piling Machine with Engineer After-Sales ServiceTysim Kr60A, Small Hydraulic Piling Machine with Engineer After-Sales Service
Tysim Kr60A, Small Hydraulic Piling Machine with Engineer After-Sales Service
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is 1 year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
