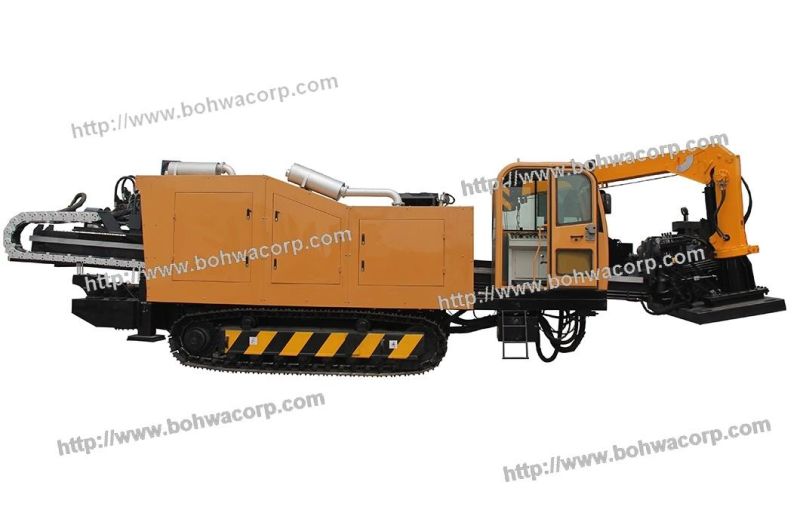

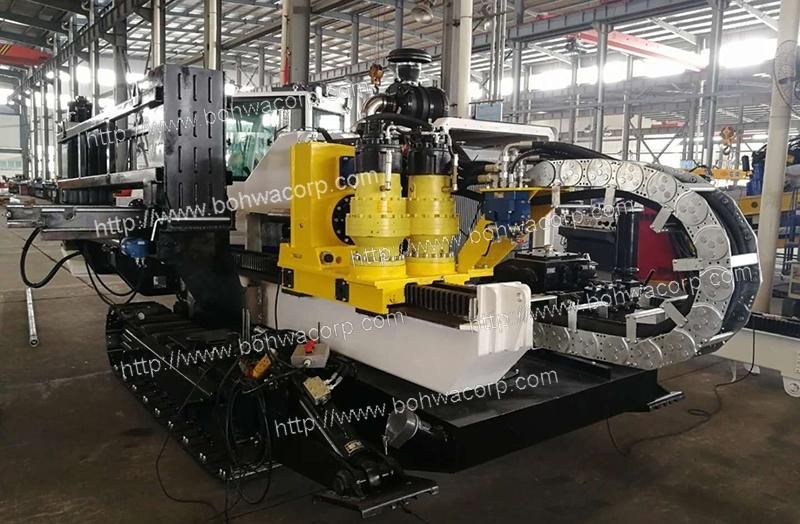

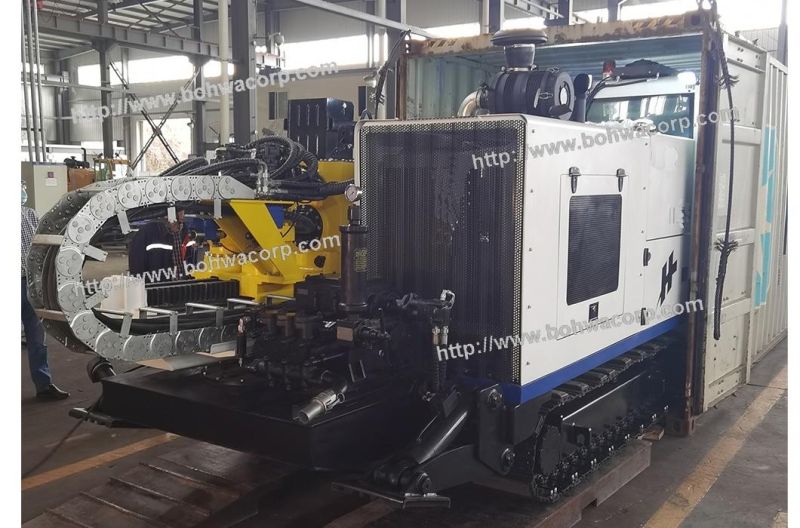

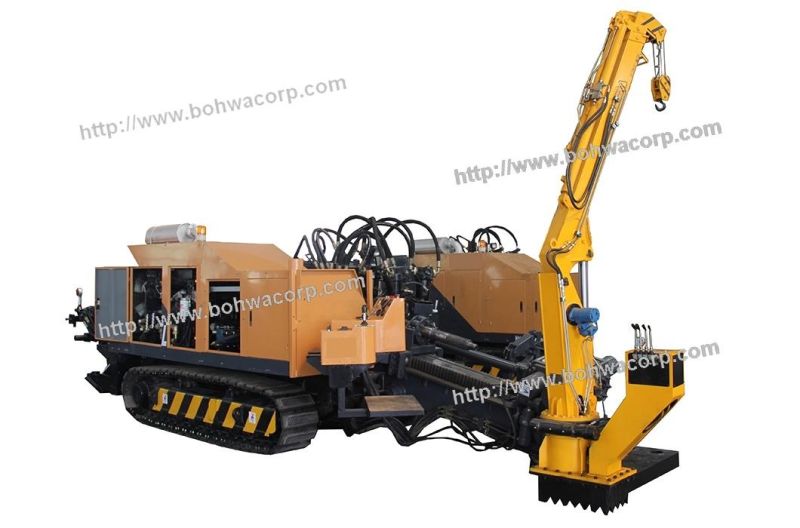

Horizontal Trenchless Underground Pipes Laying Equipment /HDD Drilling Rig
Qingdao Bohwa Machinery Corporation- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：>300mm
- Drill Hole Depth：100-150m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HDD-1500G
- Drilling Way：Impactor
- Engine Power：Cummins 132kw (2200rpm)
- Dimensions：6.0X2.25X2.33m
- Feed / Traction Force：275kn
- Rated Torque：8000 Nm
- Rotational Speed：0-90 , 0-180r , Min
- Feed System：Gear Driven
- Feeding Speed：I Speed: 0-20 M , Min; II Speed: 0-35 M , Min
- Feeding Stroke：3500mm
- Pilot Hole Diameter：φ130 mm

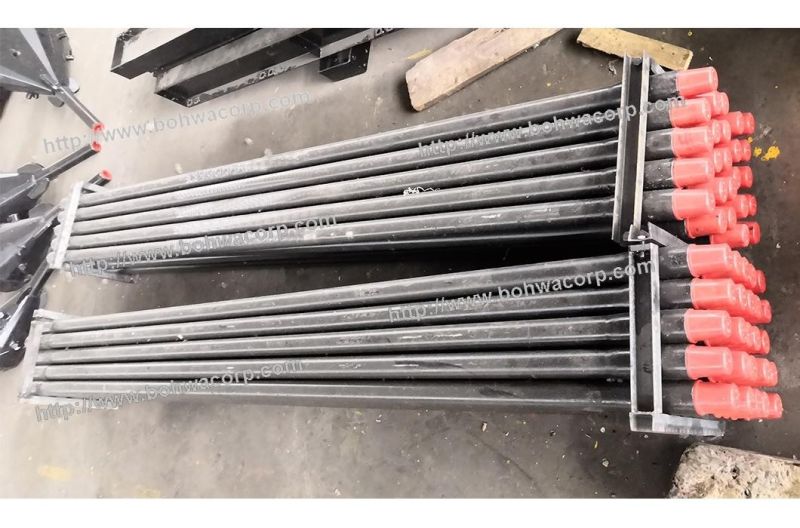

- Recommend Drill Rod：φ73X3000mm
- Drilling Angle：&Nbsp;8,18
- System Pressure：20 MPa
- Travelling Speed：2-2.6 Km , H
- Weight：8,000kg
- Mud Pump：250L,Min
- Transport Package：Nude Packing
- Specification：Max. Torque: 17000 N· m
- Trademark：Bohwa
- Origin：China
- HS Code：84304129
- Production Capacity：30sets,Month
Description
Optional AccessoriesDrill Pipe Auto-loading Container Optional Closed Driving Cabinet with Conditioner Optional Hydraullic Anchor Optional
