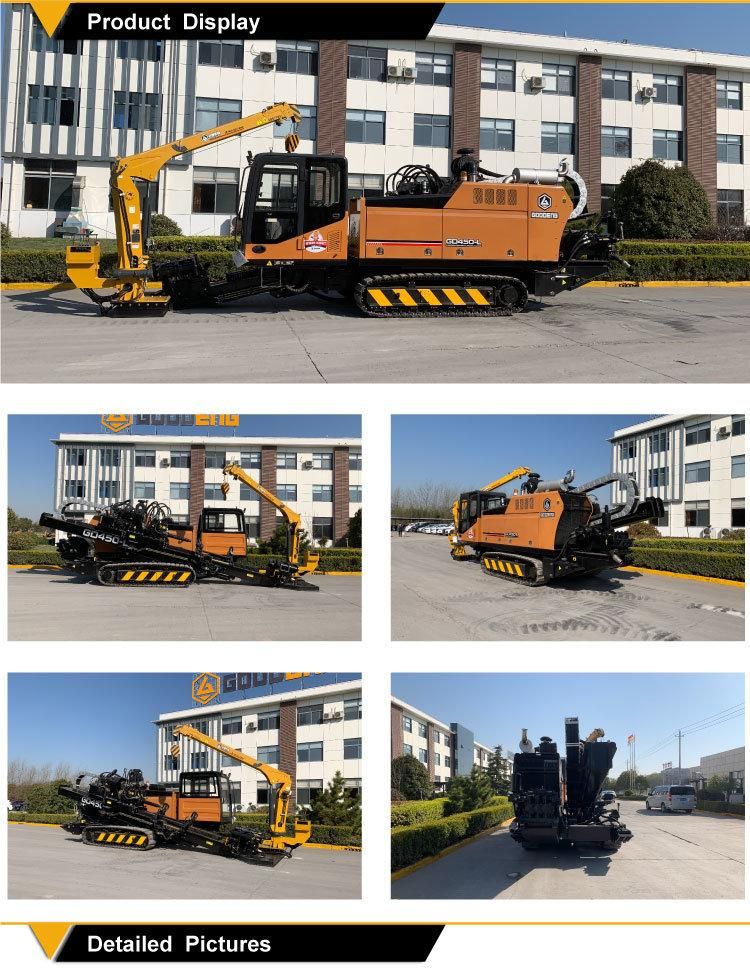

GD450-LS HDD drill machine with high efficiency Cummins engine

Jiangsu Goodeng Heavy Machinery Equipment Technology Co., Ltd.
  • After-sales Service：provided
  • Warranty：provided
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：1500 mm
  • Drill Hole Depth：800 m

Base Info

  • Model NO.：GD450-LS
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Track
  • Engine Power：194 kW
  • Max. Torque：27000 N·m
  • Max. Mud Pump Flow：600 L,min
  • Transport Package：Nude Packing
  • Specification：8450*2320*2650 mm
  • Trademark：Goodeng
  • Origin：China
  • HS Code：843041
  • Production Capacity：2000,Year

Description

Rig Weight14500 kgDimension(L*W*H)

8450*2320*2650(mm)

Max. Push&Pull Force480/960 kNMax. Torque27000 N·mMax. Push&Pull Speed55 m/minMax. Rotation Speed116 r/minEngine Power194 kWMax. Mud Pump Flow600 L/minCaterpillar Walking Speed3-5(km/h)Max. Mud Pump Pressure10 MpaEntry Drill Angle12°-22°Max. Climbing Gradient18°Max. Aperture Diameterø1500mm
(Soil Depended)Max. Crossing length800m
(Soil Depended)GD450-LS HDD drill machine with high efficiency Cummins engine

1. German Rexroth automatic variable system and load sensitivity control.

2. Cummins Engine: high efficiency, large power, low fuel consumption, low noise.

3. Driving head reserves reinforced power (push & pull force).

4. Four bar linkage luffing structure -patented technology.

5. Wire-control walking system ensure safety.

6. Reversible Manipulator reduces the workers' labor intensity.

7. φ89/φ102×4500mm drill rod.

8. Advanced hydraulic system and first-class hydraulic components.

9.  Reasonable electric design with low failure rate.

10. The push & pull with the rack and pinion system.

11. Steel track with rubber plate is adopted for crawler
GD450-LS HDD drill machine with high efficiency Cummins engineGD450-LS HDD drill machine with high efficiency Cummins engineGD450-LS HDD drill machine with high efficiency Cummins engine
GD450-LS HDD drill machine with high efficiency Cummins engine



1. What about the warranty time?

    A:12 months after shipment or 2000 working hours, whichever occurs first.

2. What about the delivery time?

    A:20 days after receiving the deposit.

3.What kind terms of payment can be accepted?

    A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.

         On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.

4.What logistics ways we can work for shipment?

    A: We can ship machine by sea and road.

 5. What about the after-sales service?

   A: We have office and professional after-sales service team in many countries. After you receiving the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service team will arrive the project site in shortest time.
