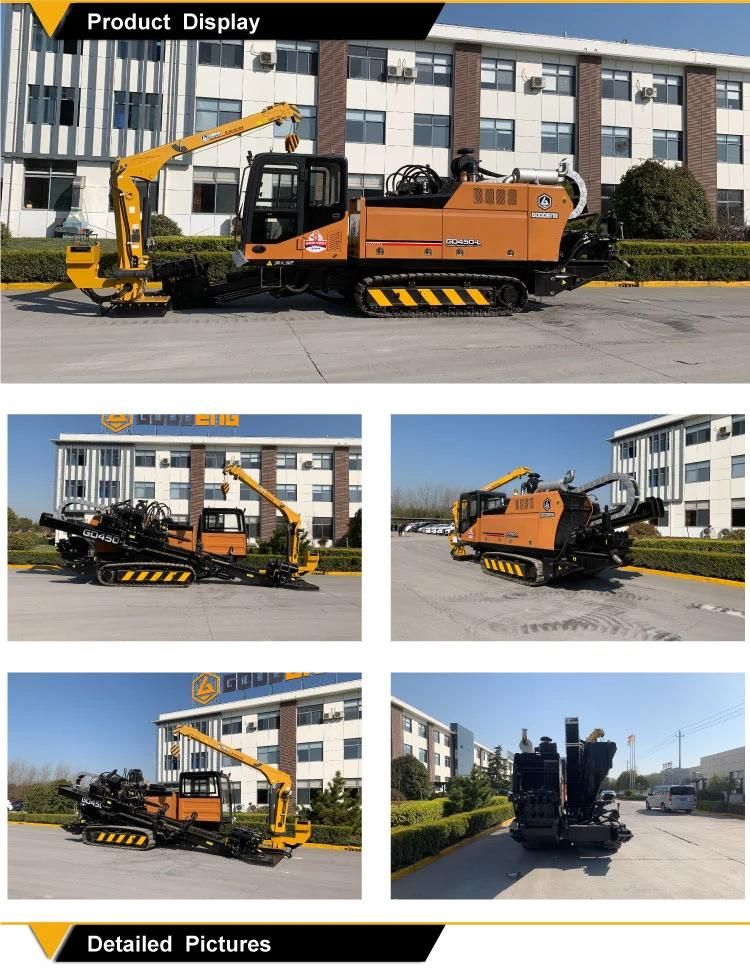

Goodeng 45T trenchless equipment with factory price

Jiangsu Goodeng Heavy Machinery Equipment Technology Co., Ltd.
  • After-sales Service：provided
  • Warranty：provided
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：1500 mm
  • Drill Hole Depth：800 m

Base Info

  • Model NO.：GD450-L,LS
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Track
  • Engine Power：194 kW
  • Max. Torque：27000 N·m
  • Max. Mud Pump Flow：600 L,min
  • Transport Package：Nude Packing
  • Specification：8450*2320*2650 mm
  • Trademark：Goodeng
  • Origin：China
  • HS Code：843041
  • Production Capacity：2000,Year

Description

Rig Weight14500 kgDimension(L*W*H)

8450*2320*2650(mm)

Max. Push&Pull Force480/960 kNMax. Torque27000 N·mMax. Push&Pull Speed55 m/minMax. Rotation Speed116 r/minEngine Power194 kWMax. Mud Pump Flow600 L/minCaterpillar Walking Speed3-5(km/h)Max. Mud Pump Pressure10 MpaEntry Drill Angle12°-22°Max. Climbing Gradient18°Max. Aperture Diameterø1500mm
(Soil Depended)Max. Crossing length800m
(Soil Depended)Goodeng 45T trenchless equipment with factory price

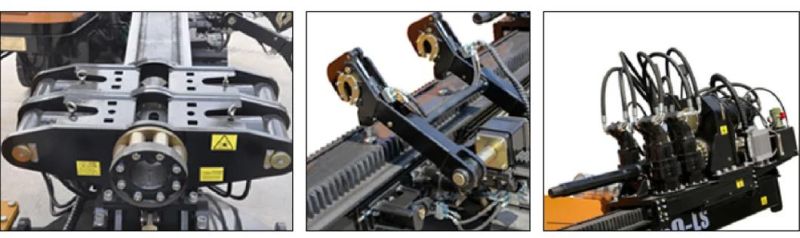

1. German Rexroth automatic variable system and load sensitivity control.

2. Cummins Engine: high efficiency, large power, low fuel consumption, low noise.

3. Driving head reserves reinforced power (push & pull force).

4. Four bar linkage luffing structure -patented technology.

5. Wire-control walking system ensure safety.

6. Reversible Manipulator reduces the workers' labor intensity.

7. φ89/φ102×4500mm drill rod.

8. Advanced hydraulic system and first-class hydraulic components.

9.  Reasonable electric design with low failure rate.

10. The push & pull with the rack and pinion system.

11. Steel track with rubber plate is adopted for crawler
Goodeng 45T trenchless equipment with factory priceGoodeng 45T trenchless equipment with factory priceGoodeng 45T trenchless equipment with factory price
Goodeng 45T trenchless equipment with factory price



1. What about the warranty time?

    A:12 months after shipment or 2000 working hours, whichever occurs first.

2. What about the delivery time?

    A:20 days after receiving the deposit.

3.What kind terms of payment can be accepted?

    A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.

         On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.

4.What logistics ways we can work for shipment?

    A: We can ship machine by sea and road.

 5. What about the after-sales service?

   A: We have office and professional after-sales service team in many countries. After you receiving the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service team will arrive the project site in shortest time.
