• Model NO.：XJ750
• Drill Hole Depth：>300m
• Bit Type：Cone Bit
• Drilling Way：Rotary
• Workover Depth：8,000m (26,200FT, 2-7,8′′ Dp)
• Drilling Depth：3,000m (9,840FT, 4-1,2′′ Dp)
• Rated Hook Load：1,575kn (354,000lbf)
• Max. Hook Load：1,700kn(382,000lbf )
• Rated Power：373kw(500HP) X 2
• Transport Package：Export Packing
• Trademark：BEYOND
• Origin：China
• HS Code：8431431000
• Production Capacity：1000sets,Year

Derric-kWorkover Depth8,000m (26,200ft, 2-7/8'' DP)Net. Height38m (125ft) 6,500m (21,330ft, 3-1/2''DP)Max. Hook Load1,700kN (382,000 lbf) 5,000m(16,400ft, 4-1/2''DP )Effective Lines10Max. Hook Load1,700kN(382,000lbf )Racking Board Capacity3,000m (9,840ft, 4-1/2'' DP)Wireline Dia.Φ29mm (1-1/8'' )Racking Board Height24m (79ft)Traveling System6×5Max. Wind Velocity30m/s (98ft/s)Overall Dimensions(L×W×H)22.2×3.1×4.45m72.8×10.2×14.6ftDrawworkWeight76,000kg (1676,000 lbs)Rated Power373kW(500hp) × 2Max. Travel Speed45km/h (28mph)Main DrumΦ528mm×1041mm(Φ20.8''×41'')CarrierSelf-propeller 14×8Max. Faster Line Pull280kN (62300lbf)EngineCat C15 ACERT AIII × 2Sanding DrumΦ315 ×1,005mm(Φ12.4'' ×39.6'')Power of Engine325kW(440hp)/2,100r/minAir Assist Brake SystemKOBELT Disc4-10.5-48.5''
Packing & Delivery

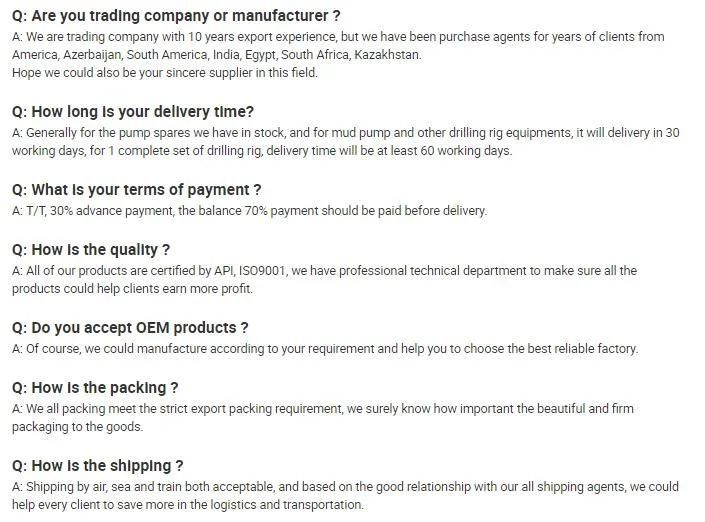

FAQ
