GD450G-L High digging power no-dig rig

Jiangsu Goodeng Heavy Machinery Equipment Technology Co., Ltd.
  • After-sales Service：provided
  • Warranty：provided
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：1300 mm
  • Drill Hole Depth：700 m

Base Info

  • Model NO.：GD450G-L
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Track
  • Engine Power：194 kw
  • Max Torque：27000 Nm
  • Max. Mud Pump Flow：600 L,min
  • Transport Package：Nude Packing
  • Specification：7600*2320*2650 mm
  • Trademark：Goodeng
  • Origin：China
  • HS Code：843041
  • Production Capacity：1000,Year

Description

Rig Weight15600 kgDimension(L*W*H)

7600*2320*2650(mm)

Max. Push&Pull Force480/960 kNMax. Torque27000 N·mMax. Push&Pull Speed55 m/minMax. Rotation Speed116 r/minEngine Power194 kWMax. Mud Pump Flow600 L/minCaterpillar Walking Speed3-5(km/h)Max. Mud Pump Pressure10 MpaEntry Drill Angle10°-20°Max. Climbing Gradient18°Max. Aperture Diameterø1300mm
(Soil Depended)Max. Crossing length700m
(Soil Depended)GD450G-L High digging power no-dig rig1. The rotation adopts German Linde hydraulic control closed system, which is simple, stable and reliable. The trust & pullback adopts Germany Linde / sunny automatic variable system

2. The thrust and pullback and rotary handle adopts hydraulic control mode, which reduces the failure caused by the aging of electrical components, and makes the system more stable and faster response.
 3. Equipped with Dongfeng Cummins engine, with strong power.
 4. The power head reserves reinforce power, and the maximum thrust and pullback force can reach 960kN, which can also ensure the reliability of construction in large diameter construction.
 5. The rotation adopts German Linde hydraulic control closed system, which is simple, stable and reliable. The trust & pullback adopts Germany Linde / sunny automatic variable system, ensuring that the track of the drilling rig does not leave off the ground under the condition of the larger angle, and improving the safety performance.
 6.Wire control walking system ensures the safety of walking process.

7. It is suitable for drill pipe 89 × 3000mm, compact design and convenient transfer.

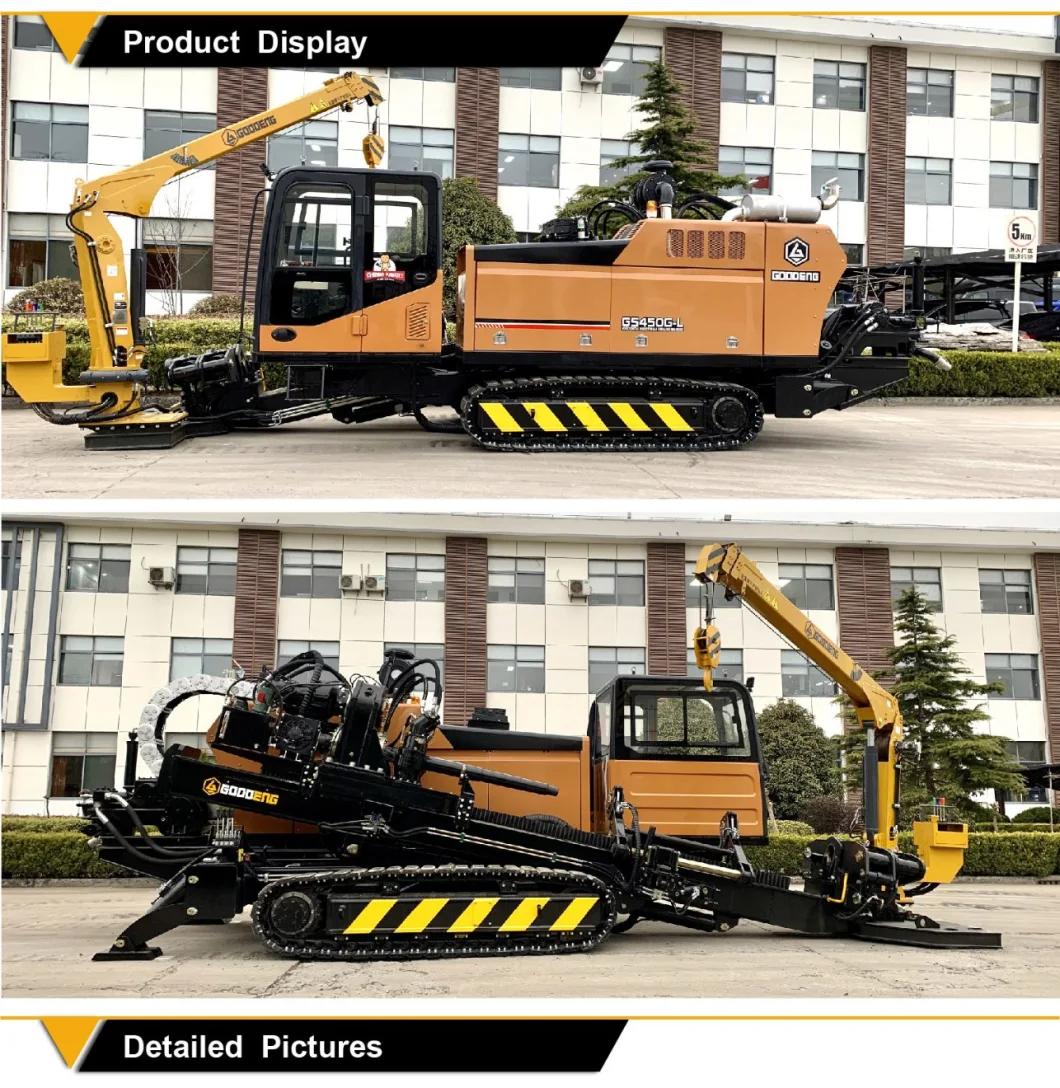

GD450G-L High digging power no-dig rigGD450G-L High digging power no-dig rigGD450G-L High digging power no-dig rigGD450G-L High digging power no-dig rig

1. What about the warranty time?

    A:12 months after shipment or 2000 working hours,whichever occurs first.

2. What about the delivery time?

    A:20 days after receiving the deposit.

3.What kind terms of payment can be accepted?

    A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.

       On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.

4.What logistics ways we can work for shipment?

    A: We can ship machine by sea and road.

 5. What about the after-sales service?

    A: We have office and professional after-sales service team in many countries. After you receiving the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service team will arrive the project site in shortest time.
