Diesel Power Hydraulic Jumbo Tunneling Drilling Rig for Mining
Shenyang ABT Drilling Equipment Co., Ltd.- Certification：ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：100-150mm
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
Base Info
- Model NO.：L- Mine jumbo
- Drilling Way：Mobile Gyrator
- Transport Package：Normal Packing
- Trademark：ABT
- Origin：China
Description
Mine jumbo technical parametersHardness of rock f=6-20 Car-riage pitch Angle 114° Diameter of hole(mm) 80-105 Car-riage angular Right 36° left 35° Depth of the hole (m) 25 Car-riage lateral level swinging Angle Right 12°~93° speed(Km/h) 2.2 Re-entry arm angular Right 45° left35° Grade ability 22° The leveling Angle frame Up 54° down 26° Road clearance(mm) 430 Apush length(mm) 3000 Grade ability 239 Compensation length(mm) 1200 Diesel motor YC6A180Z-T21 Hammer KQG35A Displacement (m³/min) 10 drill pipe φ64×3000mm Exhaust pressure(bar) 10.5-15 Connect stem implement ability 5+1 Dimension (mm) 6500×2400×2600 Catching dust way Dry type (hydraulic drive whirlwind layer streaming) Weight (Kg) 8000 Connect stem way Automatic picking discharge stem Turning speed (r/min) 0-63 Since artery card way Electro-hydraulic vacancy prevent card Rotary torque (N·m) 1400 Pipe lubrication method Automatic spray oil lubrication Biggest push pull(N) 25000 Drill pipe thread protection Equipped with floating street protection pipe threads

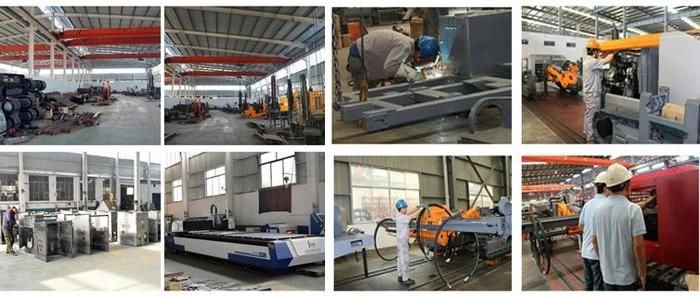

Company Profile
Shenyang ABT Drilling Equipment Co., Ltd. mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, hammer, drill bit, crushers, underground water detector.We are your trustworthy partner.
FAQ
1.Is it difficult to operate and make the graph?
The instrument is easy to operate and we will send you the detailed operation manual via email.
The detector directly mapping with one button, no need computer drawing mapping.
2.What is the accuracy?
Our natural electric field instruments have been made for more than ten years, with advanced technology and market test. We have obtained many invention patents. Our customer feedback rate reaches 100%. Accuracy over 95%.
3.How about after-sales service?
2 year warranty.Free data service for life.The professional geologist give the suggestions and 24hours online.
