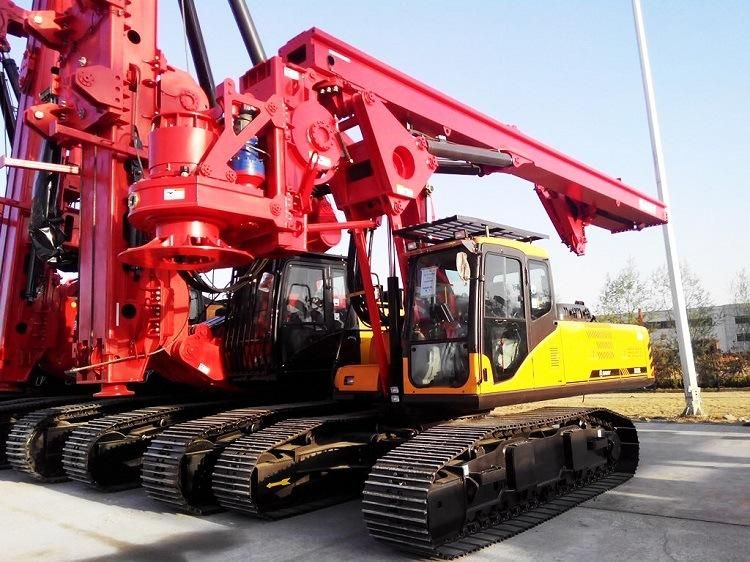

Sr150c Piling Machine Price Hydraulic Rotary Drilling Rig Sr 155
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Warranty：1 Year
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：1500 mm
- Drill Hole Depth：56 M
- Bit Type：Drag Bit
Base Info
- Model NO.：SR155-C10
- Drilling Way：Rotary
- Type：Crawler
- Total Working Weight：50 Ton
- Transport Package：Nude Packaged
- Specification：13500*3500*3600 mm
- Trademark：San-y
- Origin：Hunan, China
- HS Code：8430509000
- Production Capacity：5000PCS,Year
Description
ParameterRemark Pile Max. pile diameter mm 1,500 Max. pile depth m 56/44 friction kelly/inter- locking kelly Rotary Drive Max. output torque kN·m 155 Speed of rotation rpm 5~35 Crowd system Crowd force kN 155 Line pull kN 160 Stroke mm 4,200 Main winch Line pull kN 160 Rope diameter mm 26 Max. line speed m/min 80 Auxiliary winch Line pull kN 60 Rope diameter mm 14 Max. line speed m/min 75 Mast inclination Forward/backward ° 5/90 Lateral ° ±3 Main Chassis Base engine Mitsubishi Engine power kW/rpm 147/2,050 Emission regulation COM/R96 Engine displacement L 6.373 Chassis length mm 5,972 Extended width mm 4,100 Track shoe width mm 700 Swing radius mm 3,717 backside Overall machine Overall height mm 18,592 Operating weight t 48 Transport width mm 3,140 Transport height mm 3,262
