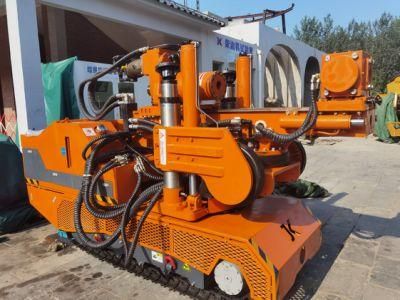

• Model NO.：CMS1-2000,45YL
• Drill Hole Depth：>300m
• Bit Type：Cone Bit
• Drilling Way：Rotary
• Total Power：45 Kw
• Max. Torque：2200 N.M
• Reverse Rotation：Yes
• Climbing Ability：16 Degree
• Drill Rod Box：36 Roots
• Size：5000*1300*2200
• Drill Diameter：150 mm
• Drill Direction：0~360 Degree
• Rotary Speed：76~260 R,Min
• Propulsion Force：65 Kn
• Adaptable Drilling：89 Spiral Drill Rod , mm
• Transport Package：Both Parties Negotiate
• Specification：3.4*1.3*2.1
• Trademark：JIKAI
• Origin：China
• HS Code：8430412200
• Production Capacity：20

DetailCMS1-1200/37CMS1-2000/45CMS1-3300/55
CMS1-4000/55CMS1-6500/75Jumbo Boom Number1111Working Outside Size:(L*W*H)(mm)3200*1000*18003553*1300*18003350*1300*19503400*1300*2100Total Power37455575Ground Clearance200200200200Drill Depth(m)200300600650Boring Angle(°)360360360360Horizontal Drilling Height1.2-2.51.4-2.71.5-2.71.6-2.8Jumbo Weight3800600063007000Rated Working Pressre(Mpa)27212526Rated Torque(N.m)120020002000/40006500Rated Speed(r/min)1207673/6050Working Pressure(Mpa)21212121Driving Stroke(mm)1300600800800Driving Force/Pulling Out Force(kN)60120/80140/140180/180Pushing Speed(mm/min)300-150-150-14No-load Back Speed(mm/min)300-22.50.150.14Working Pressure(Mpa)16212121Walk Speed(m/min)30303030Climbing Angle(°)±16±20±20±20Ground Pressure(Mpa)0.050.050.050.05

Applicable condition

Frist

1. Tunnel with gas and ground pressure.
2. Release the pressure along the coal seam on the working face.
3. Equipped with high efficiency spiral drill rod and anti-collapse drill bit,automatic drilling.
4. Tunnel width≥4.2m,height≥2.5m,slope±16°,hardness f1-f8.

Second

1. Reduce the concentrated pressure of the coal seam;Fire protection,gas protection on the working face.
2. Equipped with groove drill rod,geological drill rod,anti-collapse drill bit,PDC drill bit.
3. Tunnel width≥4.2m,height≥3.2m,slope±16°,hardness f1-f8.

Technical feature

Remote control
People can visual remote control the machine or remote control the machine.The two operation mode are interlock,control distance is 300m.The remote control can display the machine status and diagnose the condition.

Powder discharge technology
Equipped with spiral drill rod without water,powder discharge,improve the drill efficiency.

One-click automatic drilling technology
Press the button to drill,the machine can load and unload the drill rods automatically.

Intelligent anti-stucking technology
Collect the data such as the pressure,speed,depth and so on.Load and unload automatically,intelligent anti-stucking technology.

Intelligent diameter changing technology,powder recycle.
Diameter changing,powder discharge volume increase 35%~50%;Flexible powder recycle device,convenient and efficient.


Detecting and drilling jumbo-Intelligent remote monitoring system

Product introduction
People can control the machine at the chamber underground and observe the operation status at any time.Signal is more stable with wired transmission mode.The wireless communication interface is connected with the underground ring network and transfer the data to the ground control center.
AC220V Electric control box power supply
Mine explosion-proof camera
Stabilized power supply
Gateway
Wired transmission
Loudspeaker
Wireless receiver
Remote control transmitter

Technical feature
Change from local operation and remote control system,interlock.
Audio and video signal transmission,HD camera 360 degree monitoring.
300m data transmission by wire.
Display and store the data,diagnose the fault.
Wireless communication interface is connected with the underground ring network.
Detecting and drilling jumbo-Intelligent-Powder collection system.

At present, our company has built an advanced R&D system:Since 2007, the company has realized the network and digitization of R&D and design work;3D solid design and finite element analysis;Implemented product data lifecycle management (PLM);project workflow management; the integration of PLM system and ERP system;the paperless application of drawings and all technical data.
For example: 3D integral casting scraper conveyor not only greatly improves the service life of the scraper, but also promotes the intelligent construction of fully mechanized mining;Anti-gas and anti-groundpressure automatic drilling rig, equipped with remote control and video monitoring system, with real-time data collection functions, with one-key drilling function and anti-stucking functions, suitable for groundpressure prevention;The national III standard explosion-proof diesel engine monorail crane locomotive realizes multi-point direct transportation of hydraulic supports (48T); the drilling and bolting jumbo can drill with one key, and realize the automatic construction of anchor rods and anchor cable holes.

With firm determination and strong investment, our company has always improved the quality management system, and effectively implemented the quality management system of full participation, full responsibility, whole process control and continuous improvement.We vigorously improve the quality management level to ensure product quality,meet user requirements and be responsible for users.At present, our company has established an advanced quality assurance system.According to the continuously improving quality management requirements, the company has successively developed quality management software that meets the standard requirements, realizing automatic detection and controlling the whole process.

All products have corresponding quality control standards, which are completed simultaneously with design drawings and processes, and are recorded in the information management system.

Each product is marked with a unique permanent laser identification code when it is submitted for inspection. The inspection items and records correspond to each identification code, which realizes:1. Unique product quality identification; 2. Traceability of product quality problems; 3. Lifelong responsibility for product quality; 4. The basis for improvement is accurate and sufficient, and the improvement effect is tracked in place.
In recent years, we have been rated as Hebei Provincial Enterprise Technology Center, Shijiazhuang Coal Mining Machinery Engineering Technology Research Center, Hebei Coal Mine Safety Equipment Engineering Technology Research Center (in preparation), Hebei Coal Mine Safety Equipment Inspection and Testing Platform (in preparation), The public technology research and development platform for coal mining machinery and equipment of the Ministry of Commerce has been fully affirmed by relevant departments in terms of product research and development, quality inspection, engineering technology transformation, and public services.

In the future, the engineering laboratory will obtain income through technical patents and paid use of new products, undertaking technical engineering research and development tasks for coal mine safety equipment industry, government scientific research funding, technical training and technical services, etc. "The virtuous cycle operation mode, and strive to achieve the sustainable development of the laboratory.


Related product recommendation

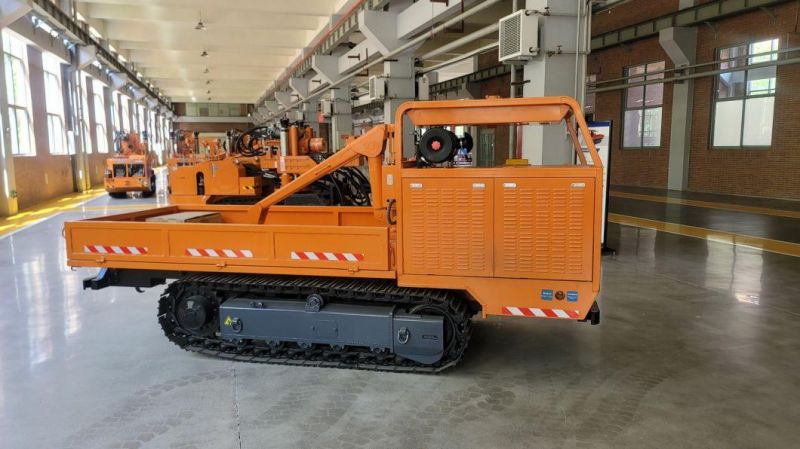

 Main Features:

1..Full hydraulic driving, reliable performance, monolever bidirectional driving, simple and accurate.

2..Crawler-mounted, ground pressure less than 0.06MPa, adapted to soft ground transportation.

3..Compact design, passing space 1200mm (optional 1100mm), good for narrow tunnel.

4..Bi-directional driving could solve the turning problems effectively.

5..The crane jib installed in the transporter could lift up material which weight is 1000kg. Technical Features

1. Multifunctional combination

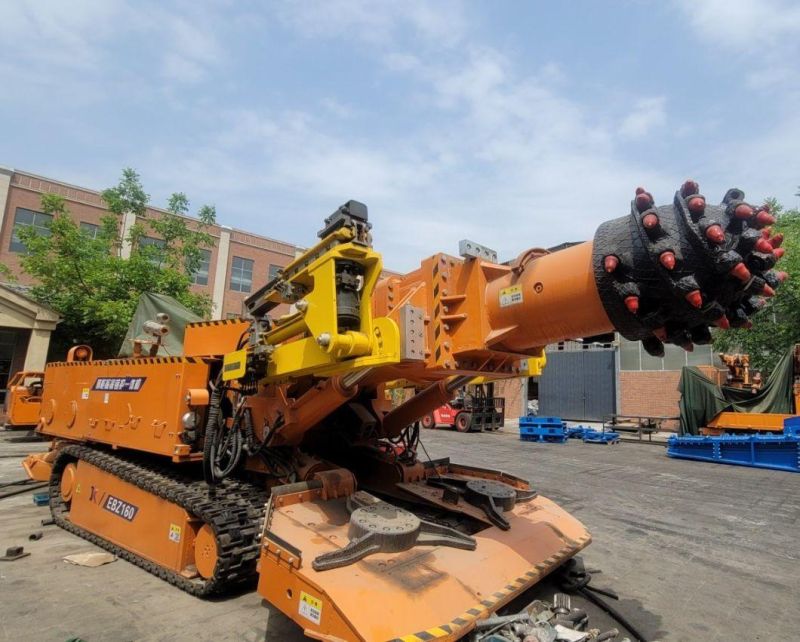

Intelligent roadheader is a multi-functional roadheader with intelligent digging and anchoring protection;
