• Model NO.：HF150W
• Drill Hole Diameter：90-130mm
• Drill Hole Depth：130m
• Bit Type：Diamond Bit
• Drilling Way：Mobile Gyrator
• Type：Rotary Drilling Rig
• Drilling Depth：130m
• Drilling Diameter：90-130mm
• Max Working Pressure：1.8MPa
• Mining Object：Water Well, Geothermal Heating
• Drill Pipe Length：2.00 Meter
• Drill System Operation：Hydraulic
• Usage：Water Well
• Power Type：Diesel
• Transport Package：Conventional Packing
• Specification：CE, ISO
• Trademark：HF
• Origin：Zhengzhou City
• HS Code：843041
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. HF150W Drill Hole Diameter 90-130mm Drill Hole Depth 130m Bit Type Diamond Bit Drilling Way Mobile Gyrator Type Rotary Drilling Rig Drilling Depth 130m Drilling Diameter 90-130mm Max Working Pressure 1.8MPa Mining Object Water Well, Geothermal Heating Drill Pipe Length 2.00 Meter Drill System Operation Hydraulic Usage Water Well Power Type Diesel Transport Package Conventional Packing Specification CE, ISO Trademark HF Origin Zhengzhou City HS Code 843041 Production Capacity 30 Sets Per Month

Product Description

Product Description

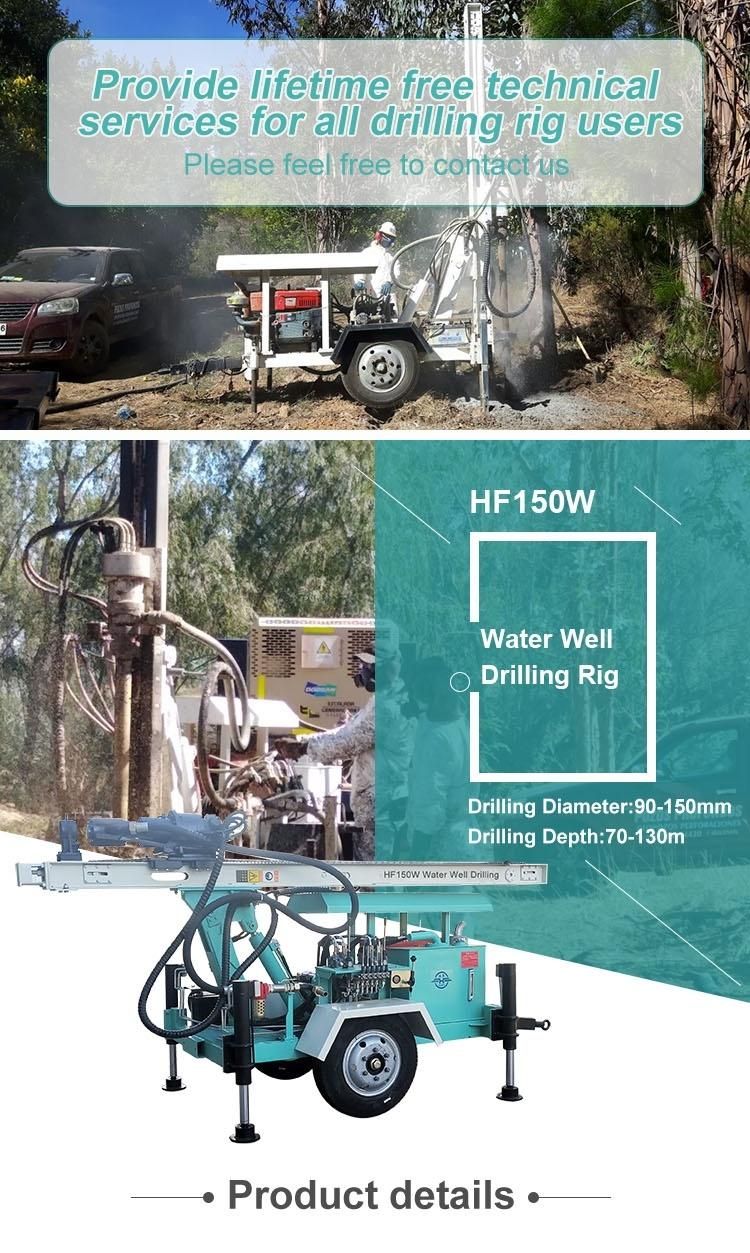

HF150W trailer type water well drilling rig is a moveable, efficient and multipurpose rock drilling equipment. It has rotary drilling mode and percussive drilling mode with high-pressure air, foam and mud according to different geological conditions.

Application

It is widely used in Industrial & Agricultural Water Conservancy Engineering. It can drill rock well, monitoring well and exploration well, especially apply to drilling geothermal heating hole. It also can satisfy the project demands of engineering foundation reinforcement, pipe-following drilling on loose gravel stratum, cornerstone drilling and etc.


Technical Data

Description	HF120W
Geology drilled	All kinds
Drill depth	0-120 m
Drilling Diameter	90 -140mm
Drill system and operation	Hydraulic
DRILL PIPE
Drill pipe length	2.00 meter
Drill pipe diameter	60/76 mm
MUD PUMP
Flow capacity	200 liter/min
Max. working pressure	1.8MPA
HYDRAULIC SYSTEM
Hydraulic tank capacity	140 liter
DIMENSIONS
Overall length	3200 mm
Overall width	1400 mm
Overall height	1500 mm

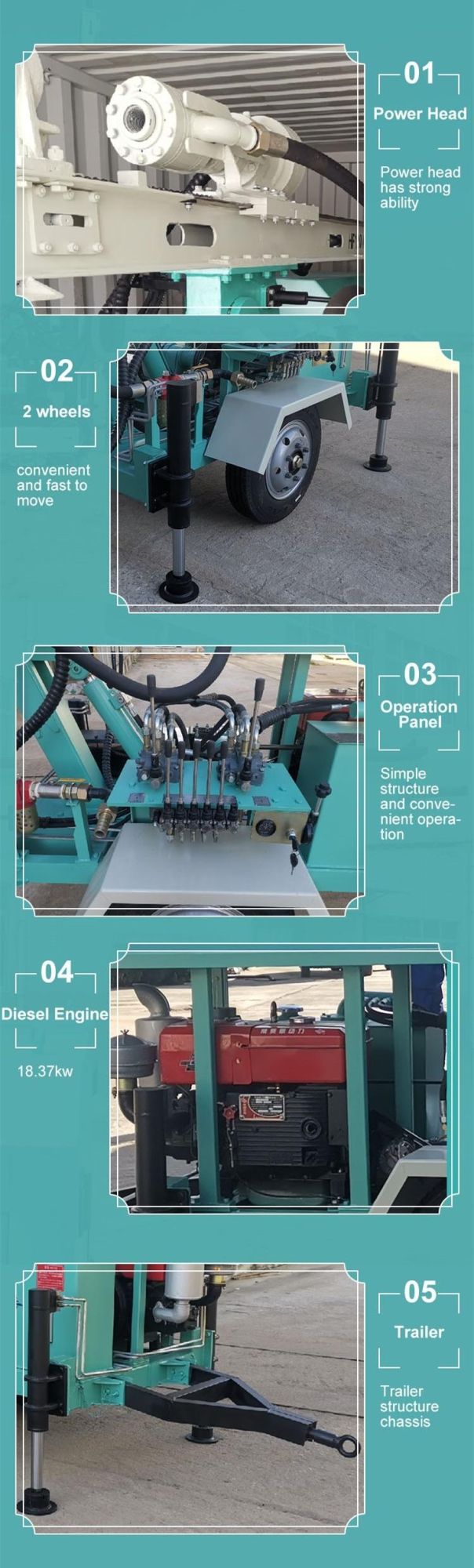

Diesel engine
Power	16.2KW

Company Introduction

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.

1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.



FAQ
1, Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
