Large-Diameter Agricultural Rural Irrigation Well Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：>300mm

Base Info

  • Model NO.：100m
  • Drill Hole Depth：100-150m
  • Bit Type：Cone Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Chassis：Crawler
  • Max. Drilling Depth：180m
  • Drilling Diameter：2m
  • Color：Customized
  • Transport Package：FCL
  • Specification：3.2*1.6*2.5m
  • Trademark：HW
  • Origin：China
  • HS Code：8430419000
  • Production Capacity：500set,Year

Description

Model

HWZ-120

HWZ-135

HWZ-155

HWZ-175

HWZ-200

Transportation Size(m)

3.2*1.6*2.5

3.2*1.6*2.5

3.2*1.6*2.5

3.2*1.6*2.5

3.2*1.6*2.5

Working Size(m)

3.2*1.6*5.5

3.2*1.6*5.5

3.2*1.6*5.5

3.2*1.6*5.5

3.2*1.6*5.5

Engine Power(Hp)

12

12

12

12

15

Working torque(Kn)

20

25

30

35

45

Drilling diameter(Cm)

10-60

10-80

10-90

10-100

10-100

Drilling depth(m)

130

130

130

150

180

Motor power(Kw)

5.5/5.5

7.5/5.5

11/5.5

15/7.5

18.5/7.5

Voltage(V)

380

380

380

380

380

Machine weight(Kg)

2200

2300

2400

2500

3000

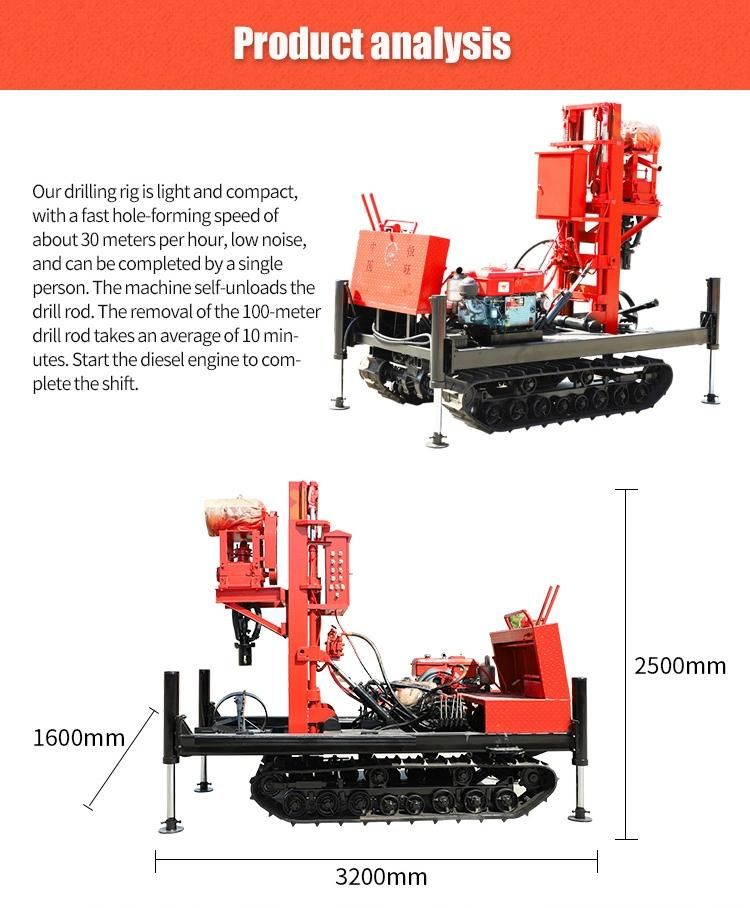

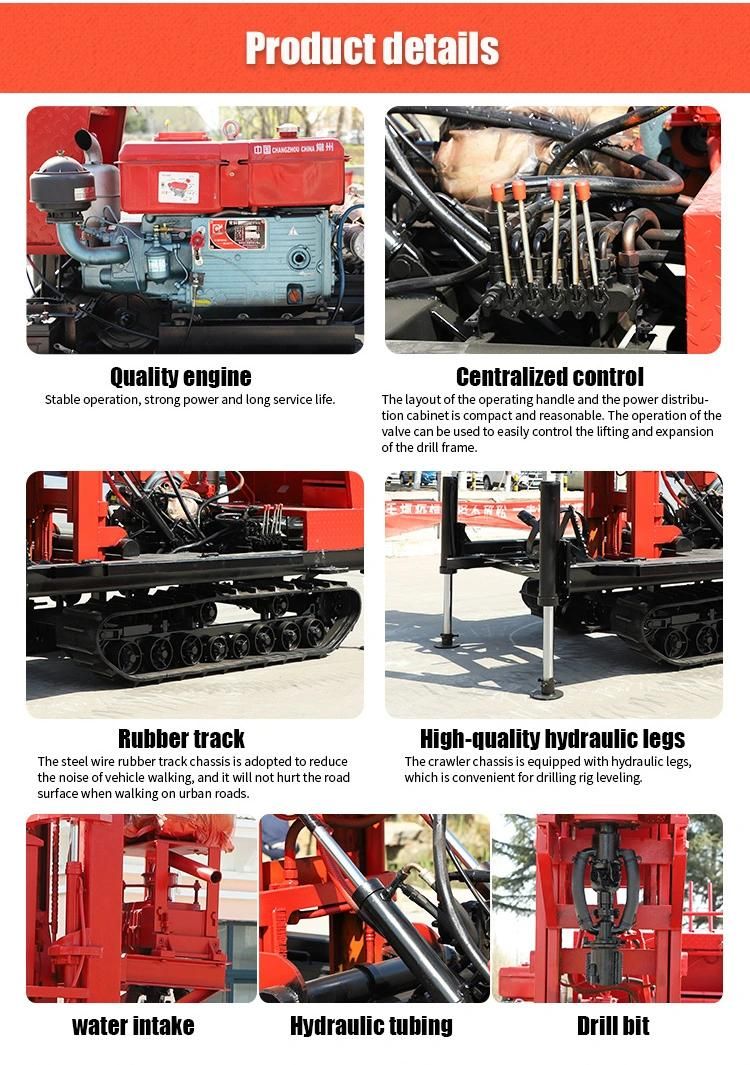

Positive Circulation Large Diameter Hydraulic Water Well Drill Rig



Details:
Positive Circulation Large Diameter Hydraulic Water Well Drill RigPositive Circulation Large Diameter Hydraulic Water Well Drill Rig
