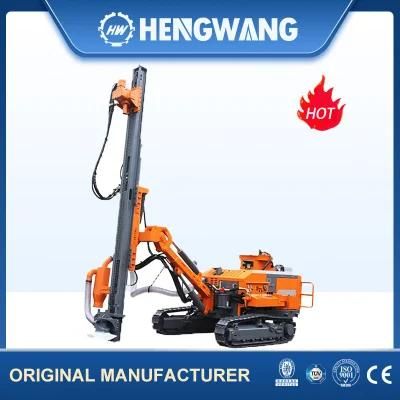

Crawler Separated DTH Surface Mine Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：Yuchai
- Drill Hole Diameter：110 -138 mm
Base Info
- Model NO.：HW425
- Drill Hole Depth：30 M
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Model：Hw425
- Power：Yuchaiyc4dk-80
- Rated Power：58 Kw
- Hole Depth：30 M
- Drill Pipe Sizes：76 X 3,000 mm
- Hole Dia：110 -138 mm
- Hammer：4",5"
- Rotation Torque(Max.)：3,200 N.M
- Rotation Speed：0 -100 Rpm
- Working Pressure：0.7-2.5MPa
- Length of Feed Beam：5,645 mm
- Feed Travel Length：3,660 mm
- Feed Extension：960 mm
- Feed Speed：26 M,Min
- Feed Force：20 Kn
- Specification：7, 000 X 2, 250 X 2, 700mm
- Trademark：HW
- Origin：China
- Production Capacity：100PCS ,Month
Description
Transportation Dimensions
7,000 X 2,250 X 2,700mm

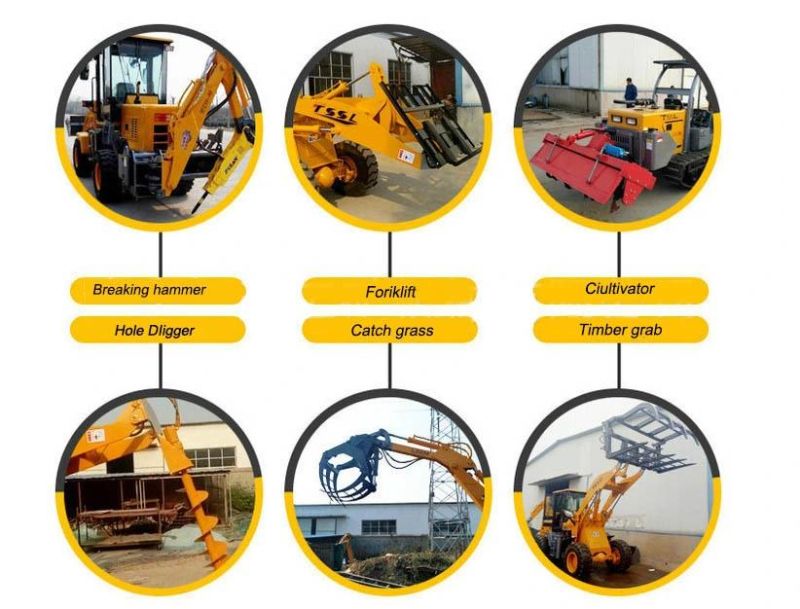

Multifunctional Accessories
