Factory Borehole Drilling Machine /Water Well Drilling Rig for Sale
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：ISO 9001:2000
- Condition：New
- Motor：Diesel
- Drill Hole Diameter：150-200mm
- Drill Hole Depth：150-200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HW230
- Drilling Way：Mobile Gyrator
- Type：Diesel
- Transport Package：Wooden Case
- Specification：160m depth
- Trademark：hengwang
- Origin：Shandong
- HS Code：8430419000
- Production Capacity：10000pieces,Year
Description
Drilling depth
230m
Maximum borehole caliber
300mm
Minimum borehole caliber
75mm
Diameter of Drill pipe
42/50/60mm
Drilling angle
90°~75°
Weight(Not include power)
1150kg
Unity machine dimension
2750*950*1770mm
2.Vertical Spindle
Spindle rotating speed
64/128/287/557r/min
Spindle stroke
450mm

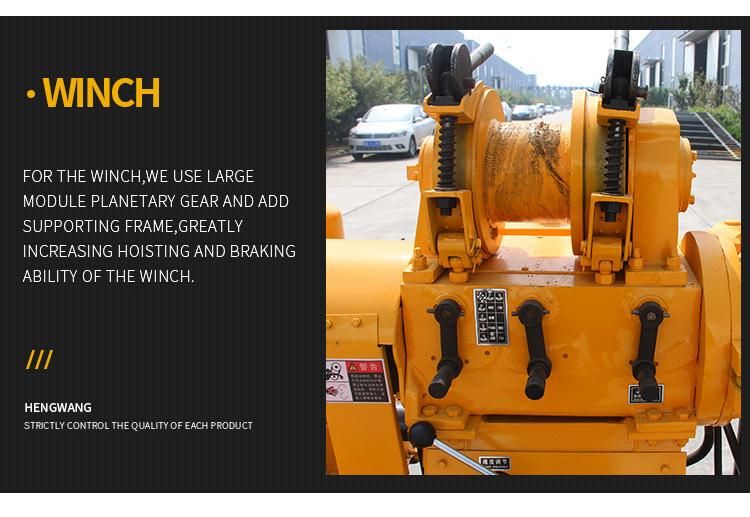

3.Hoist
Max. single line lifting capacity
2400kg
Reel lifting speed
1.64m/s
Steel wire rope diameter
13mm
Steel wire rope capacity
35m
Hug floodgate diameter
245mm
Hug floodgate belt width
70mm
Movable distance
400mm
4. Mud pump
Type
BW-160
Type
Horizontal Single Cylinder with double function
Max. Discharge
Diesel engine 170L/min
Electrical Motor 140L/min
Max. Pressure
3MPa
Work Pressure
1.5MPa
5. Power

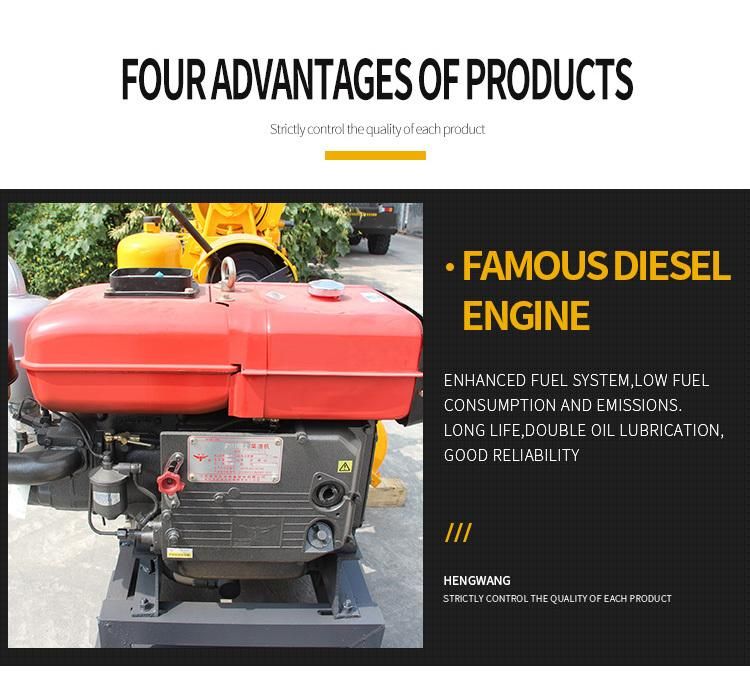

Diesel engine
22HP
Electric Motor
15KW
6. Drilling tower
Type
Integrated on drilling rig

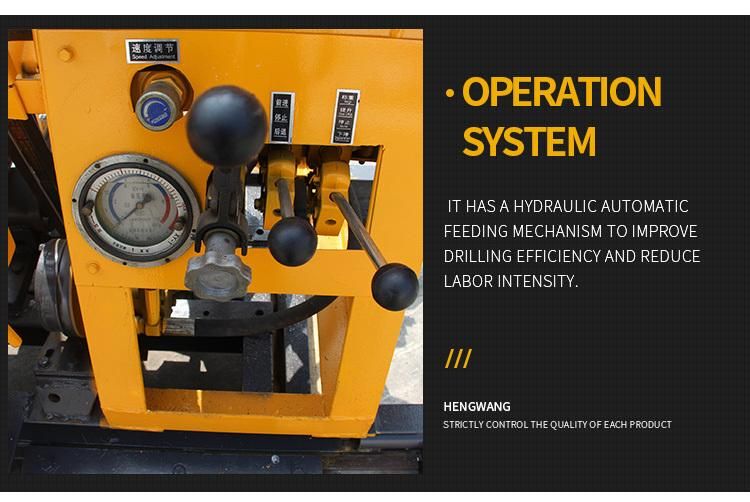

Control system
Hydraulic
