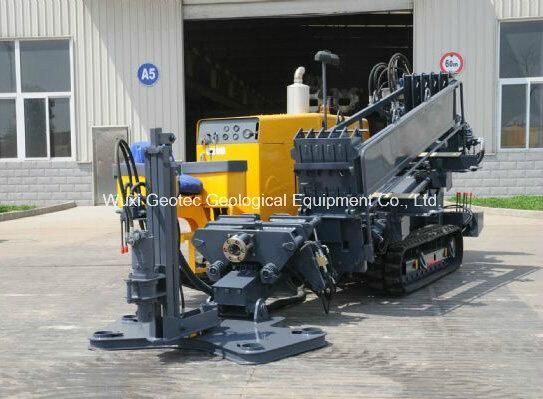

HDD Drill Rig (XZ180)

Wuxi Geotec Geological Equipment Co., Ltd.
  • Type：Drill
  • Condition：New
  • Engine Model：Commins
  • Rating of Engine：97kw
  • Push and Pull Mode：Motor
  • Maximum Pull Back/Entering Strength：180,180kn

Base Info

  • Model NO.：XZ180
  • Certification：ISO 9001:2008, ISO 9001:2000
  • Trademark：CROWN
  • Origin：China

Description

Basic Info.

Model NO. XZ180 Certification ISO 9001:2008, ISO 9001:2000 Trademark CROWN Origin China

Product Description

Model: XZ180
Engine Model: Commins
Rating of engine: 97kW
Push and pull mode: Motor
Maximum pull back/entering strength: 180/180kN
Power head maximum torque: 6000N. M
Power head rotation speed: 0-140r/min
Power head speed: 20 m/min
Maximum diameter of hole: Φ 600mm
Length of drill pipe (single pipe): 3m
Drill rod caliber: Φ 60mm
Penetration angle: 10-22°
Maximum flow of mud: 250L/min
Mud pressure: 80bar
Weight: 1000kg
Dimensions (length * width * height): 6400× 2270× 2340mm
