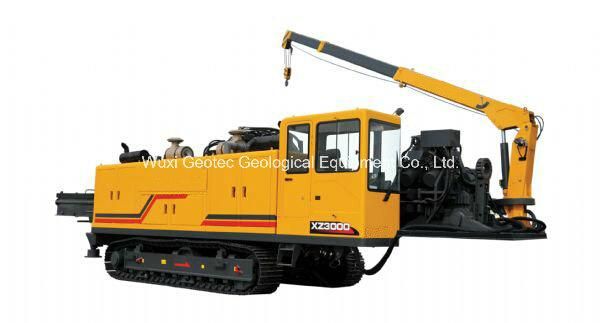

HDD Drilling Rig (XZ3000)

Wuxi Geotec Geological Equipment Co., Ltd.
  • Type：Drill
  • Condition：New
  • Engine Model：Commins
  • Rating of Engine：100kw
  • Push and Pull Mode：Pinion and Rack
  • Maximum Pull Back/Entering Strength：3000,3000kn

Base Info

  • Model NO.：XZ3000
  • Certification：ISO 9001:2008, ISO 9001:2000
  • Trademark：CROWN
  • Origin：China

Description

Basic Info.

Model NO. XZ3000 Certification ISO 9001:2008, ISO 9001:2000 Trademark CROWN Origin China

Product Description

Model: XZ3000
Engine Model: Commins
Rating of engine: 100kW
Push and pull mode: Pinion and rack
Maximum pull back/entering strength: 3000/3000kN
Power head maximum torque: 110000N. M
Power head rotation speed: 0-76r/min
Power head speed: 18m/min
Maximum diameter of hole: Φ 1600mm
Length of drill pipe (single pipe): 9.6m
Drill rod caliber: Φ 127mm, Φ 140mm
Penetration angle: 8-18°
Maximum flow of mud: 2000L/min
Mud pressure: 200bar
Weight: 55000kg
Dimensions (length * width * height): 17000× 3300× 3600mm
HDD Drilling Rig (XZ3000)HDD Drilling Rig (XZ3000)
