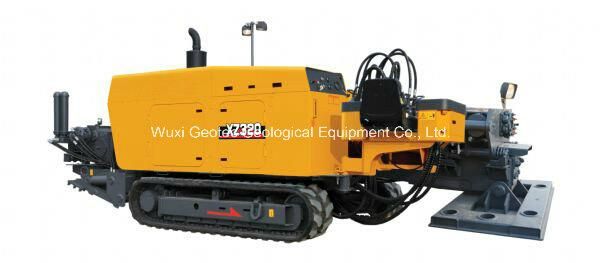

HDD Drilling Rig (XZ320)

Wuxi Geotec Geological Equipment Co., Ltd.
  • Type：Drill
  • Condition：New
  • Engine Model：Chai,Commins
  • Rating of Engine：140kw,160kw
  • Push and Pull Mode：Oil Cylinder
  • Maximum Pull Back/Entering Strength：320,200kn

Base Info

  • Model NO.：XZ320
  • Certification：ISO 9001:2008, ISO 9001:2000
  • Trademark：CROWN
  • Origin：China

Description

Basic Info.

Model NO. XZ320 Certification ISO 9001:2008, ISO 9001:2000 Trademark CROWN Origin China

Product Description

Model: XZ320
Engine Model: Chai/commins
Rating of engine: 140kW/160kW
Push and pull mode: Oil cylinder
Maximum pull back/entering strength: 320/200kN
Power head maximum torque: 12000N. M
Power head rotation speed: 0-140r/min
Power head speed: 20 m/min
Maximum diameter of hole: Φ 600mm
Length of drill pipe (single pipe): 3m
Drill rod caliber: Φ 73mm
Penetration angle: 10-20°
Maximum flow of mud: 320L/min
Mud pressure: 80bar
Weight: 10500kg
Dimensions (length * width * height): 7100× 2250× 2450mmHDD Drilling Rig (XZ320)
