Handheld Portable Backpack Core Sample Drilling Rigs

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：200-250mm
  • Drill Hole Depth：150-200m
  • Bit Type：Cone Bit
  • Drilling Way：Impactor

Base Info

  • Model NO.：HWZG
  • Type：Crawler
  • Model Number：Hw-30
  • The Highest Drill Speed：1780 Rpm
  • Drill Depth：10-30m
  • Drill Rod Length：600 mm
  • Movel Way：on The Bagpack
  • Material：Metal
  • Drilling Diameters：25,42 mm
  • Maximum Torque：11 Nm
  • Drill Power(Running at Full Speed)：1.79 Kw
  • Drilling Machine Weight：20 Kgs
  • Transport Package：Wooden Case
  • Specification：CE, SGS
  • Trademark：HW
  • Origin：Shandong, China
  • HS Code：8430390000
  • Production Capacity：3500 Sets,Year

Description

Drilling depth5/10/15/20 mDrilling diameters25/42 mmDrill rod length600 mmthe highest Drill speed1780 rpmMaximum torque11 NmDrill power(Running at full speed)1.79 KwDrilling machine weight20 KGS

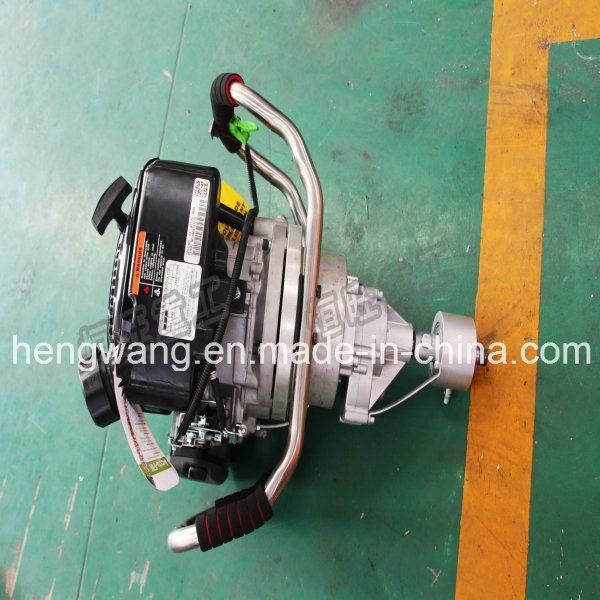

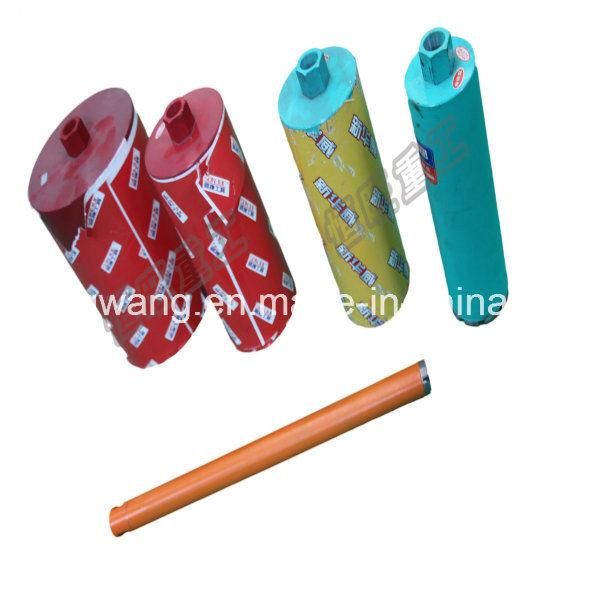

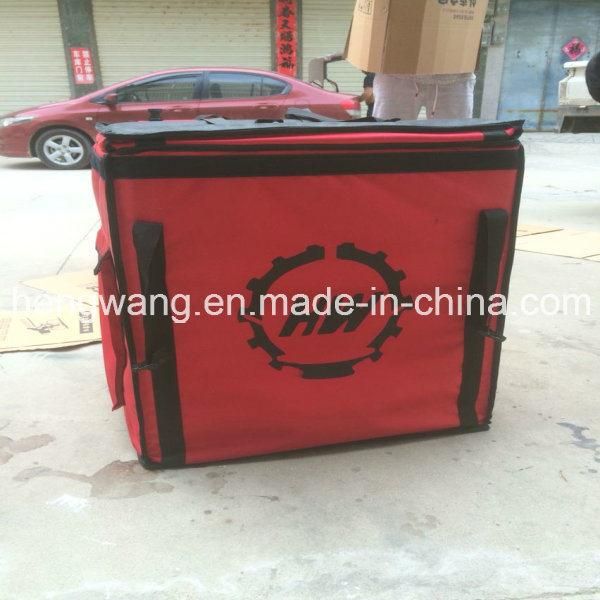

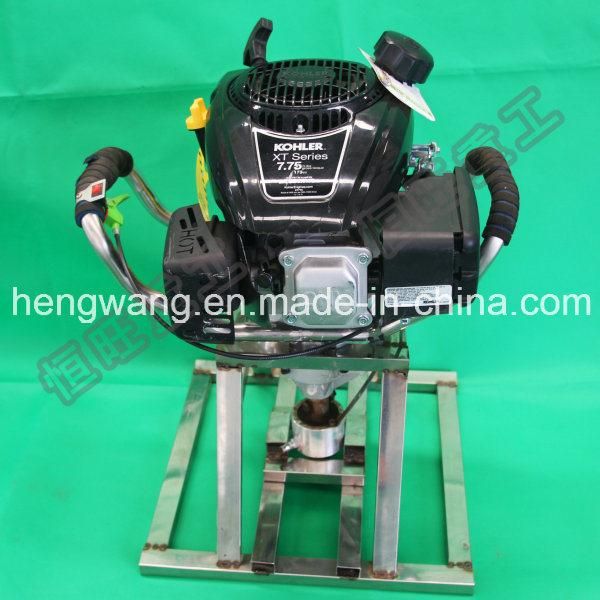

The real details photos
Handheld Portable Backpack Core Sample Drilling RigsHandheld Portable Backpack Core Sample Drilling RigsHandheld Portable Backpack Core Sample Drilling RigsHandheld Portable Backpack Core Sample Drilling RigsHandheld Portable Backpack Core Sample Drilling Rigs
