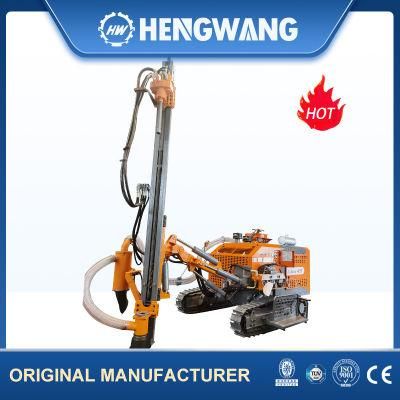

Small Blast Hole Pneumatic Mine Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：100-150mm
Base Info
- Model NO.：40m
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Name：Rocky Portable Drill Rig
- Transport Package：Container
- Specification：40M
- Trademark：Hengwang
- Origin：Shandong, China
- HS Code：8430390000
- Production Capacity：5000 Sets Per Month
Description
Main technical specifications
Power
Yuchai YC6J220 162 kW
Hole Depth
20m
Drill Pile Sizes
60 mmX3000 mm
Hole Dia
80-115mm
DTH Hammer
3.5"
Rotation Torque (Max.)
1650N.m
Rotation Speed
0-110 rpm
Working Pressure
14.5 bar
F.A.D
12 m3/min
Tramming Speed (Max.)
2/3 km/h Dual Speed
Gradient
30°
Track Frame Oscilation
±10°
Total Weight
6,800 kg
Transportation Dimensions
6,000X2,800X2,750 mm
Dry Dust Collector
Standard
Dual Speed Walking Motor
Standard
FAQQ:Are you manufacturer? A: Yes, we are factory with more than 20 years of manufacturing experience.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for anew one.And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE, IS09001.
