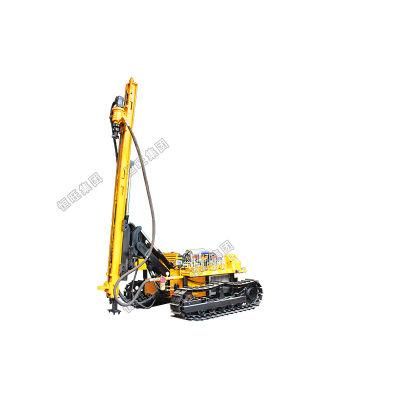

Open Use Down The Hole Hard Rock Blast Drill Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：Used
  • Motor：Diesel Engine
  • Drill Hole Diameter：90-138mm

Base Info

  • Model NO.：20m
  • Drill Hole Depth：20m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Model：Hw421t
  • Drilling Diameter：90-138mm
  • Drilling Depth：20m
  • Drill Pile Sizes：60 Mmx3000 mm
  • DTH Hammer：3.5"
  • Rotation Torque (Max.)：1650n.M
  • Rotation Speed：0-110 Rpm
  • Working Pressure：14.5 Bar
  • Transport Package：Container
  • Specification：6, 000X2, 800X2, 750 mm
  • Trademark：Hengwang
  • Origin：Shandong, China
  • Production Capacity：500 Sets Per Month

Description

Main technical specifications

Power

Yuchai YC6J220 162 kW

Hole Depth

20m

Drill Pile Sizes

60 mmX3000 mm

Hole Dia

80-115mm

DTH Hammer

3.5"

Rotation Torque (Max.)

1650N.m

Rotation Speed

0-110 rpm

Working Pressure

14.5 bar

F.A.D

12 m3/min

Tramming Speed (Max.)

2/3 km/h Dual Speed

Gradient

30°

Track Frame Oscilation

±10°

Total Weight

6,800 kg

Transportation Dimensions

6,000X2,800X2,750 mm

Dry Dust Collector

Standard

Dual Speed Walking Motor

Standard

Successful Project Packaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
