• Model NO.：Core Drilling Rig
• Drilling Way：Rotary
• Type：Core Drilling Rig
• Color：Optional
• Contition：New
• Warranty：One Year
• After-Sales Service Provided：Overseas Third-Party Support Available
• Mining Object：Coal Machinery
• Usage：Ore, Water Well, Coal
• Power Type：Diesel
• Transport Package：Wooden Box
• Specification：CE
• Trademark：GM
• Origin：China
• Production Capacity：1000,Year

Basic Info.

Model NO. Core Drilling Rig Drilling Way Rotary Type Core Drilling Rig Color Optional Contition New Warranty One Year After-Sales Service Provided Overseas Third-Party Support Available Mining Object Coal Machinery Usage Ore, Water Well, Coal Power Type Diesel Transport Package Wooden Box Specification CE Trademark GM Origin China Production Capacity 1000/Year

Product Description

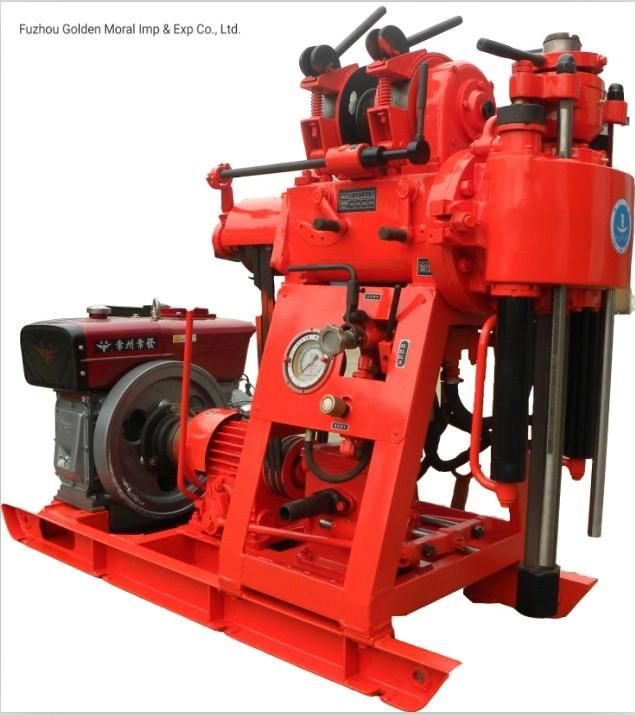

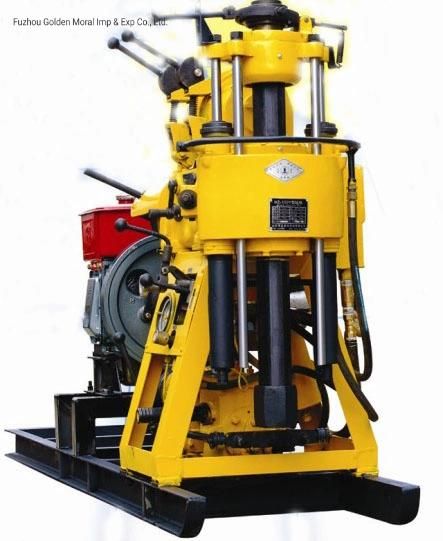

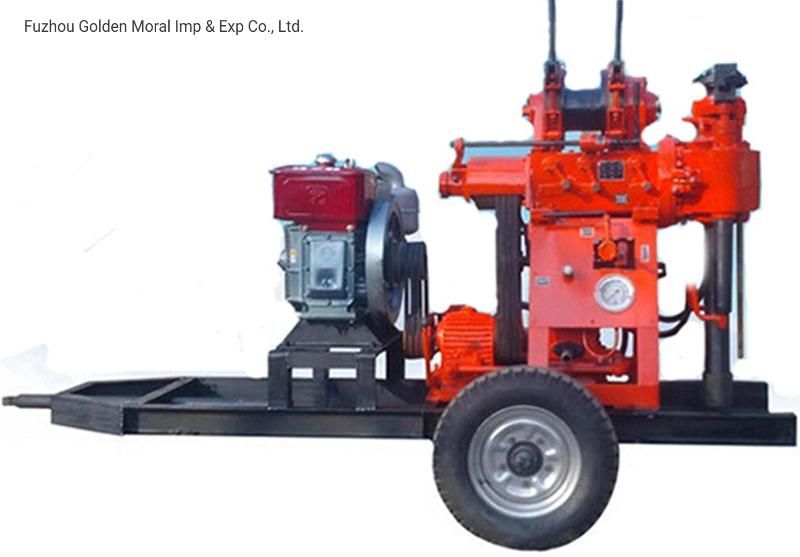

XY-150 core drilling rig for sale

Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.

With hydro-automatic feeding device, and high drilling efficiency. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.

Close levers, convenient to operate, safe and reliable operations.

Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.

Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
Model                                                           XY-150Y
Drilling depth                                                 150m
Maximum open hole diameter                         220mm
End hole caliber                                            75mm
Drill rod caliber                                               50mm
Drilling angle                                                90° ~75°
Drill weight(No include power)                         560kg
