50m Depth High Efficiency Down The Hole Hammer Drill Rig

Zhengzhou Lead Equipment Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：100-150mm
  • Drill Hole Depth：>50m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：LD165
  • Drilling Way：Rotary
  • Color：Customised
  • Warranty：1 Year
  • Price：Lower Than Other
  • Place of Origin：China (Mainland)
  • Transport Package：Standard Export Packing
  • Specification：ISO9001-2008&CE
  • Trademark：Leadcrete
  • Origin：Henan China
  • HS Code：84303900
  • Production Capacity：1000 Sets,Year

Description

Basic Info.

Model NO. LD165 Drilling Way Rotary Color Customised Warranty 1 Year Price Lower Than Other Place of Origin China (Mainland) Transport Package Standard Export Packing Specification ISO9001-2008&CE Trademark Leadcrete Origin Henan China HS Code 84303900 Production Capacity 1000 Sets/Year

Product Description

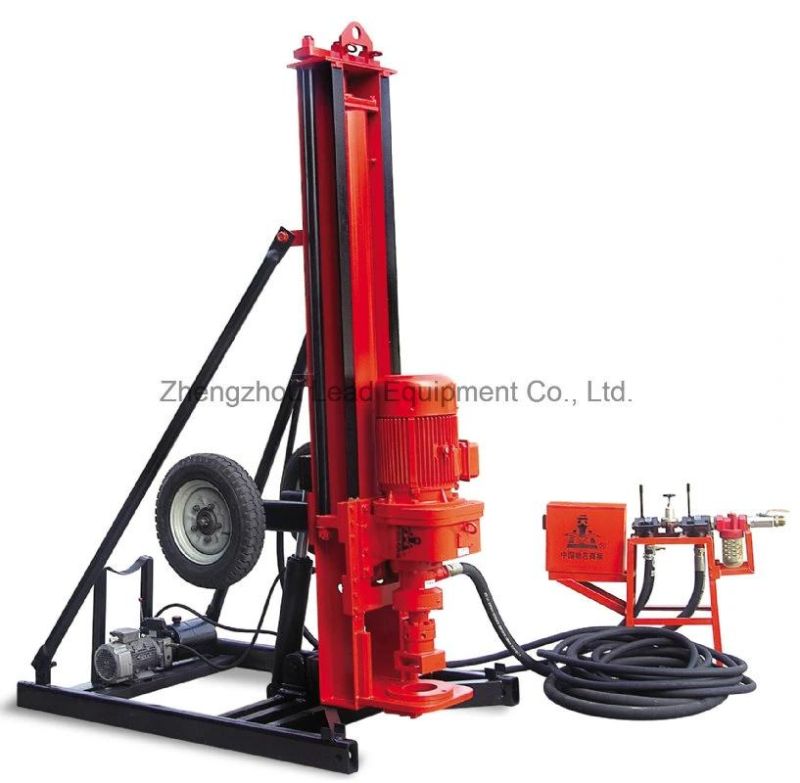

LD165 50m depth high efficiency down the hole hammer drill rig

Feature:
LD165 high efficiency down the hole hammer drill rig is a convenient compact electric down-the-hole(DTH) drill, it has many advantages, such as high efficiency, flexible movement, easy operation, low initial investment, and good economic benefits and so on.

Technical data:
modelLD165
bore diameter (mm)90-150
bore depth (m)>50
rock hardnessf=6-20
drill rod (mm)76*1500
pressure (mpa)0.7-1.4
air consumption (m³ /min)>12
rotating speed (r/min)0-60rpm
max. lifting force (N)12000
Motor power(kw)11
