Rock Blasting DTH Drilling Rig for Quarry
Zhengzhou Lead Equipment Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：100-150mm
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
Base Info
- Model NO.：LD155B
- Drilling Way：Rotary
- Color：Customised
- Warranty：1 Year
- Price：Lower Than Other
- Place of Origin：China (Mainland)
- Transport Package：Standard Export Packing
- Specification：ISO9001-2008&CE
- Trademark：Leadcrete
- Origin：Henan China
- HS Code：84303900
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. LD155B Drilling Way Rotary Color Customised Warranty 1 Year Price Lower Than Other Place of Origin China (Mainland) Transport Package Standard Export Packing Specification ISO9001-2008&CE Trademark Leadcrete Origin Henan China HS Code 84303900 Production Capacity 1000 Sets/YearProduct Description

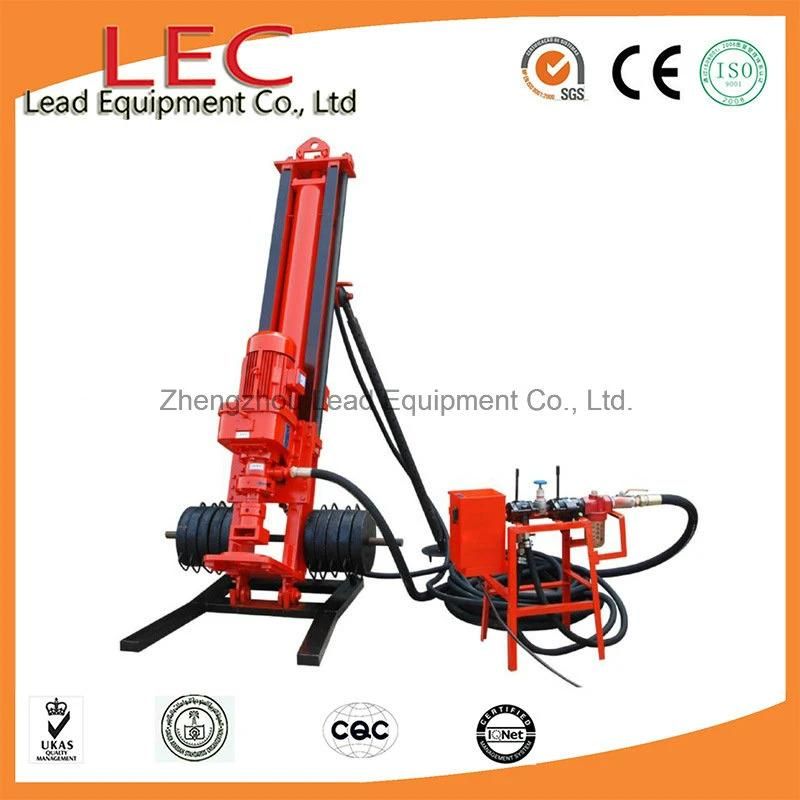

LD155B rock blasting DTH drilling rig for quarry
Feature:
LD155B rock blasting DTH drilling rig is a convenient compact electric down-the-hole(DTH) drill, it has many advantages, such as high efficiency, flexible movement, easy operation, low initial investment, and good economic benefits and so on.
Technical data:
| model | LD155B |
| bore diameter (mm) | 90-130 |
| bore depth (m) | >50 |
| rock hardness | f=6-20 |
| drill rod (mm) | 76*1500 |
| pressure (mpa) | 0.7-1.4 |
| air consumption (m³ /min) | >12 |
| rotating speed (r/min) | 0-60rpm |
| max. lifting force (N) | 12000 |
| Motor power(kw) | 7.5 |
