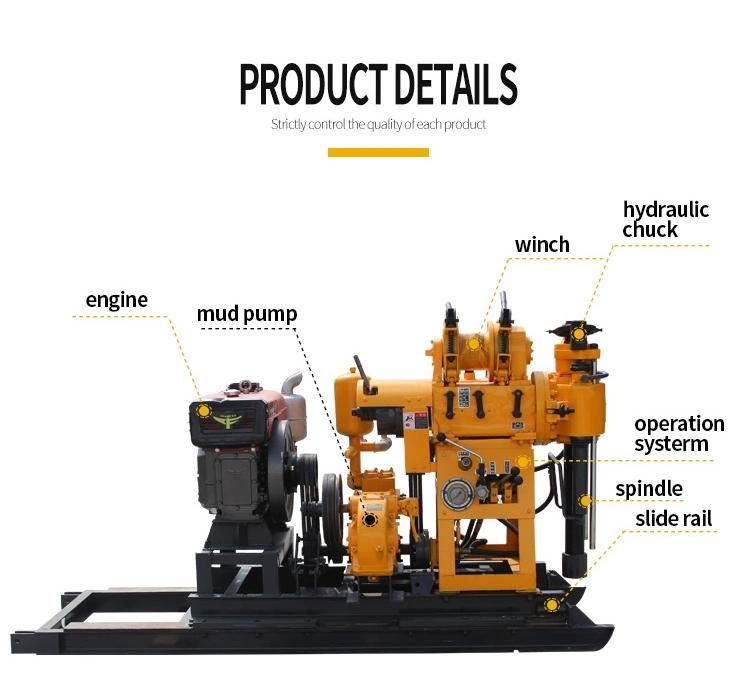

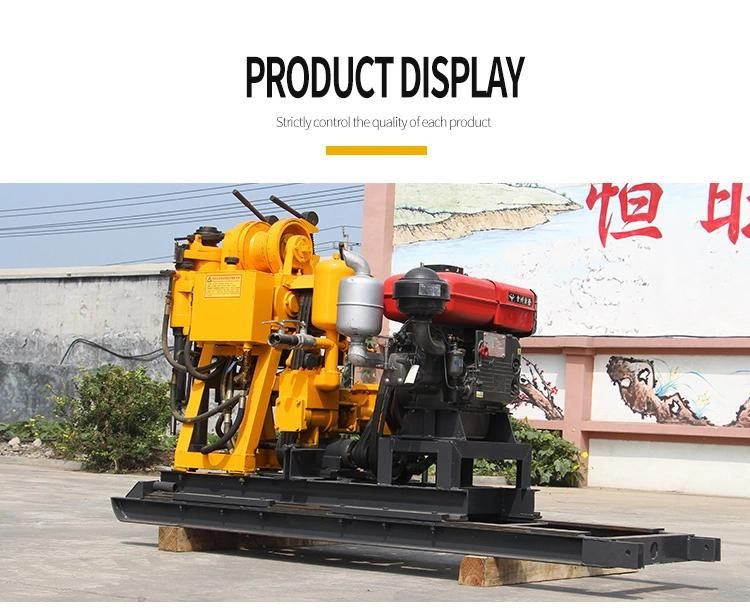

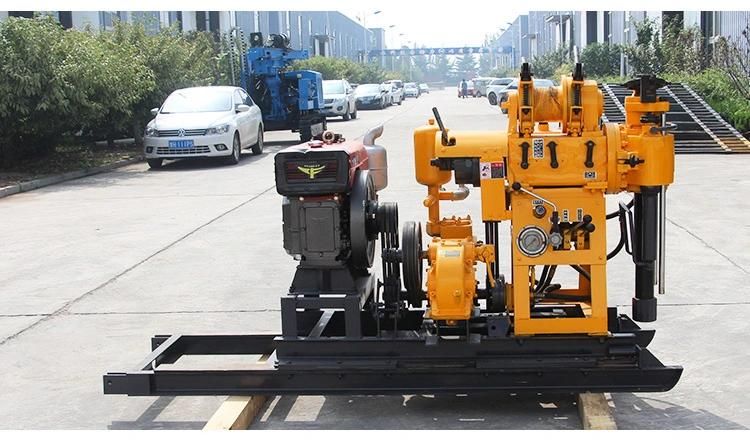

Portable Borehole Small Water Well Drilling Machine Geological Exploration Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：100-150mm
- Drill Hole Depth：100-150m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HW
- Drilling Way：Mobile Gyrator
- Type：Core Drilling Rig
- Part Name：Water Well Drilling Rig
- Drilling Depth：160m
- Maximum Open Hole Caliber：260mm
- End Hole Caliber：75mm
- Drill Rod Caliber：50mm
- Drilling Angle：90~75
- Diesle Engine Power：18 HP
- Usage：Coal, Water Well
- Power Type：Diesel
- Transport Package：Wooden Case
- Specification：SGS
- Trademark：HW
- Origin：Shandong, China
- HS Code：8430412100
- Production Capacity：1000-2000 Sets,Month
Description
Mud pump
Type
Horizontal single urn twin-action
Displacement
95/77L/min
Diesle engine
Model s1110 18HP
Electric motor
Y160M-4 11kw 1440r/min
Maximum pressure
1.2Mpa
Work pressure
0.7Mpa
Water inlet caliber
30mm
Water to exit caliber
25mm
Triangle conveyor belt
B1575mm
