• Model NO.：HWZG
• Drilling Way：Rotary
• Type：portable
• Model Number：Hw-30
• The Highest Drill Speed：1780 Rpm
• Drill Depth：10-30m
• Drill Rod Length：600 mm
• Movel Way：on The Bagpack
• Material：Metal
• Drilling Diameters：25,42 mm
• Maximum Torque：11 Nm
• Drill Power(Running at Full Speed)：7.5HP
• Drilling Machine Weight：20 Kgs
• Transport Package：Wooden Case
• Specification：CE, SGS
• Trademark：HW
• Origin：Shandong, China
• HS Code：8430390000
• Production Capacity：3500 Sets,Year

Basic Info.

Model NO. HWZG Drilling Way Rotary Type portable Model Number Hw-30 The Highest Drill Speed 1780 Rpm Drill Depth 10-30m Drill Rod Length 600 mm Movel Way on The Bagpack Material Metal Drilling Diameters 25/42 mm Maximum Torque 11 Nm Drill Power(Running at Full Speed) 7.5HP Drilling Machine Weight 20 Kgs Transport Package Wooden Case Specification CE, SGS Trademark HW Origin Shandong, China HS Code 8430390000 Production Capacity 3500 Sets/Year

Product Description

Factory Sales 30m Depth Drilling Bagpack Protable Drill Rig



Production Features

HW30 portable sampling drill is a kind of full-automatic sampling drill which combines various drill features and is improved all the time. The power source of the drill is gasoline engine, its rewinding is driven by hydraulic pressure, then the cylinder adds pressure to satisfy large range of load change and reliable running.

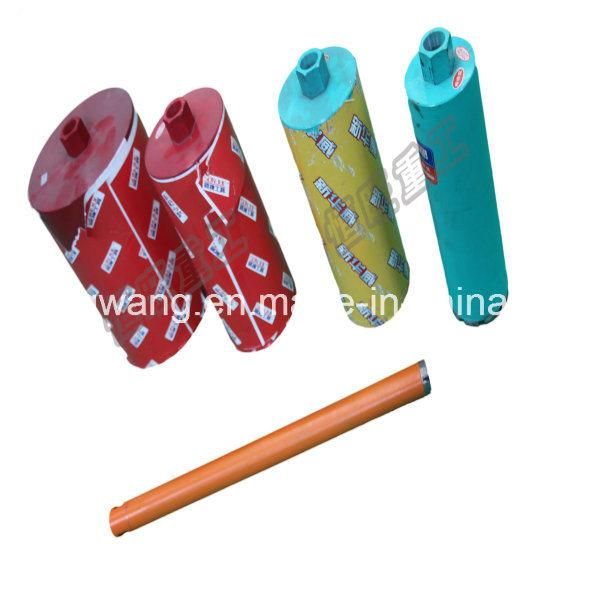

According to various geological conditions, you can choose diamond, alloy or steel particles drilling bit for drilling. You can also practice drill pile feeding as non-stop then the efficiency will be high. Centralized handles make operation easy. Compact structure, small volume, light weight, easy to disassemble and move lets it fit to work in flat and mountain areas. Its reliable function, complete coring and flexible operation are fit for field work, then improve the efficiency and decrease the sampling cost, which has reached international advanced grade.
Applications

HW30 portable sampling drill is mainly used in drilling and borehole sampling projects like geochemical prospecting &sampling, areal geological mapping, ore vein survey in shallow surface and sap, geophysical prospecting epicenter hole construction, geotechnical engineering and so on.
Main features

(1)Employ gasoline engine as power, fit for sampling & drilling as no power outside

(2)Rewinding driven by hydraulic pressure, meet loading change in a large range, reliable running

(3)Smart and light, good disorganization, move easily, fit for wild field long distance traveling

(4)Simple operation, easy to study and master, practical and reliable.

Technical Parameters
Model:   HW-B30
Drilling diameter:40-108mm
Max drilling depth:30m
Application of rock types:G10
Speed:2200r/min
Water consumption:14.4L/H
Power:173cc 7.5hp
Drill pipe length:720mm
Wight:23KG

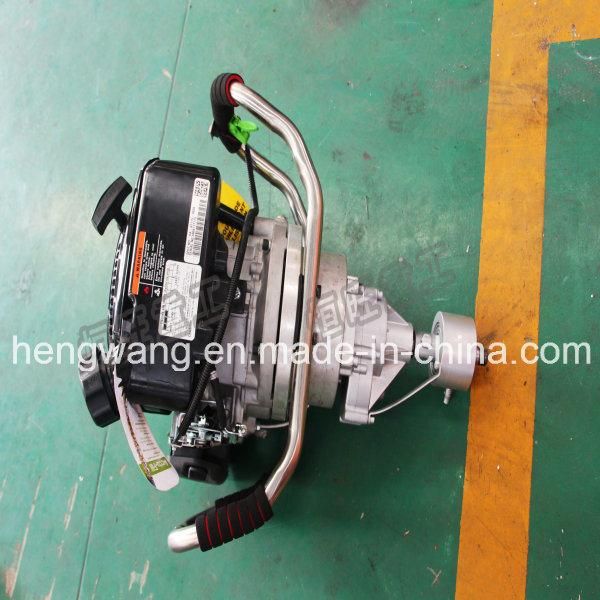

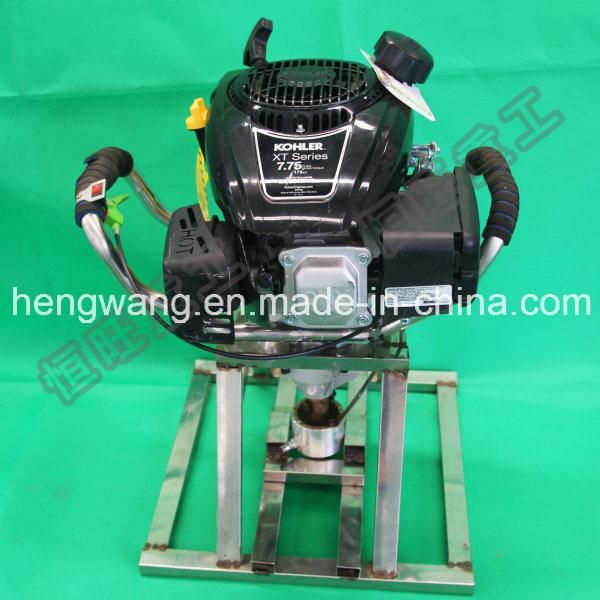

The real details photos
